Communicating motor mechanism module MTc 100/160, ComPacT NSX100/160, 220/240VAC 50/60Hz

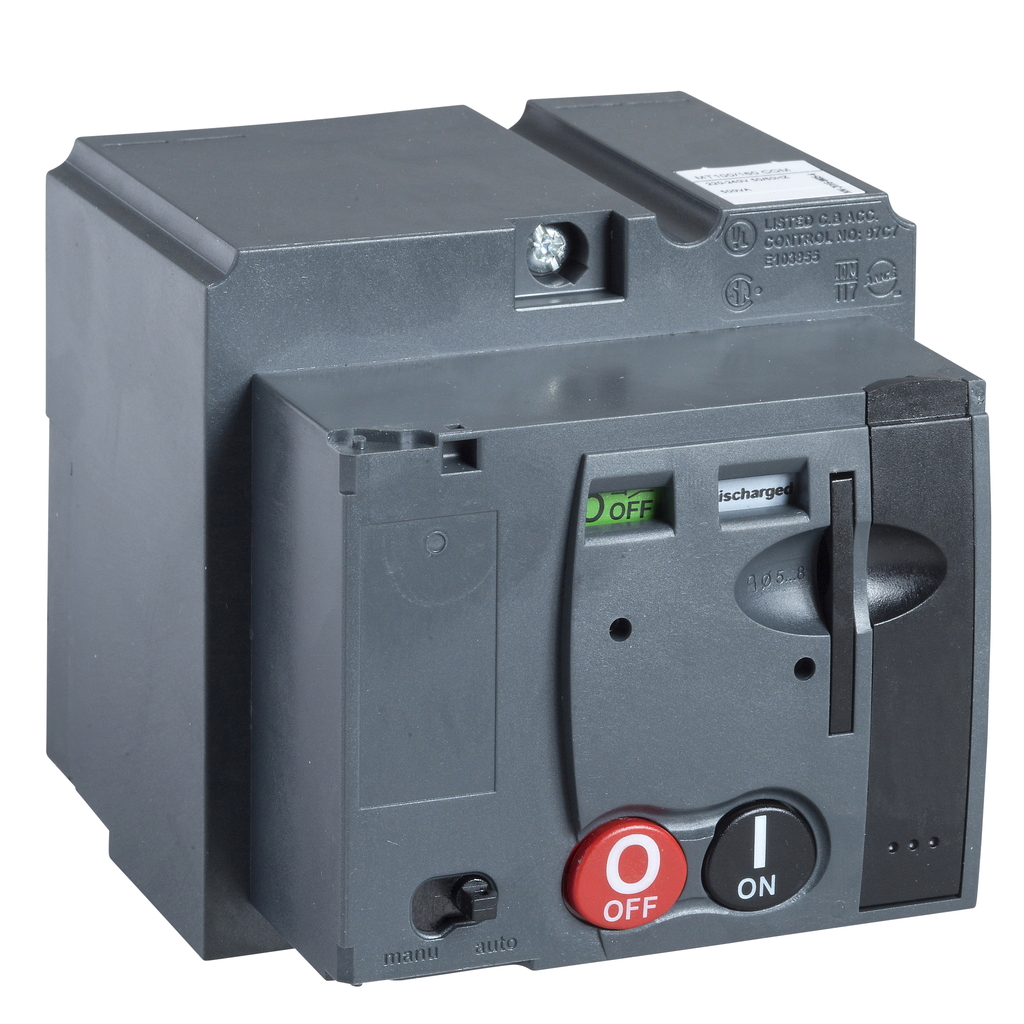

This is a communicating motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. This communicating motor mechanism can receive external opening and closing orders. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this communicating motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. The communicating motor mechanism is supplied with SDE adapter.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308038EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2308038EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | France |
| [Uc] Control Circuit Voltage | 220...240 V AC 50/60 Hz |
| Range Compatibility |
|
| Product Or Component Type | motor mechanism |
| Control Type | communicating |
| Mounting Mode | fixed |
| Line Rated Current |
|
| Device Application | automatic spring charging |
| Device Short Name | MT250 |
| Locking Options Description |
|
| Response Time |
|
| Control Signal Type |
|
| Provided Equipment | SDE adaptor |
| Maximum Operating Frequency | 4 per minute |
| Maximum Power Consumption In Va |
|
| Warranty | 18 months |
