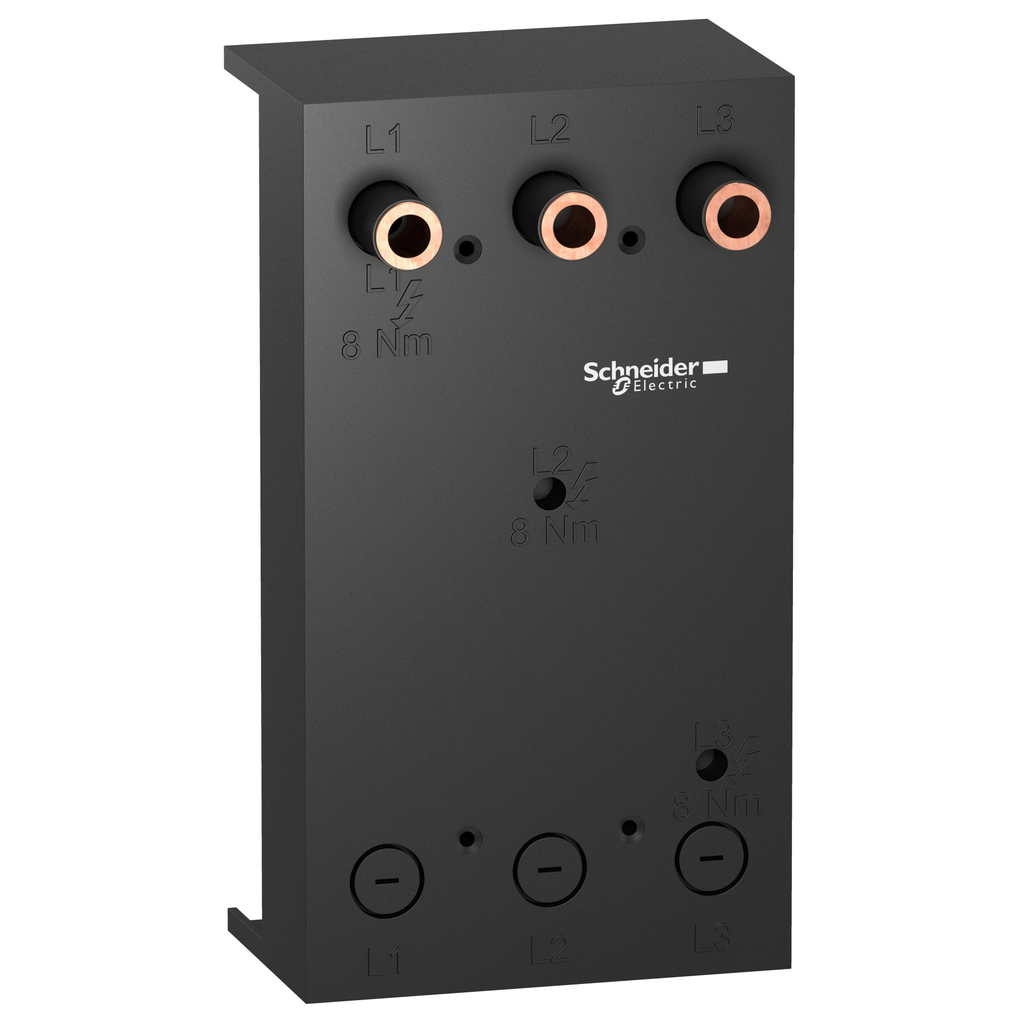

LV429372 - Mounting plate, Linergy BZ, Plate GV5/NSX 100-250 3P 106x192 IEC/UL for 60 Busbar Interaxis

LV429372

Mounting plate, Linergy BZ, Plate GV5/NSX 100-250 3P 106x192 IEC/UL for 60 Busbar Interaxis

The NSX mounting plate system for busbar simplifies the installation of NSX 100-250 circuit breaker. Power distribution is performed by a busbar. The mounting plate is fitted directly on the busbar, by snap-on-mounting. thus implementing mechanical and electrical connection. The busbar interaxis is 60 mm. This system offers numerous benefits as space saving in cabinets and easy connection. This system also offer fast, safe and reliable electrical and mechanical connection. This system also offer IP20 protection by using busbars and end covers. This system also offer easier maintenance and equipment flexibility and modularity.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
Busbar Pitch	60 mm
Height	190 mm
Permissible Current	200 A 12 x 5 mm 250 A 15 x 5 mm 250 A 20 x 5 mm 250 A 25 x 5 mm 250 A 30 x 5 mm 250 A 12 x 10 mm 250 A 20 x 10 mm 250 A 30 x 10 mm
[Ui] Rated Insulation Voltage	690 V
Poles Description	3P
Color	anthracite grey
Width	104 mm
Range Compatibility	Prisma G Prisma P Prisma PH Spacial TeSys ComPact
Depth	63 mm
Product Compatibility	GV7 PowerPact NJ NSX100...250
Country of Origin	Germany
Width	104 mm
Height	190 mm
Product Or Component Type	adaptors for busbar systems
Product Name	BZ
Range	Linergy
Number Of Ways	1 way
Device Short Name	LA9Z
Ip Degree Of Protection	IP20 IEC 60529

Mounting plate, Linergy BZ, Plate GV5/NSX 100-250 3P 106x192 IEC/UL for 60 Busbar Interaxis
