LV429330

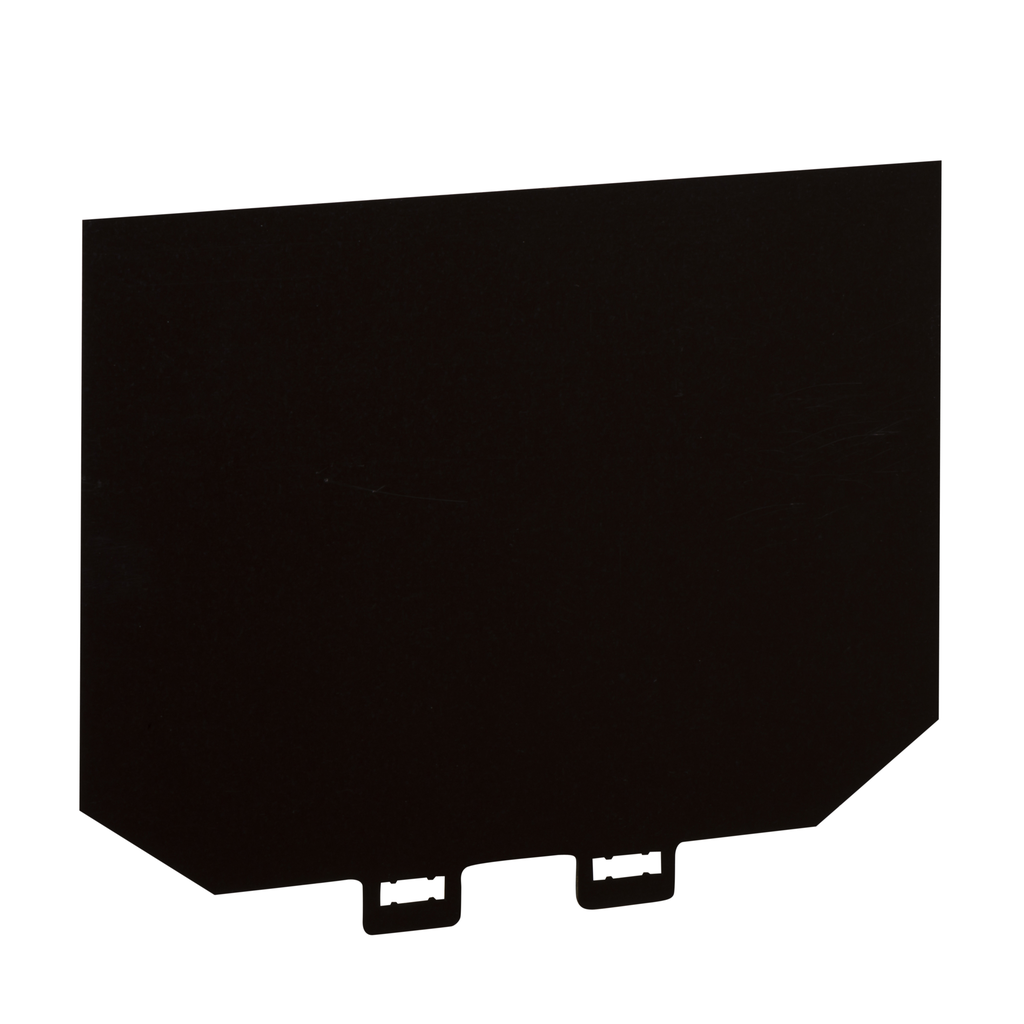

Rear insulation screens, ComPacT NSX100/160/250, 3 poles, pitch 45mm, set of 2 parts
This is an insulation accessory for Compact NSX 100/160/250 or EasyPact CVS 100/160/250. They are mandatory for devices with spreaders, installed on backplates, when terminal shields are not used. The screen dimensions are 140mm x 105mm x 1mm. The pitch is 45mm. It is a set of 2 parts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Range Compatibility |
|
| Product Or Component Type | insulation screen |
| Poles Description | 3P |
| Quantity Per Set | set of 2 |
| Accessory / Separate Part Type | insulation accessories |
| Warranty | 18 months |
| Connection Pitch | 45 mm |
| Product Compatibility | circuit-breaker |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- ComPact NSX,TeSys GV5/GV6 - Insulating screen - Instruction Sheet - GHD1634401-04 (pdf)
- Spec Sheet
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - May 2024 - LVPED221001EN (pdf)
