LV429270

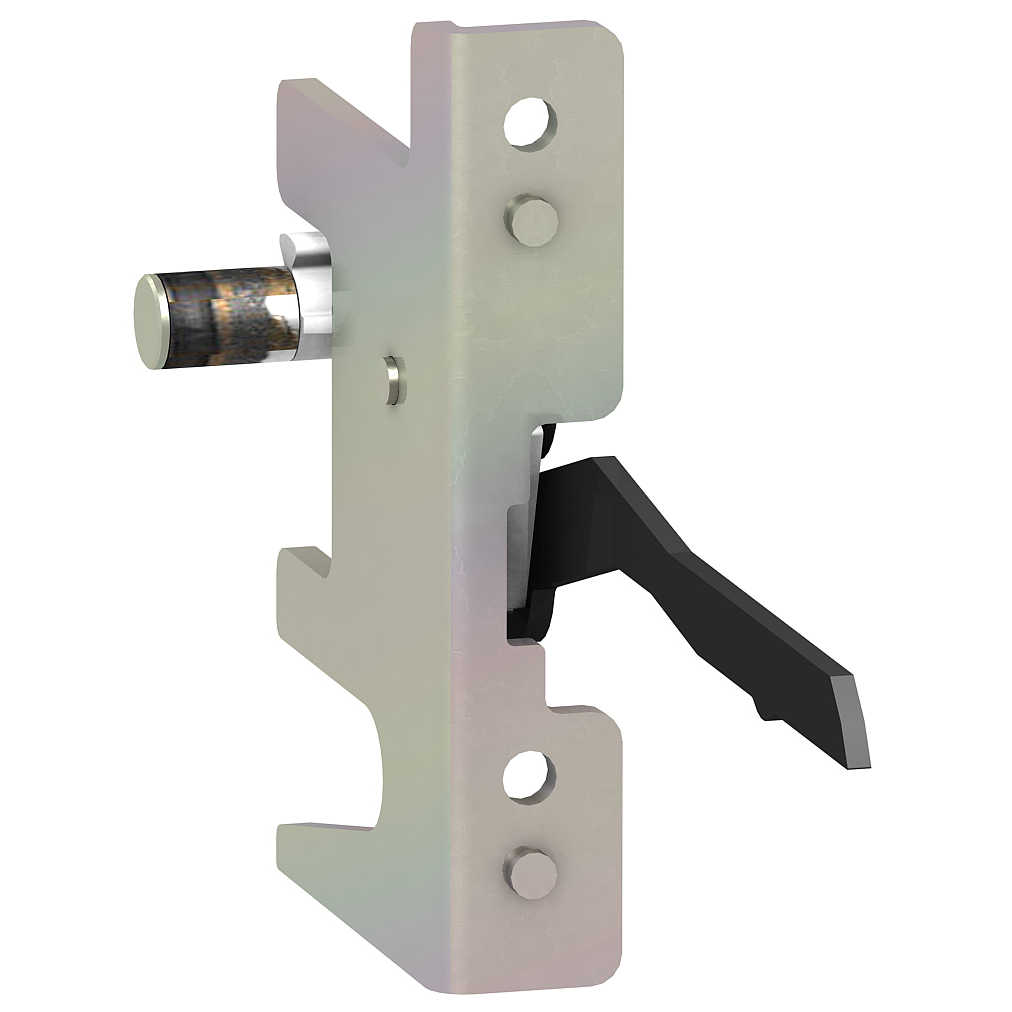

safety trip interlock, ComPact NSX100/160/250, plug-in kit
This is a safety trip interlock device for 2,3 or 4 poles Compact NSX 100/160/250. It is part of the plug-in kit for Compact NSX circuit breakers. This accessory avoids connecting or disconnecting the power circuits under load conditions. It causes automatic tripping if the device is ON, before engaging or withdrawing it. It must be installed on the device.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Poland |
|---|---|
| Range Compatibility |
|
| Accessory / Separate Part Category | interlocking accessory |
| Product Or Component Type | safety trip interlock |
| Poles Description |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2405019EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2405019EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- ComPact NSX/NSJ, FPower NSX/GV7 - Safety trip interlock - Instruction Sheet - GHD1630501-05 (pdf)
- ComPact NSX/NSJ, FPower NSX, GV7 and EasyPact CVS - Fixed locking device for toggle - Instruction Sheet - GHD16299AA (pdf)
- ComPacT NSX400-630 - Adapter for Plug-in Base - Instruction Sheet - ComPacT-NSX400-630-Adapter-IS-GHD1625301-07 (pdf)
- Vigi / Insulation monitoring module for breaker NSX100-250 / CVS100-250- Instruction Sheet - GHD1626801-06 (pdf)
- Instruction sheet for the IP40 escutcheon all control types for Compact NSX 100-630, FPower NSX and GV7 - GHD1628501 (pdf)
- Spec Sheet
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - May 2024 - LVPED221001EN (pdf)
