LV429235

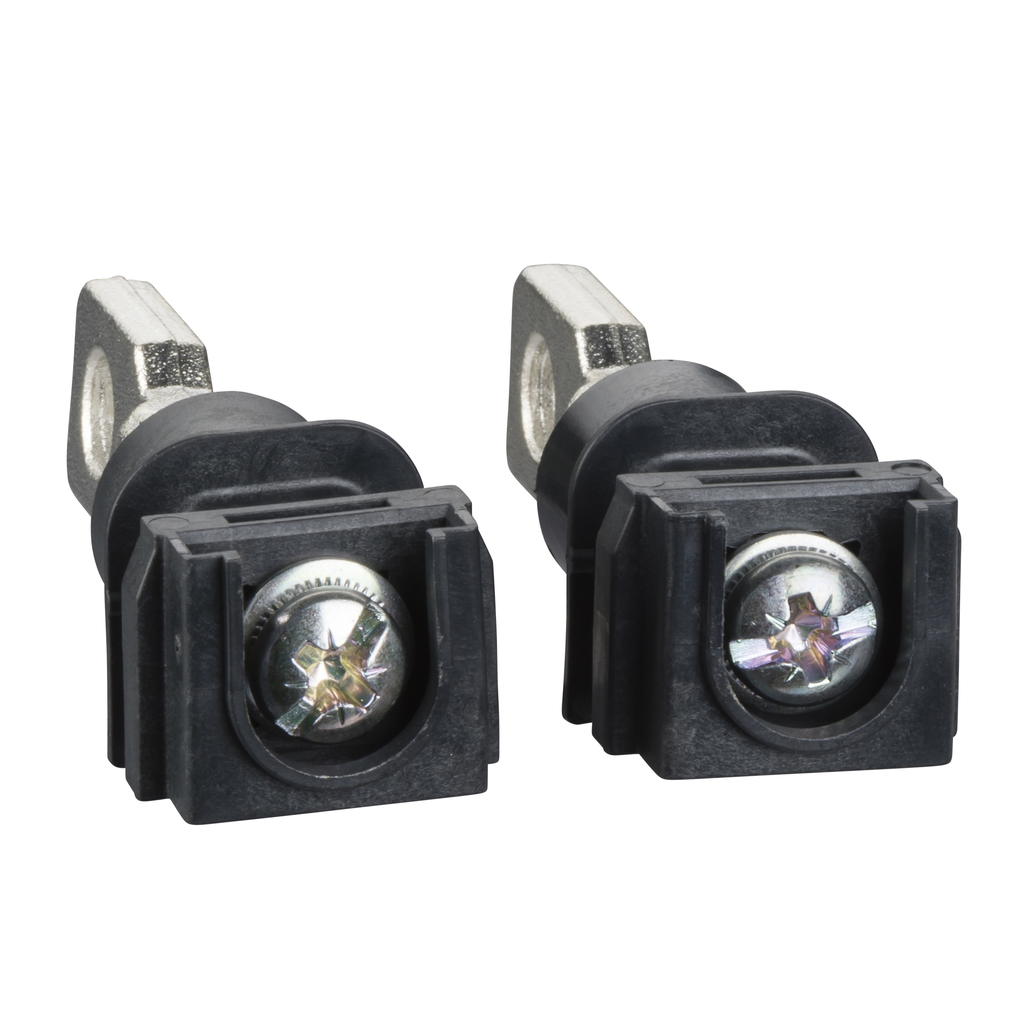

Short rear connections, ComPacT NSX, EasyPact CVS, 250A, set of 2 parts
These accessories are short rear connections for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. The rear connection is simply fitted to the device connection terminals. Device mounting on a backplate with suitable holes enables rear connection. The length is approximately 43mm. The rated current is up to 250 A. They are sold by set of 2 parts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Quantity Per Set | set of 2 |
| Location Of Connection | rear |
| Shape | short |
| Country of Origin | France |
| Range Of Product |
|
| Range Compatibility |
|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | short rear connection |
| Line Rated Current | 250-250 A |
| Poles Description |
|
| Warranty | 18 months |
