LV426991

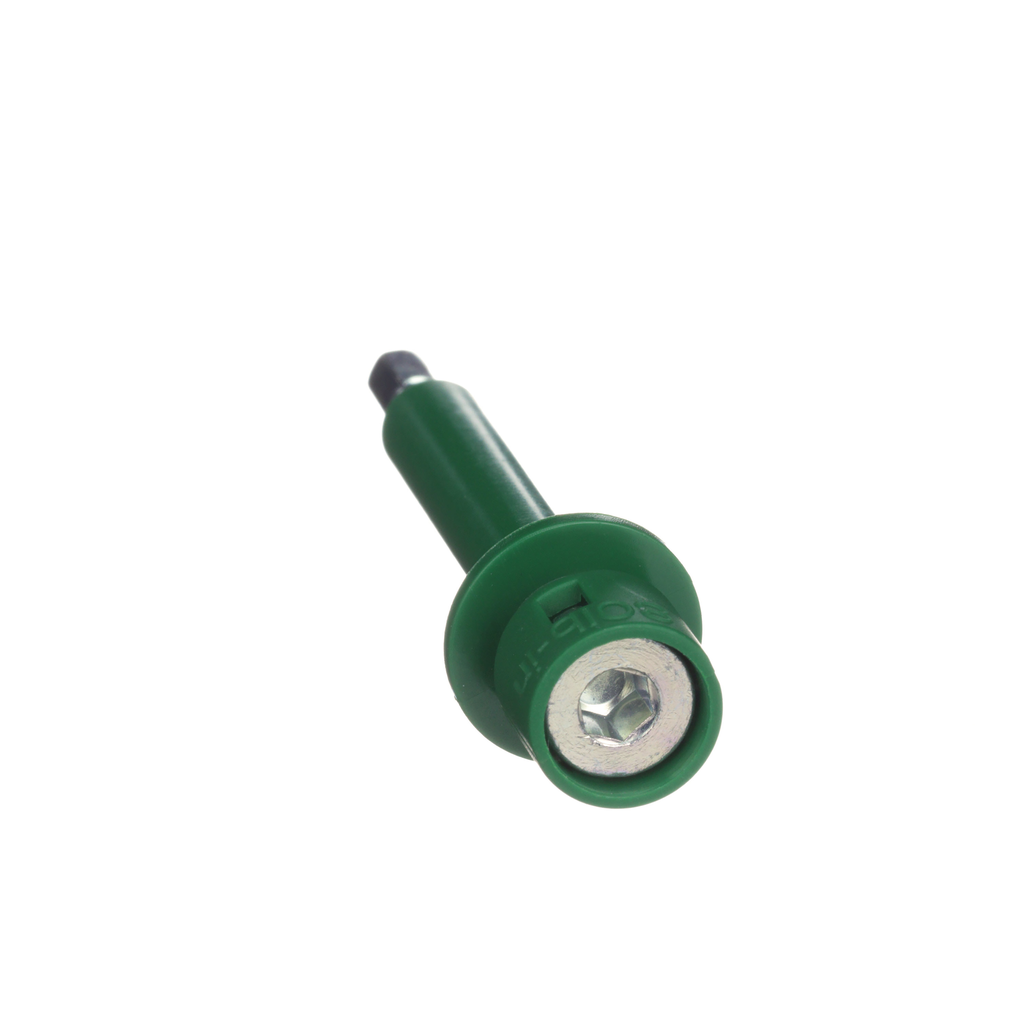

Torque limiting breakaway bits, ComPacT NSXm, power connections, torque 9N.m, green, set of 8 parts
It is a set of 8 torque limiting breakaway bits for 3 poles Compact NSXm and PowerPact B devices. They are used to tighten at the right torque Everlink connectors, compression lugs or busbar power connections. These breakaway bits are in green to indicate that the limiting torque is 9 N.m.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Tightening Torque | 9 N.m |
|---|---|
| Quantity Per Set | set of 8 |
| Colour Tint | green |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | France |
| Range Of Product | ComPact NSXm |
| Range Compatibility |
|
| Accessory / Separate Part Category | installation accessory |
| Product Or Component Type | torque limiting breakaway bit |
