LV426974 - Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, 3 pole, qty 1, EverLink, control wire terminal

LV426974

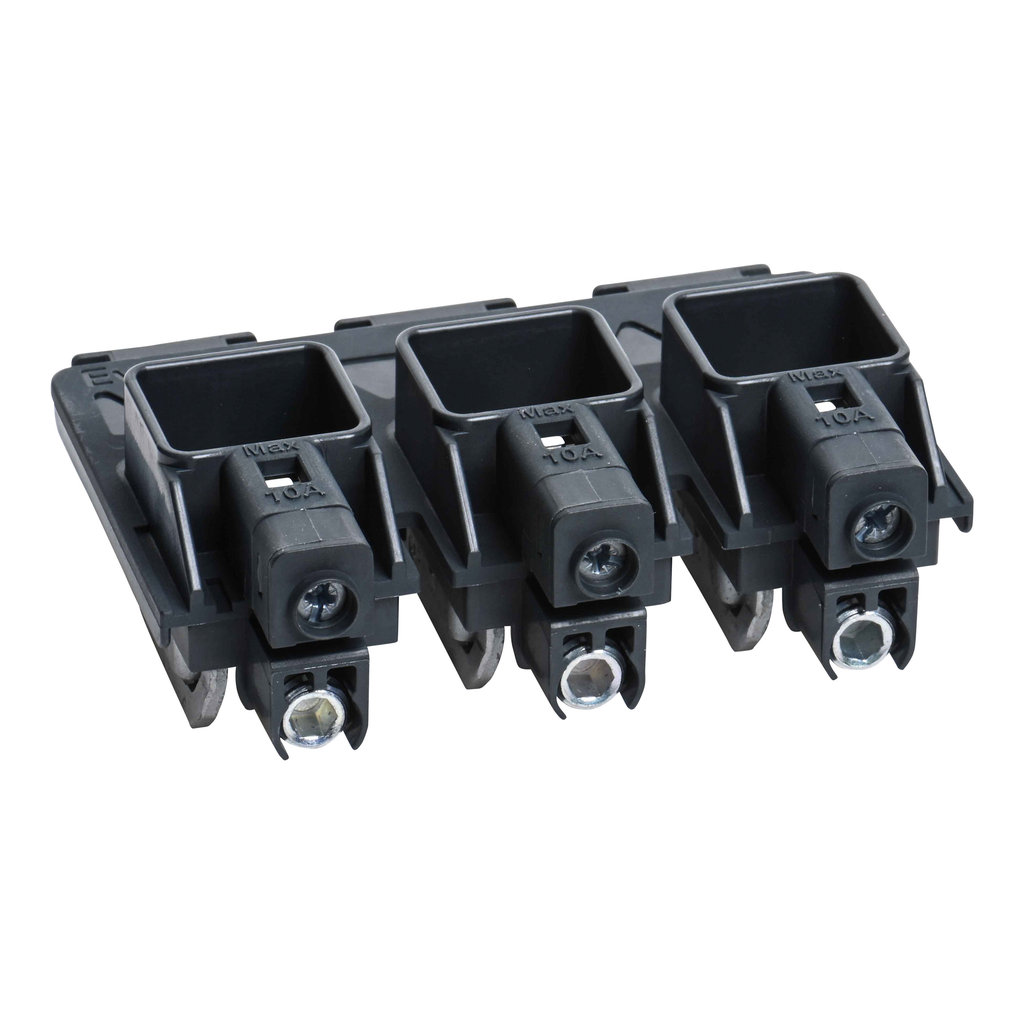

Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, 3 pole, qty 1, EverLink, control wire terminal

PowerPacT B-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This accessory is an EverLink connector kit for three pole devices. EverLink lugs minimize loose wiring at installation sites caused by wire strand deformation, terminal temperature changes, and vibration or shocks. This field installable kit can be applied upstream or downstream. It includes control wire terminals which provide an auxiliary power supply to a control power transformer, convenience receptacle, or metering.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free product
Conductor Material	steel
Current Of Common	10 A 0.5-6 mm² AWG 20...AWG 10), stranded or fine stranded 10 A 1.5-6 mm² AWG 20...AWG 10), rigid
Connections - Terminals	screw terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid screw terminal 2.5-95 mm² AWG 14...AWG 3/0) - stranded screw terminal 2.5-70 mm² AWG 6...AWG 2/0) - fine stranded
Quantity Per Set	set of 1
Location Of Connection	downstream upstream
Line Rated Current	15-125 A copper 15-100 A aluminium
Country of Origin	United States
Product Or Component Type	mechanical lug
Poles Description	3P
Accessory / Separate Part Type	connection kit

Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, 3 pole, qty 1, EverLink, control wire terminal
