LV426967 - Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, qty 3, Al

LV426967

Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, qty 3, Al

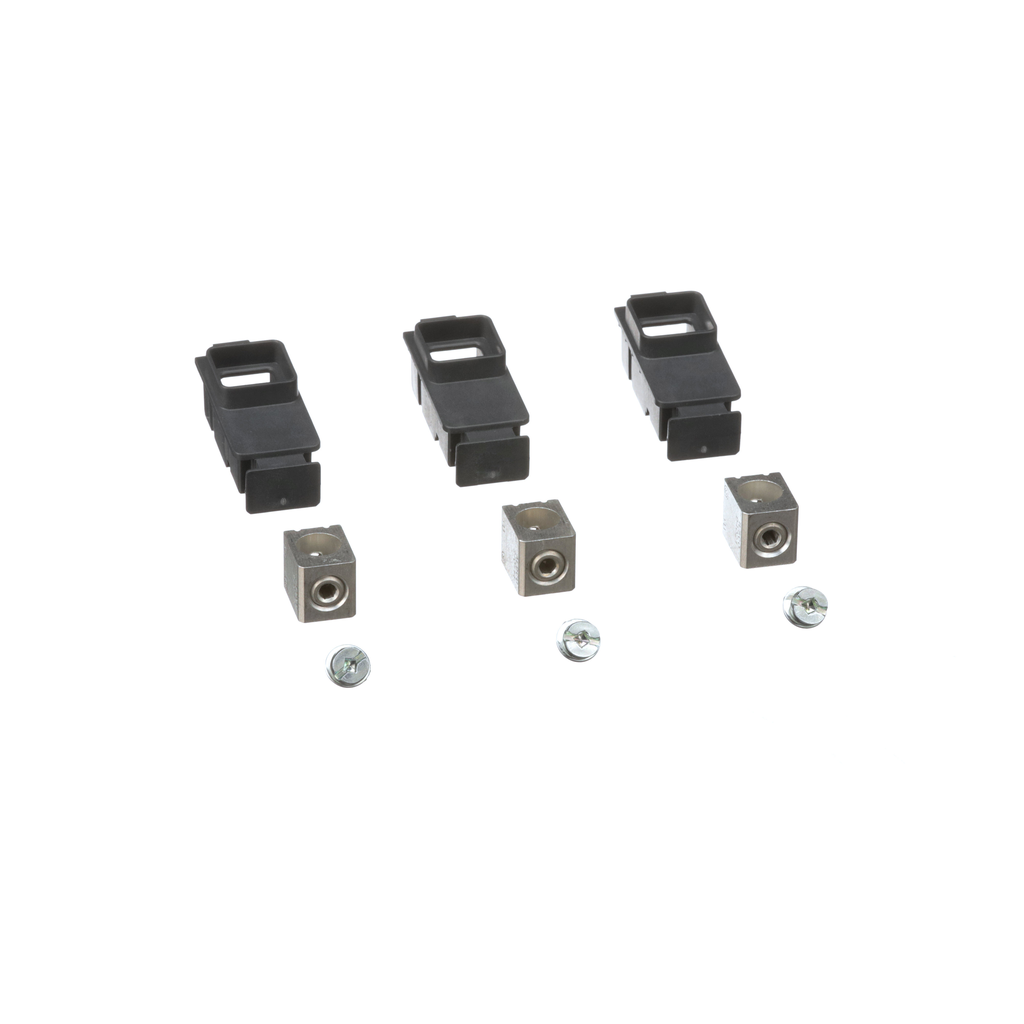

It is a set of 3 aluminium mechanical connectors for Compact NSXm and PowerPact B devices. These lugs are made of tin-plated aluminium an are suitable for copper and aluminium conductors. They are fastened to the terminals with lug mounting screws inserted from the bottom. The current rating is from 15A to 125A for copper wires (2.5 - 6 mm²), and the torque is 4 N.m +/- 0.4. For aluminium wires, the current rating is from 15A to 125 A (10 - 70 mm²), and the torque is 5.6 N.m +/- 0.6.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Pvc Free	Yes
Eu Rohs Directive	Compliant with Exemptions
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen Content Performance	Halogen free product
Conductor Material	copper aluminium
Mounting Mode	fixed
Quantity Per Set	set of 3
Line Rated Current	16-125 A
Connections - Terminals	screw terminal 2.5-70 mm² AWG 14...AWG 2/0)
Country of Origin	China
Product Or Component Type	mechanical lug
Accessory / Separate Part Type	connection kit
