LV426966
Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, qty 2, Al

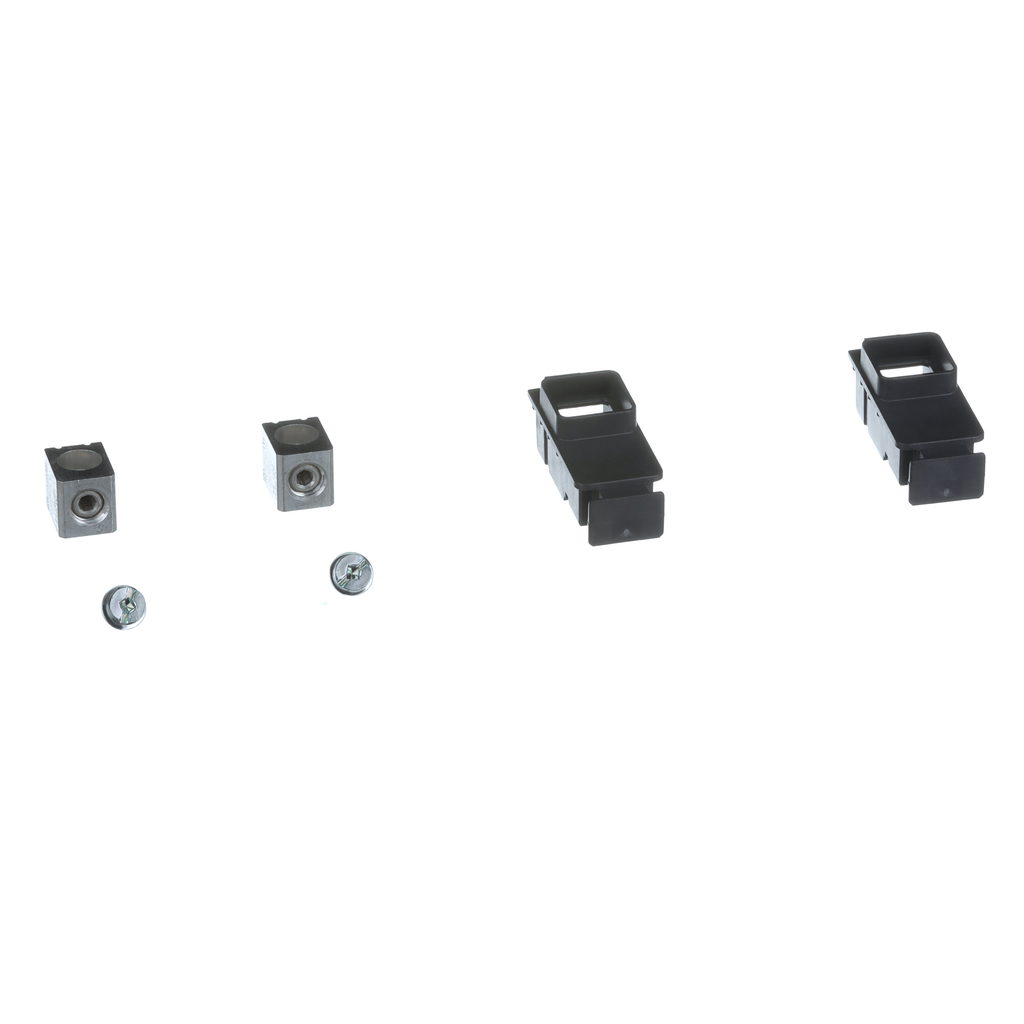

It is a set of 2 aluminium mechanical connectors for Compact NSXm and PowerPact B devices. These lugs are made of tin-plated aluminium an are suitable for copper and aluminium conductors. They are fastened to the terminals with lug mounting screws inserted from the bottom. The current rating is from 15A to 125A for copper wires (2.5 - 6 mm²), and the torque is 4 N.m +/- 0.4. For aluminium wires, the current rating is from 15A to 125 A (10 - 70 mm²), and the torque is 5.6 N.m +/- 0.6.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Conductor Material |
|
|---|---|
| Mounting Mode | fixed |
| Quantity Per Set | set of 2 |
| Line Rated Current | 16-125 A |
| Connections - Terminals | screw terminal 2.5-70 mm² AWG 14...AWG 2/0) |
| Country of Origin | United States |
| Product Or Component Type | mechanical lug |
| Accessory / Separate Part Type | connection kit |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
