LV426965

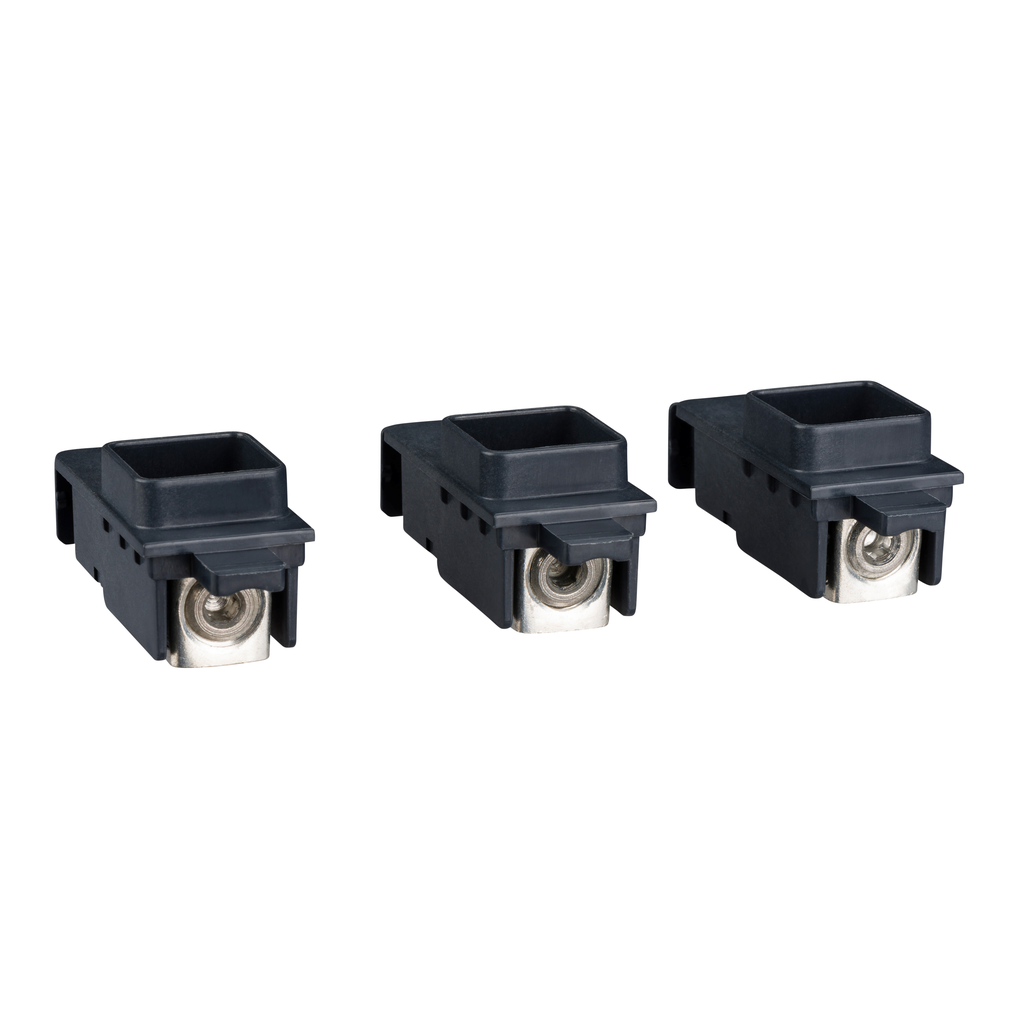

Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, qty 3, Cu
Specifications
| Conductor Material | copper |
|---|---|
| Mounting Mode | fixed |
| Quantity Per Set | set of 3 |
| Line Rated Current | 15-125 A copper |
| Connections - Terminals | screw terminal 2.5-50 mm² AWG 14...AWG 1/0) |
| Country of Origin | Mexico |
| Product Or Component Type | mechanical lug |
| Accessory / Separate Part Type | connection kit |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
Documents
- PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf)
- EcoStruxure Power Asset Performance eGuide - 998-20406243_US_NEMA (pdf)
- PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf)
- PowerPacT B-Frame Lug Kits - Installation Instructions - NHA56713 (pdf)
- PowerPacT B-Frame 15 to 125 A Circuit Breakers - Catalog - 0611CT1603 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
- Spec Sheet
