LV426962

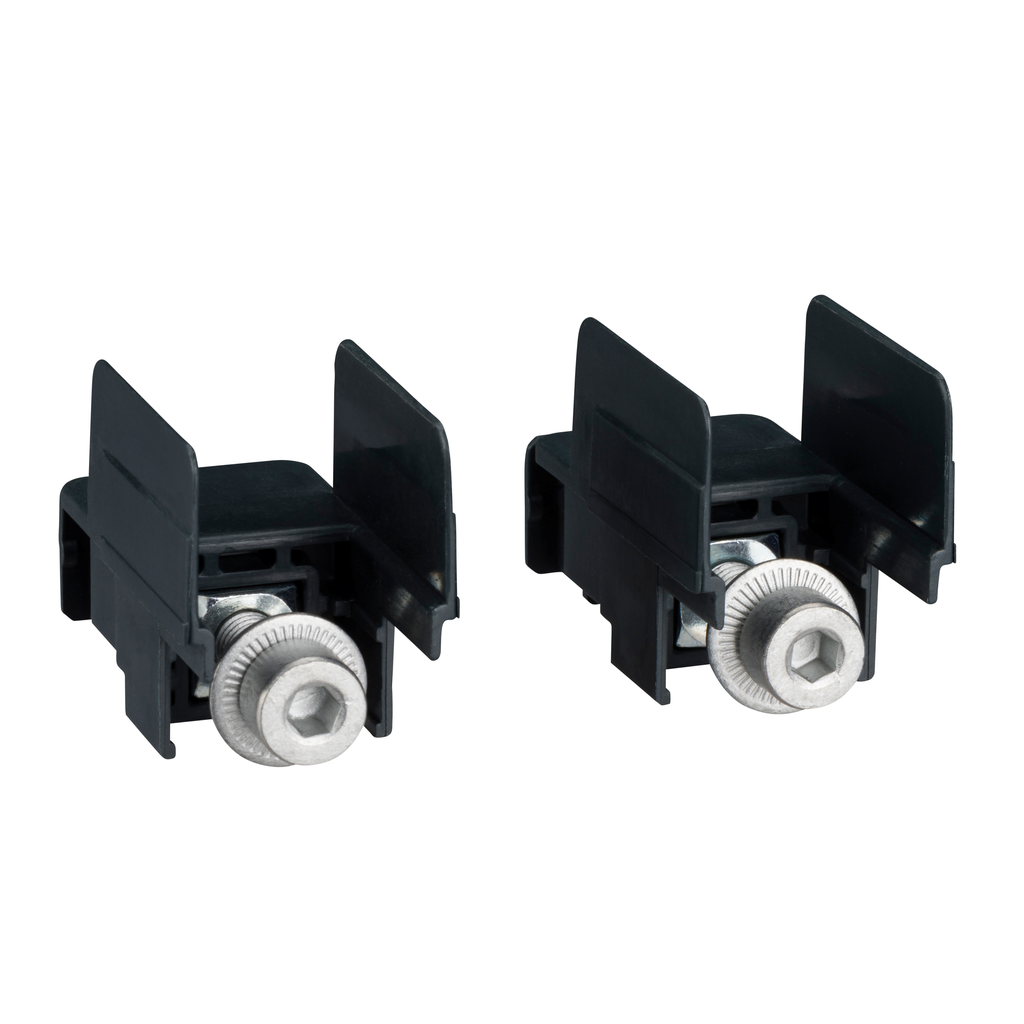

Circuit breaker accessory, PowerPact B, terminal nut kit, for busbar, 2 pole, qty 2
PowerPacT B-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. PowerPacT B-Frame circuit breakers may be equipped with terminal nuts and M6 power screws for direct connection to compression lugs, power distribution connectors, busbars and terminal spreaders. This PowerPacT B, terminal nut insert can replace the EverLink lug. The terminal nuts have a rated current of 15A to 125A. The kit contains two terminal nut inserts. They are also available factory installed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
| Country of Origin | Mexico |
| Line Rated Current | 15-125 A |
| Poles Description | 2P |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 2 |
| Product Or Component Type | terminal kit |
| Thread Type | M6 |
| Mounting Mode | fixed |
