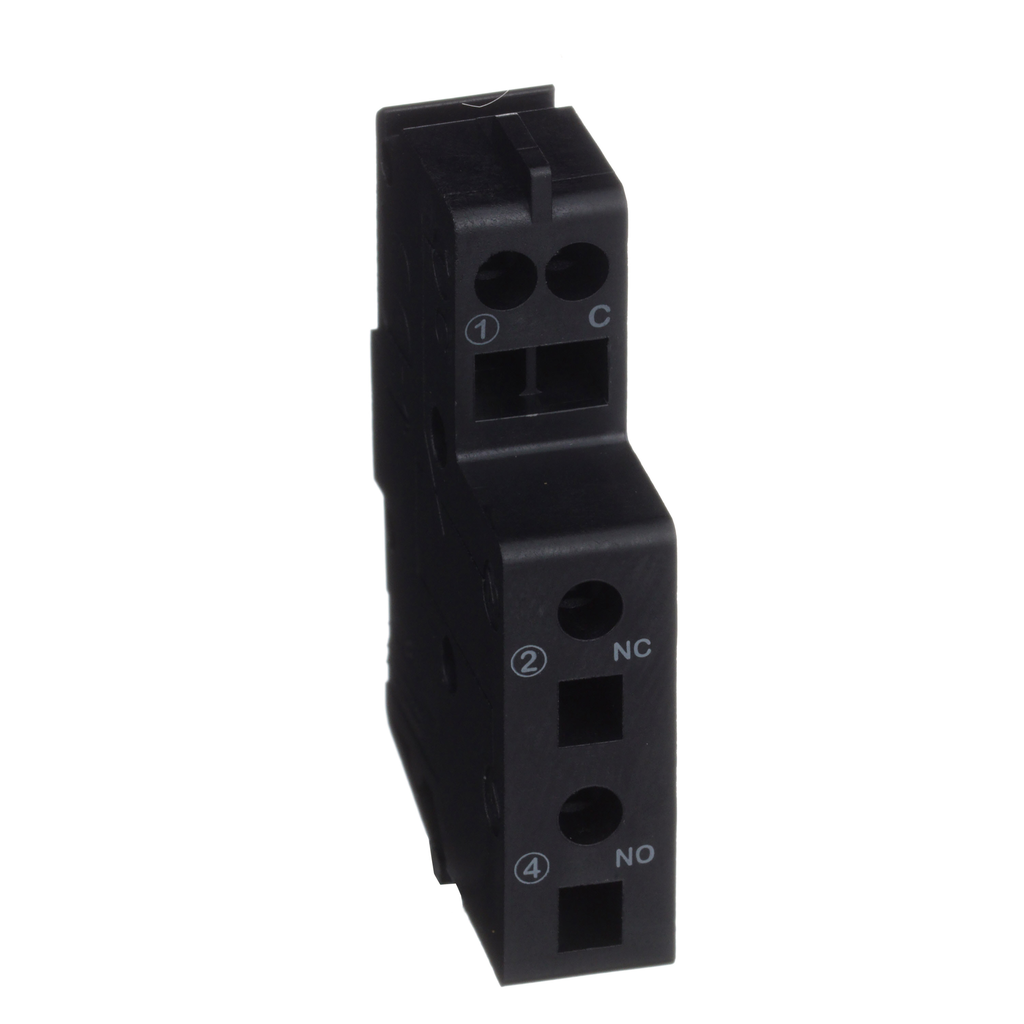

standard auxiliary contact, ComPact NSXm, circuit breaker status OF/SD, 1 changeover contact type
It is a single standard auxiliary contact that provides two remote information of the circuit breaker status. It is used on Compact NSXm and PowerPact B devices. The OF contact (open/closed) indicates the position of the circuit breaker main contacts. The SD contact (trip indication) indicates if the circuit breaker has tripped. There is one auxiliary contact model for OF and SD information, depending on where it is fitted in the device. This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5A and the minimum load is 2mA at 17 VDC. Utilization categories are AC12/AC13/DC12/DC13/DC14. Compact NSXm embeds 2 auxiliary contacts and their presence is visible on the front face through green flags. It complies with IEC 60947-5-1 standard.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Fault Type |
|
| Auxiliary Connection Terminal | spring |
| [Ith] Conventional Free Air Thermal Current | 5 A |
| Wire Stripping Length | 8 mm for front connection |
| Mounting Mode | clip-on |
| Auxiliary Contacts Type | standard |
| [Ie] Rated Operational Current |
|
| Local Signalling |
|
| Minimum Load | 2 mA 17 V DC |
| Country of Origin | United States |
| Range Compatibility |
|
| Product Or Component Type | auxiliary contact |
| Signal Contacts Composition | 1 NO/NC |
| Device Application | breaker status monitoring |
| Device Short Name |
|
