LV426923

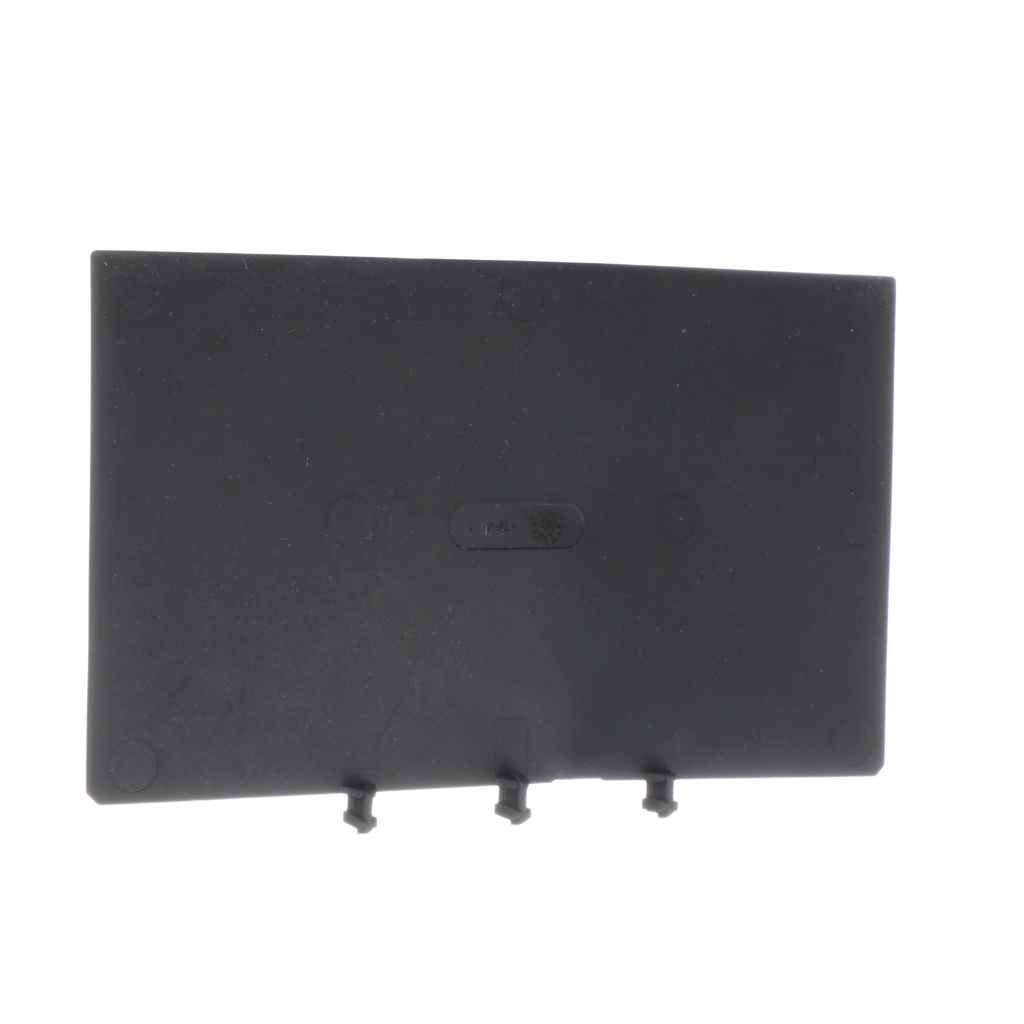

Rear insulation screens, ComPacT NSXm, 4 poles, set of 2 parts
It is an insulating accessory for Compact NSXm and PowerPact B devices. It provides insulation at the rear of the device. This insulation screen can be adapted on 4 poles devices, the dimensions are 110mm x 84mm x 1mm. These screens come in set of 2 parts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Connection Pitch | 35 mm |
| Poles Description | 4P |
| Quantity Per Set | set of 2 |
| Location Of Connection |
|
| Accessory / Separate Part Type | insulation accessories |
| Country of Origin | China |
| Range Compatibility |
|
| Product Or Component Type | insulation screen |
