LV426906

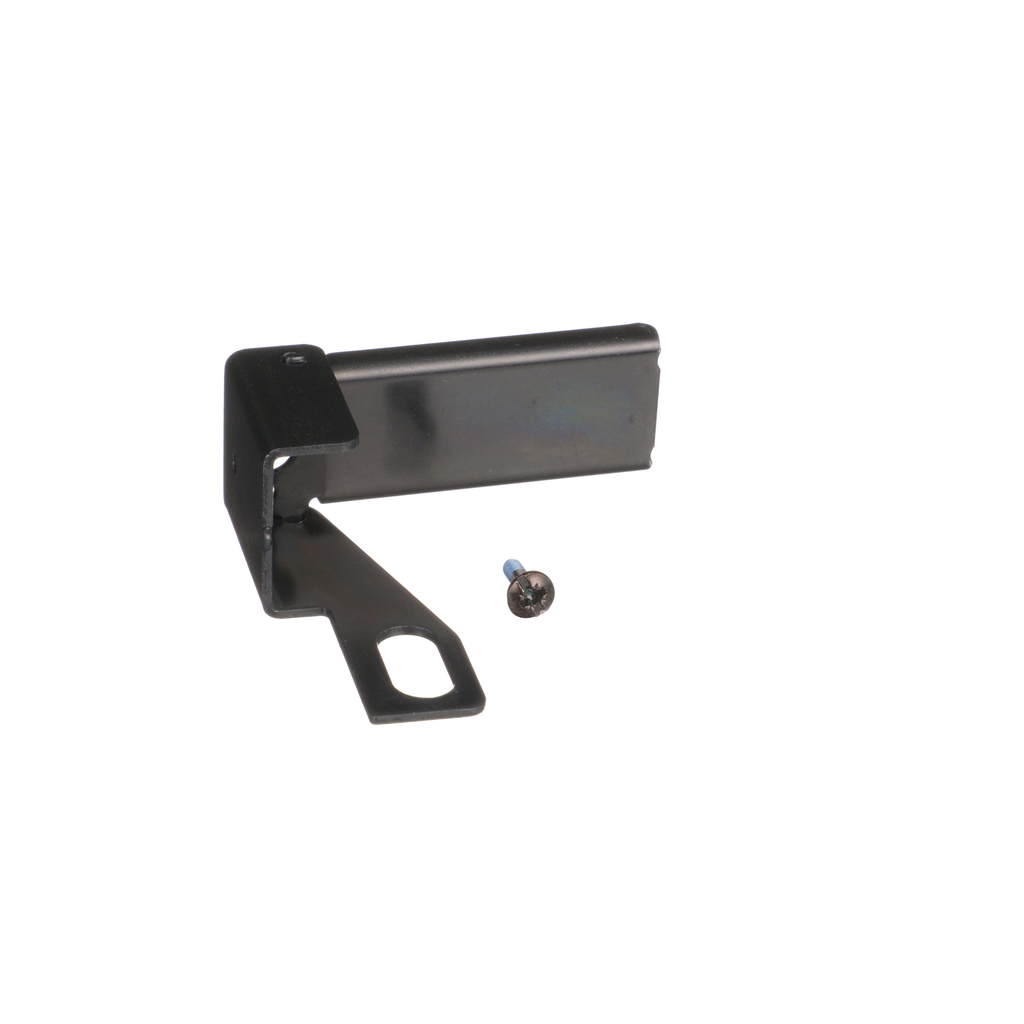

Circuit breaker accessory, PowerPacT B, padlocking device, handle, fixed adapter, OFF position only
It is a fixed toggle padlocking device for Compact NSXm and PowerPact B circuit breakers. It can receive up to three padlocks with diameter of 5 to 8 mm and is used to lock the device in OFF position only. Locking in the OFF position ensures isolation as per IEC 60947-2.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Mounting Mode | fixed |
|---|---|
| Number Of Locks | 3 |
| Locking Options Description |
|
| Key Locking Position | in front |
| Accessory / Separate Part Type | keylock accessories |
| Country of Origin | Mexico |
| Product Or Component Type | padlocking device |
| Device Short Name | locking for 1 to 3 padlocks |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
