LV426905

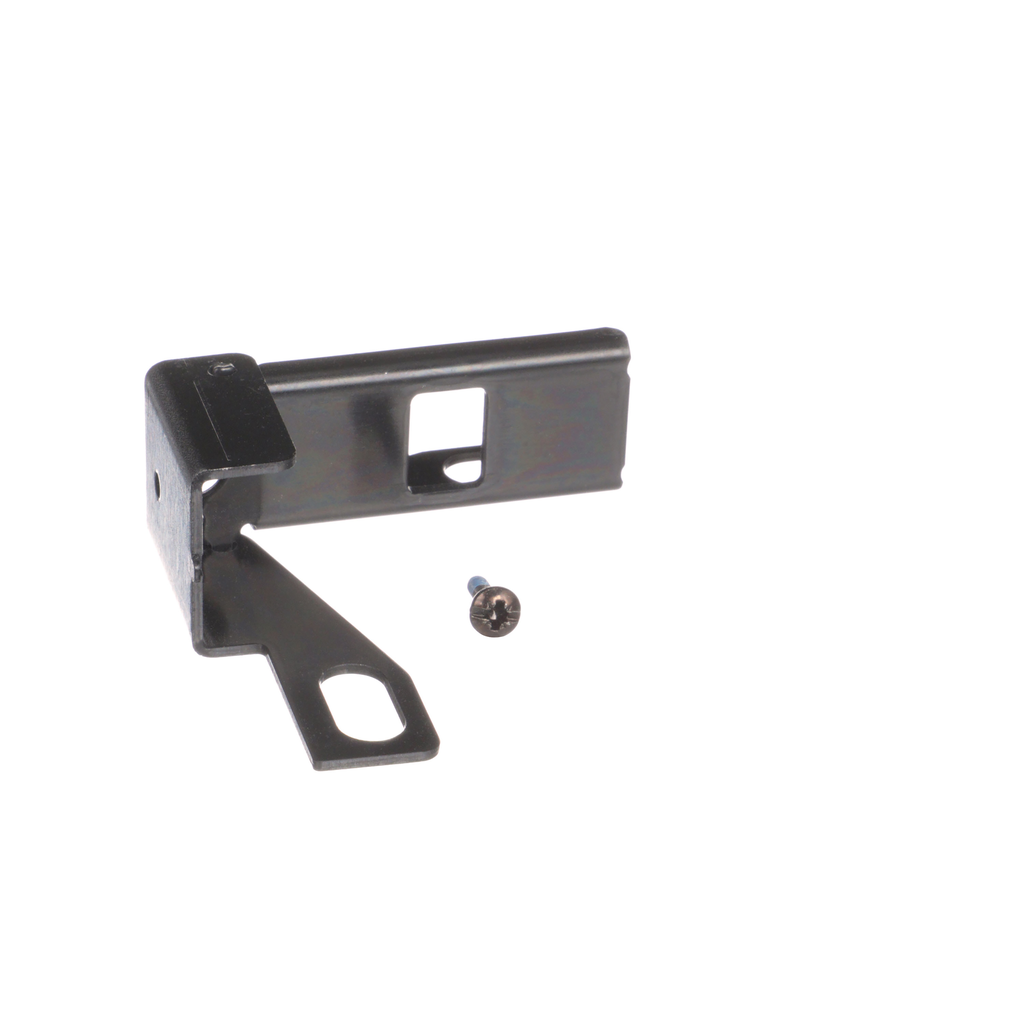

Circuit breaker accessory, PowerPacT B, padlocking device, handle, fixed adapter, OFF or ON position
It is a fixed toggle padlocking device for Compact NSXm and PowerPact B circuit breakers. It can receive up to three padlocks with diameter of 5 to 8 mm and is used to lock the device in OFF or ON position. Locking in the OFF position ensures isolation as per IEC 60947-2.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Locks | 3 |
|---|---|
| Locking Options Description |
|
| Mounting Mode | fixed |
| Key Locking Position | in front |
| Accessory / Separate Part Type | keylock accessories |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Country of Origin | Mexico |
| Product Or Component Type | padlocking device |
| Device Short Name | locking for 1 to 3 padlocks |
