LV426850
Standard shunt trip release MX, ComPacT NSXm, 12VDC

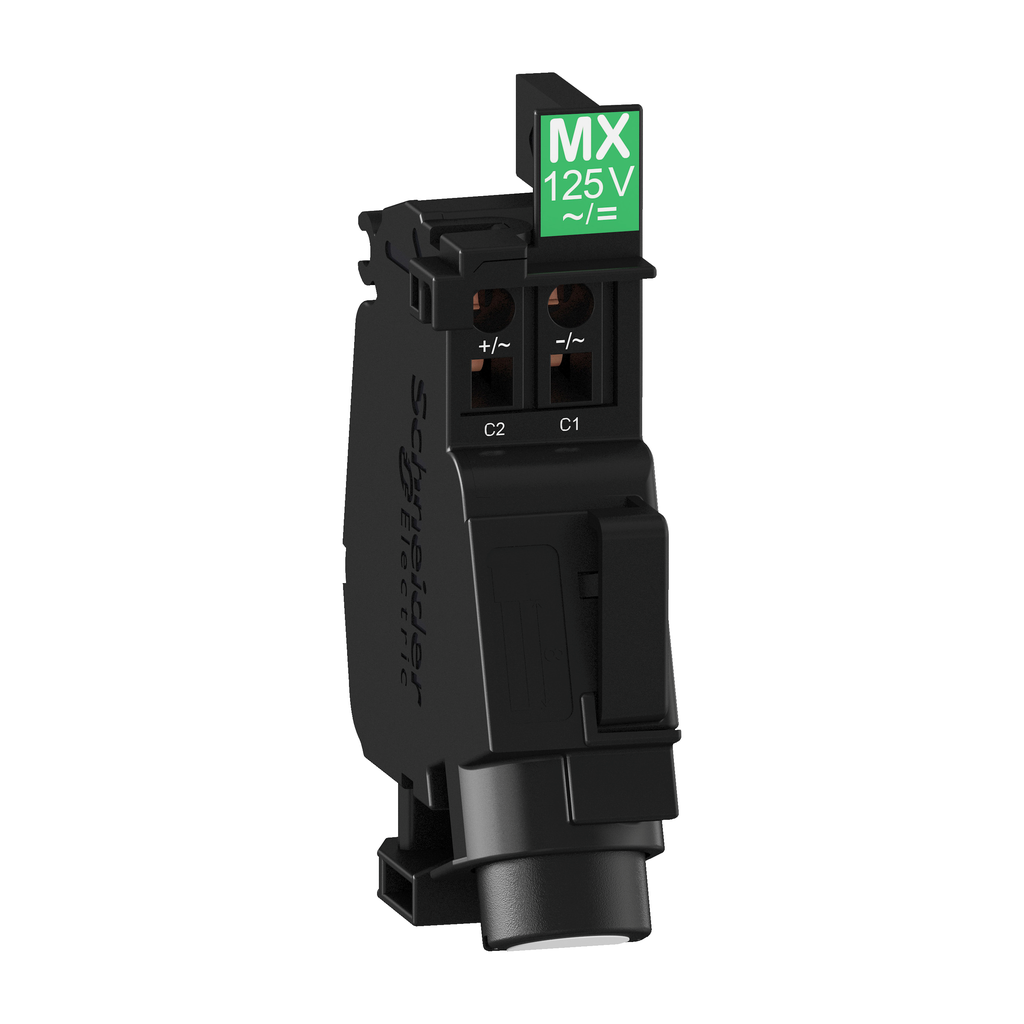

This standard MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 12 VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Auxiliary Connection Terminal | spring |
|---|---|
| Impulse Duration | >= 20 ms |
| Control Signal Type |
|
| Response Time | < 50 ms |
| Threshold Tripping Voltage | 0.7 Un opening |
| Country of Origin | France |
| [Uc] Control Circuit Voltage | 12 V DC |
| Range Of Product | ComPacT NSXm new generation |
| Range Compatibility |
|
| Product Or Component Type | voltage release |
| Range | ComPact |
| Control Type | standard |
| Voltage Release Type |
|
| Device Application | control |
| Device Short Name | MX |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2311043EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2311043EN |
| Eu Rohs Directive | Compliant with Exemptions |
