LUFW10 – Function module, thermal overload alarm, TeSys Ultra, 1NO
LUFW10

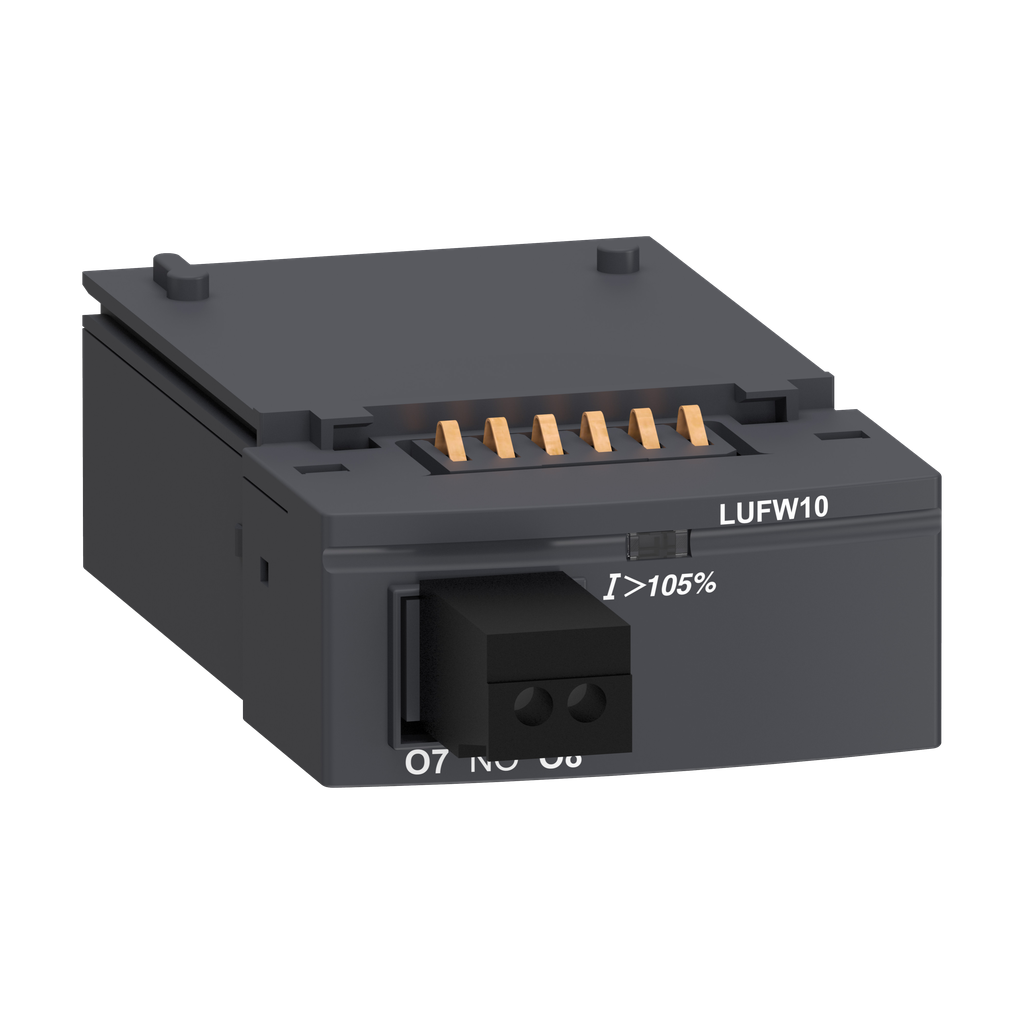

Function module, thermal overload alarm, TeSys Ultra, 1NO

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload alarm. It provides 1NO instantaneous contact rated 2A 230V AC / 24V DC, a LED status on front panel. The alarm is activated when the thermal overload state exceeds 88% of thermal tripping state, with an hysteresis of 5% between activation and deactivation. It is powered by the control unit. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
[Ith] Conventional Free Air Thermal Current 2 A 70 °C
Auxiliary Contact Composition 1 NO
Short-Circuit Protection 2 A fuse gG IEC 60947-5-1
Connection Pitch 5.08 mm
Associated Cable Type AWG24...AWG16
Communication Of Faults LED front panel
Connections - Terminals
  • screw clamp terminals 2 0.2-1 mm² rigid without cable end
  • screw clamp terminals 2 0.25-1 mm² flexible with cable end
  • screw clamp terminals 2 0.5-1 mm² flexible with cable end
  • screw clamp terminals 1 0.2-1.5 mm² flexible without cable end
  • screw clamp terminals 1 0.2-1.5 mm² rigid without cable end
  • screw clamp terminals 1 0.25-1.5 mm² flexible with cable end
  • screw clamp terminals 2 0.2-1 mm² flexible without cable end
Net Weight 0.055 kg
Mounting Location front side
Function Available thermal overload alarm
Mounting Mode plug-in
Discrete Output Function
  • 1 NO AC-15) 230 V 400 VA 100000 cycles
  • 1 NO DC-13) 24 V 50 W 100000 cycles
Tightening Torque 0.5-0.6 N.m 3.5 mm flat
Rohs Exemption Information Yes
Mercury Free Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive Compliant with Exemptions
Country of Origin France
Weight 0.055 kg
Product Or Component Type function module
Range TeSys
Product Compatibility
  • LUCC
  • LUCB
  • LUCD
Device Short Name LUF
Warranty 18 months
