LUFP7
Communication gateway, TeSys Ultra, 24VDC +/- 10%, 1Profibus DP SUB-D9, 1 RJ45 Modbus

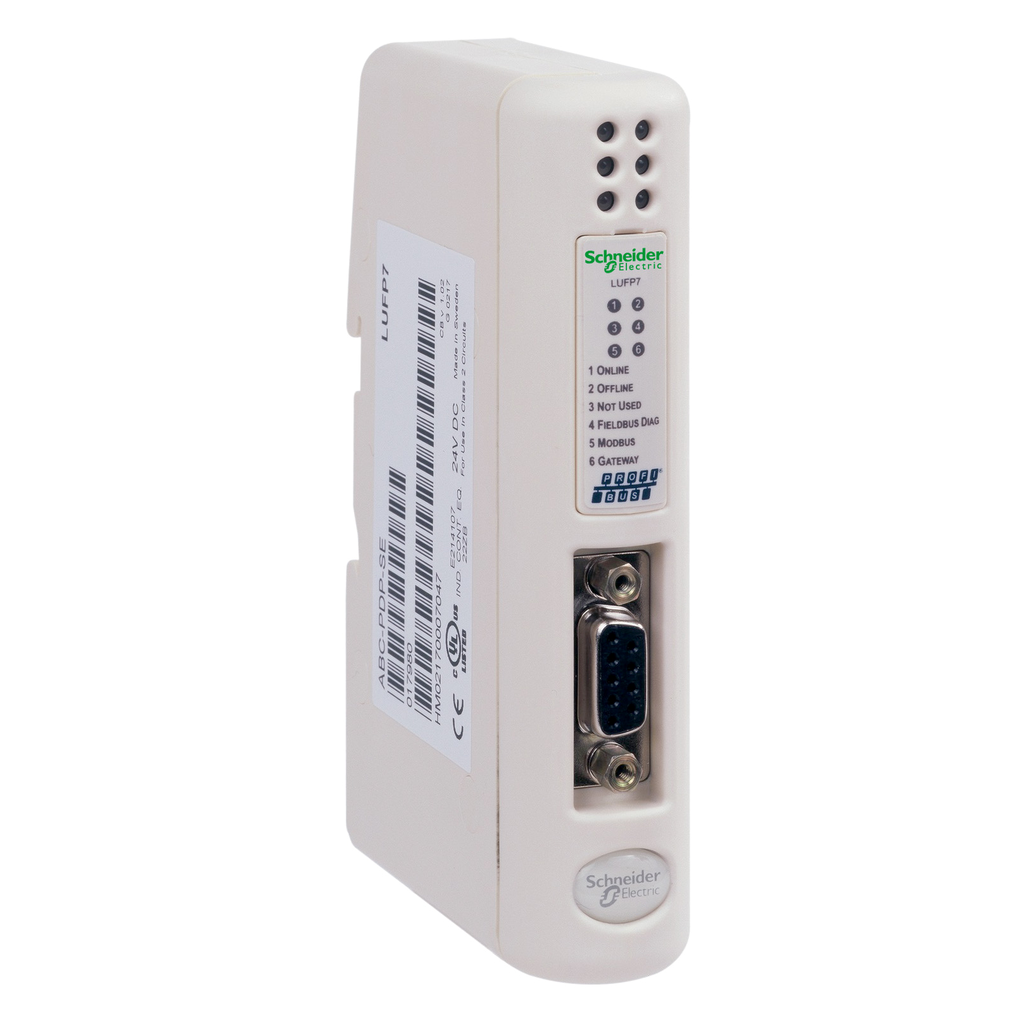

TeSys U communication gateway for interfacing groups of up to 8 x TeSys U starter controllers connected on the same Modbus serial link to a Profibus DP field bus. On front side, it provides the Profibus DP connector, and device and communication LED status. It provides on the bottom 2 x RJ45 connectors for Modbus serial link and PC link, a connector for a 24V DC external power supply. It can be used for interfacing ATS48 soft starters and ATV31 variable speed drives to Profibus DP. To be clipped on a 35mm DIN rail. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Electromagnetic Compatibility |
|
|---|---|
| Pollution Degree | 2 IEC 60664 |
| Ambient Air Temperature For Installation | 5-50 °C |
| Ip Degree Of Protection | IP20 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Current Consumption |
|
| Maximum Number Of Connections | <= 8 Modbus slaves |
| Services |
|
| Net Weight | 0.245 kg |
| Connector Type |
|
| Bus Type |
|
| Local Signalling | LED front panel |
| [Us] Rated Supply Voltage | 24 V DC +/- 10 % |
| Country of Origin | Sweden |
| Weight | 0.245 kg |
| Product Or Component Type | communication gateway |
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | LUF |
