LUFN11

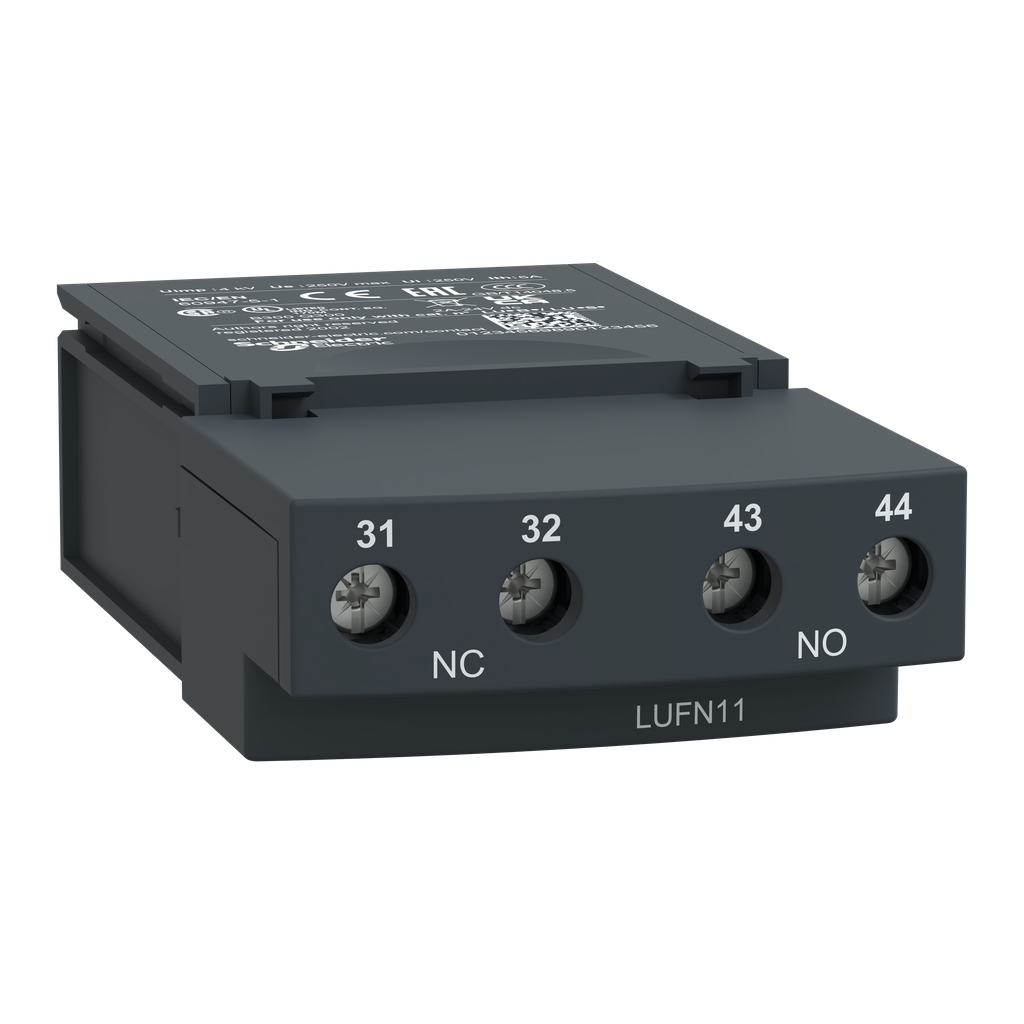

Auxiliary contact module, TeSys Ultra1 NO and 1 NC
TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 1NO+1NC instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| [Ue] Rated Operational Voltage |
|
| [Ith] Conventional Free Air Thermal Current | 5 A |
| Net Weight | 0.05 kg |
| [Ui] Rated Insulation Voltage |
|
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Country of Origin | United States |
| Weight | 0.05 kg |
| Product Or Component Type | auxiliary contact |
| Range | TeSys |
| Device Short Name | LUFN |
| Warranty | 18 months |
