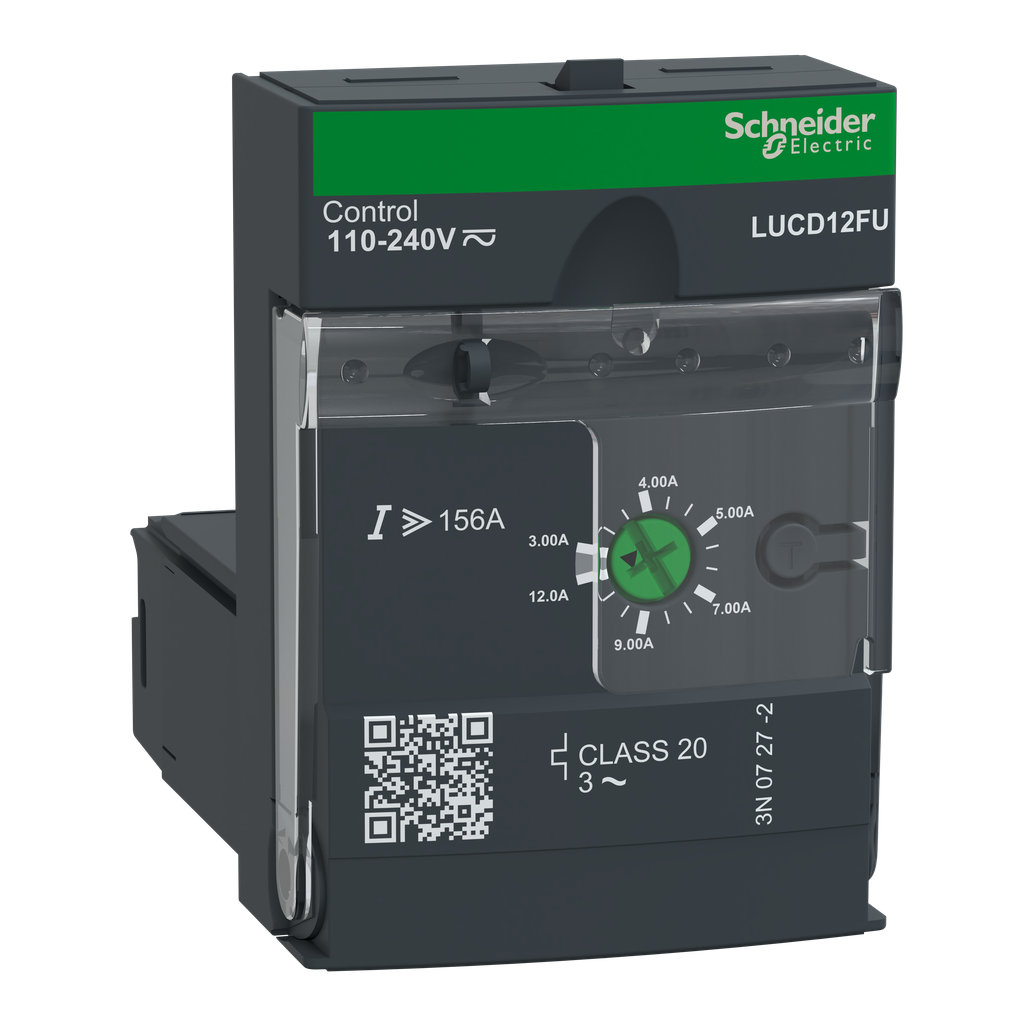

LUCD12FU - Advanced control unit, TeSys Ultra, 3A to 12A, 3P motors, protection & diagnostic, class 20, coil 110-240VAC/DC

LUCD12FU

Advanced control unit, TeSys Ultra, 3A to 12A, 3P motors, protection & diagnostic, class 20, coil 110-240VAC/DC

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-25-70 °C
Resistance To Radiated Fields	10 V/m 3 IEC 61000-4-3
Non-Dissipating Shock Wave	1 kV serial mode IEC 60947-6-2 2 kV common mode IEC 60947-6-2
Shock Resistance	10 gn power poles open IEC 60068-2-27 15 gn power poles closed IEC 60068-2-27
Vibration Resistance	2 gn 5-300 Hz power poles open IEC 60068-2-6 4 gn 5-300 Hz power poles closed IEC 60068-2-6
Immunity To Microbreaks	3 ms
Immunity To Voltage Dips	70 % / 500 ms IEC 61000-4-11
Ip Degree Of Protection	IP20 front panel and wired terminals IEC 60947-1 IP20 other faces IEC 60947-1 IP40 front panel outside connection zone IEC 60947-1
Ambient Air Temperature For Storage	-40-85 °C
Protective Treatment	TH IEC 60068
Resistance To Electrostatic Discharge	8 kV 3 in open air IEC 61000-4-2 8 kV 4 on contact IEC 61000-4-2
Operating Altitude	6561.68 ft (2000 m)
Fire Resistance	960 °C parts supporting live components IEC 60695-2-12 650 °C IEC 60695-2-12
Immunity To Radioelectric Fields	10 V IEC 61000-4-6
Resistance To Fast Transients	2 kV 3 serial link IEC 61000-4-4 4 kV 4 all circuits except for serial link IEC 61000-4-4
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Pvc Free	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Product Certifications	CE UL CSA CCC EAC ASEFA ATEX Marine
Height	66 mm
Reset	manual reset
Fixing Mode	plug-in (front face)
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-6-2
Standards	EN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier
Typical Current Consumption	280 mA 110...240 V AC I maximum while closing with LUB12 280 mA 110...240 V AC I maximum while closing with LUB32 280 mA 110...240 V AC I maximum while closing with LUB38 280 mA 110...220 V DC I maximum while closing with LUB12 280 mA 110...220 V DC I maximum while closing with LUB32 280 mA 110...220 V DC I maximum while closing with LUB38 35 mA 110...240 V AC I rms sealed with LUB12 25 mA 110...240 V AC I rms sealed with LUB32 25 mA 110...240 V AC I rms sealed with LUB38 35 mA 110...220 V DC I rms sealed with LUB12 25 mA 110...220 V DC I rms sealed with LUB32 25 mA 110...220 V DC I rms sealed with LUB38
[Ui] Rated Insulation Voltage	690 V IEC 60947-6-2 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1
Compatibility Code	LUCD
Control Circuit Voltage Limits	88...264 V AC 110...240 V in operation 88...242 V DC 110...220 V in operation 55 V AC 110...240 V drop-out 55 V DC 110...220 V drop-out
Operating Time	35 ms opening with LUB12 control circuit 35 ms opening with LUB32 control circuit 35 ms opening with LUB38 control circuit 50 ms closing with LUB12 control circuit 50 ms closing with LUB32 control circuit 50 ms closing with LUB38 control circuit
Width	45 mm
Safe Separation Of Circuit	400 V SELV between the control and auxiliary circuits IEC 60947-1 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
Depth	60 mm
Heat Dissipation	2-2 W control circuit with LUB12 3-3 W control circuit with LUB32 3-3 W control circuit with LUB38
Country of Origin	France
Width	45 mm
Height	66 mm
[Uc] Control Circuit Voltage	110...240 V AC 110...220 V DC
[Ue] Rated Operational Voltage	690 V AC
Range Of Product	TeSys Ultra
Phase Failure Sensitivity	yes
Thermal Protection Adjustment Range	3-12 A
Product Or Component Type	advanced control unit
Product Name	TeSys Ultra
Thermal Overload Class	class 20 40-60 Hz -25-70 °C IEC 60947-6-2 class 20 40-60 Hz -25-70 °C UL 508
Motor Power Kw	5.5 kW 400...440 V AC 50/60 Hz 5.5 kW 500 V AC 50/60 Hz 9 kW 690 V AC 50/60 Hz
Range	TeSys
Utilisation Category	AC-44 AC-41 AC-43
Function Available	protection against phase failure and phase imbalance manual reset earth fault protection protection against overload and short-circuit
Tripping Threshold	14.2 x Ir +/- 20 %
Product Compatibility	power base LUB12 power base LUB32 power base LUB38 power base LUB120 power base LUB320 power base LUB380 reversing contactor breaker LU2B12FU reversing contactor breaker LU2B32FU reversing contactor breaker LU2B38FU
Product Specific Application	basic protection and advanced functions, communication
Network Frequency	40...60 Hz
Device Application	motor control motor protection
Load Type	3-phase motor self-cooled
Device Short Name	LUCD

Advanced control unit, TeSys Ultra, 3A to 12A, 3P motors, protection & diagnostic, class 20, coil 110-240VAC/DC
