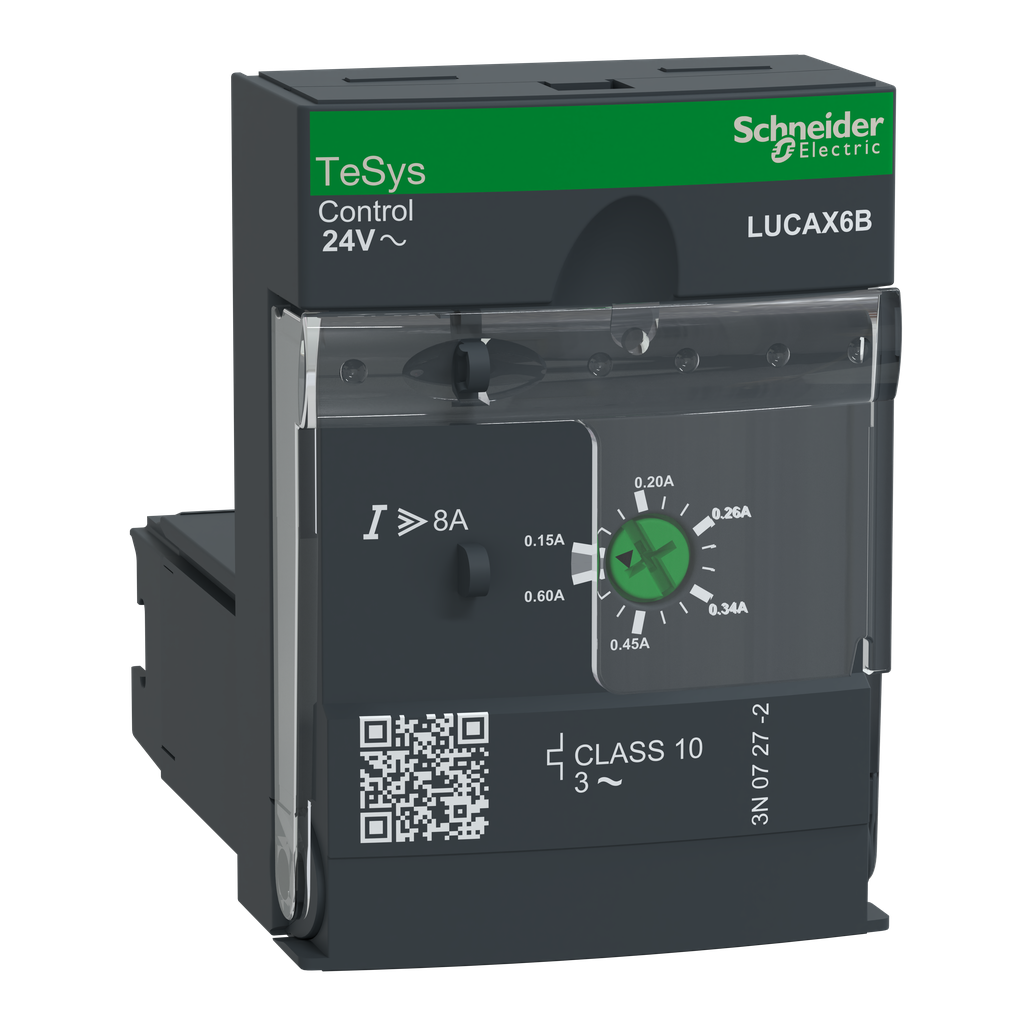

LUCAX6B
Standard control unit, TeSys Ultra, 0.15A to 0.6A, 3P motors, thermal magnetic protection, class 10, coil 24VAC
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.09kW@400V. It provides full protection to motors with a rated current Ir 0.15-0.6A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Uc] Control Circuit Voltage | 24 V AC |
|---|---|
| [Ue] Rated Operational Voltage | 690 V AC |
| Range Of Product | TeSys Ultra |
| Phase Failure Sensitivity | yes |
| Thermal Protection Adjustment Range | 0.15-0.6 A |
| Product Or Component Type | standard control unit |
| Product Name | TeSys Ultra |
| Thermal Overload Class |
|
| Motor Power Kw | 0.09 kW 400...440 V AC 50/60 Hz |
| Range | TeSys |
| Utilisation Category |
|
| Function Available |
|
| Tripping Threshold | 14.2 x Ir +/- 20 % |
| Product Compatibility |
|
| Product Specific Application | basic protection requirements for motor starters: overload and short-circuit |
| Network Frequency | 40...60 Hz |
| Load Type | 3-phase motor self-cooled |
| Device Application |
|
| Device Short Name | LUCA |
| Warranty | 18 months |
| Product Certifications |
|
| Height | 66 mm |
| Net Weight | 0.135 kg |
| Fixing Mode | plug-in front face) |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Standards |
|
| Typical Current Consumption |
|
| [Ui] Rated Insulation Voltage |
|
| Compatibility Code | LUCA |
| Control Circuit Voltage Limits |
|
| Operating Time |
|
| Width | 45 mm |
| Safe Separation Of Circuit |
|
| Depth | 60 mm |
| Heat Dissipation |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP080204EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI100414 |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -25-70 °C |
| Resistance To Radiated Fields | 10 V/m 3 IEC 61000-4-3 |
| Non-Dissipating Shock Wave |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Immunity To Microbreaks | 3 ms |
| Immunity To Voltage Dips | 70 % / 500 ms IEC 61000-4-11 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Protective Treatment | TH IEC 60068 |
| Resistance To Electrostatic Discharge |
|
| Operating Altitude | 6561.68 ft (2000 m) |
| Fire Resistance |
|
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Resistance To Fast Transients |
|
