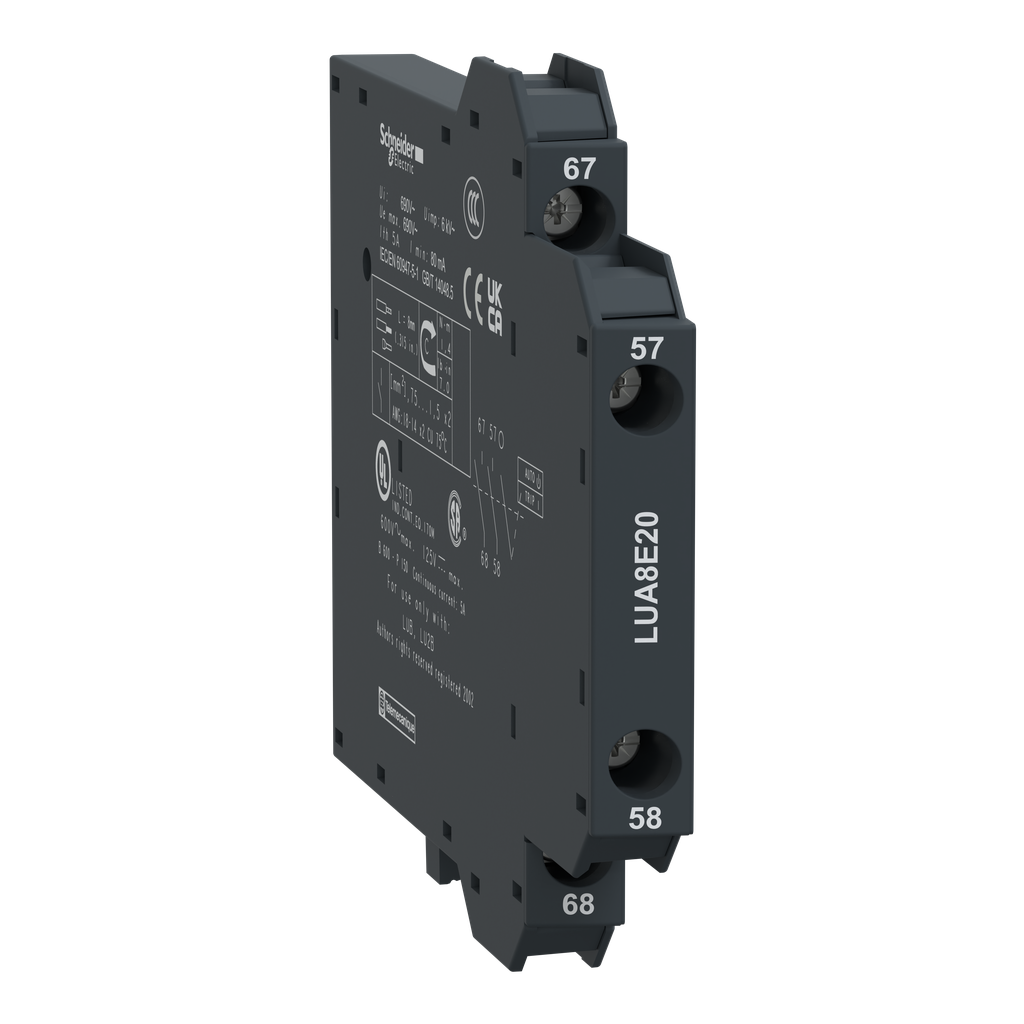

LUA8E20
Auxiliary contact, TeSys Ultra, 2NO, 690VAC/DC, for Start-stop signalling, Screw clamp terminals
TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 2NO contacts for open/close status (OF contact), rated up to 5A 250V AC/DC. To be clipped on the left-hand side of the power base. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Country of Origin | Mexico |
| Weight | 0.048 kg |
| Product Or Component Type | auxiliary contact |
| Range | TeSys |
| Device Short Name | LUA8 |
| Signalling Function | start-stop |
| Auxiliary Contact Composition | 2 NO |
| [Ue] Rated Operational Voltage |
|
| [Ith] Conventional Free Air Thermal Current | 5 A |
| Connections - Terminals | screw clamp terminals |
| Net Weight | 0.048 kg |
| Minimum Switching Current | 80 mA |
| Minimum Switching Voltage | 17 V |
| Warranty | 18 months |
