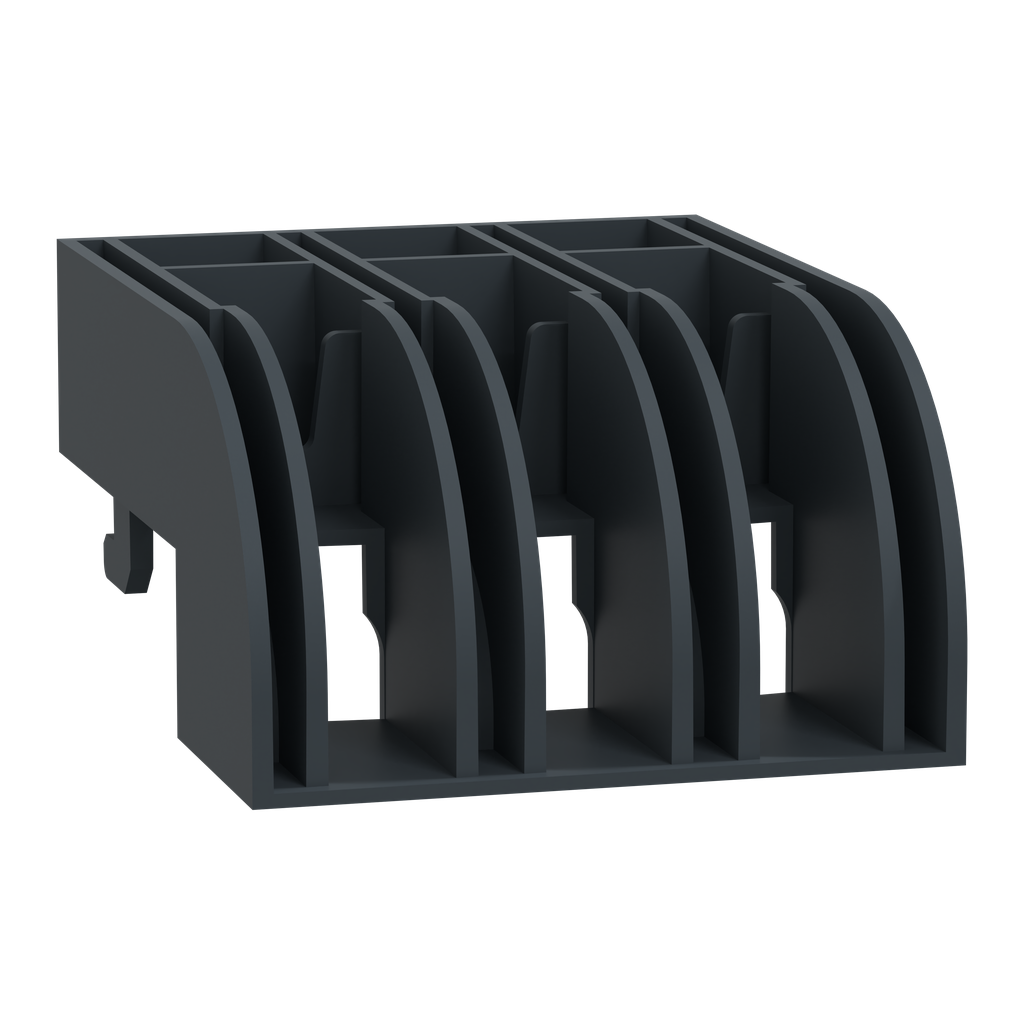

LU9SP0
Incoming line phase barrier, TeSys Ultra
TeSys U phase barrier for use with power bases LUB12, LUB32, LUB38, LUB120, LUB320, LUB380 or a limiter block LUALB1. It ensures a complementary electrical insulation between phases. Compulsory for use with a 690V AC network and with a 440 V AC network when assembling a UL508 type E compliant motor starter (Self Protected Starter). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Country of Origin | Czechia |
| Weight | 0.03 kg |
| Product Or Component Type | phase barrier |
| Range | TeSys |
| Device Short Name | LU9 |
| Mounting Support | terminals |
| Net Weight | 0.03 kg |
| Product Compatibility |
|
| Warranty | 18 months |
