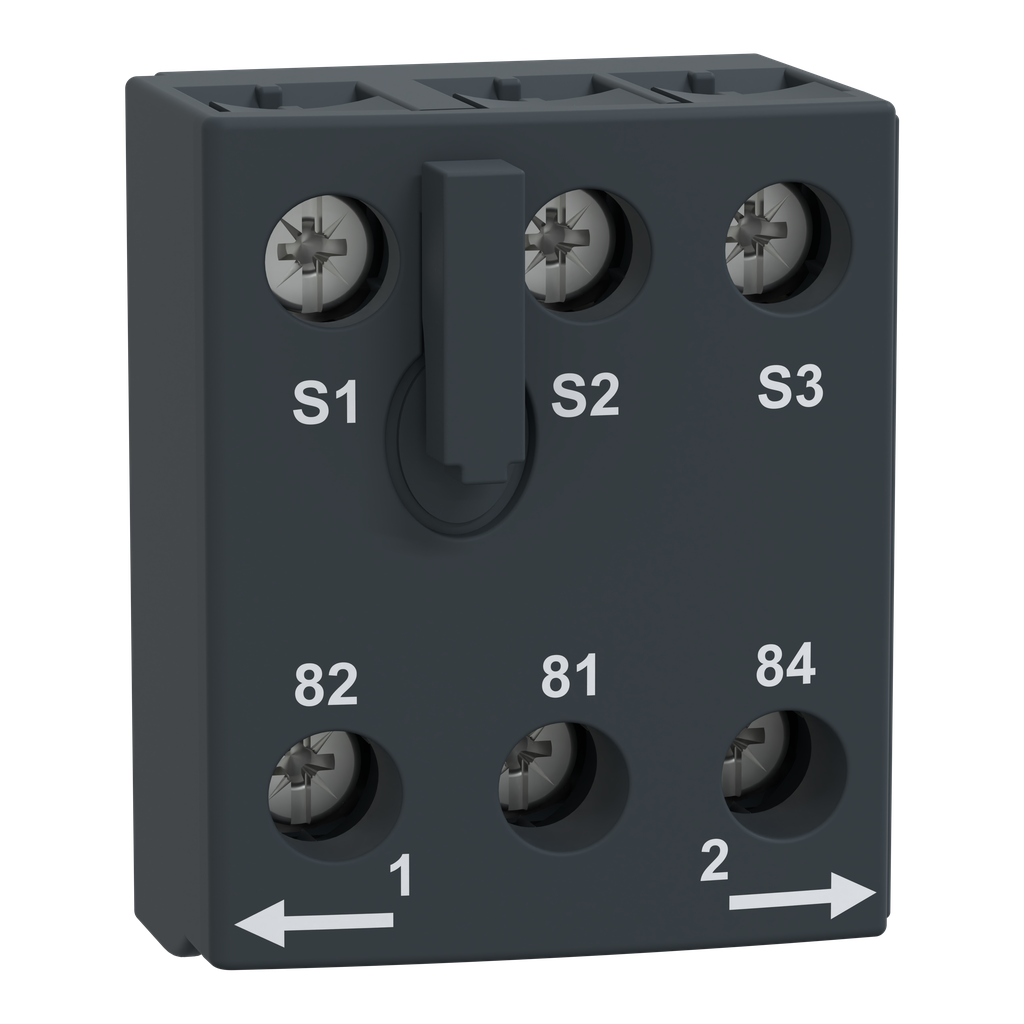

LU9MR1
Control terminal block, reversing motor starter, TeSys Ultra
TeSys U assembling connector between a reverser block LU6M* and power bases LUB120, LUB320, LUB380 in side mounting. It provides screw clamp terminals for the wiring of the FW/RV/OFF control circuit (2 directions of rotation). Requires the use of the terminal block LU9BN11 to be inserted in the power base (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Weight | 0.03 kg |
| Product Or Component Type | control terminal block |
| Range | TeSys |
| Product Compatibility | LU6MB0.. |
| Device Short Name | LU9MR |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
| Net Weight | 0.03 kg |
Documents
- TeSys U - LU2B./LU2M./LU6M. - TeSys U reversing power bases - Instruction sheet - 163884301A05-12 (pdf)
- Spec Sheet
- TeSys U-Line Motor Starters Catalog - 8502CT0201 (pdf)
- IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf)
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
