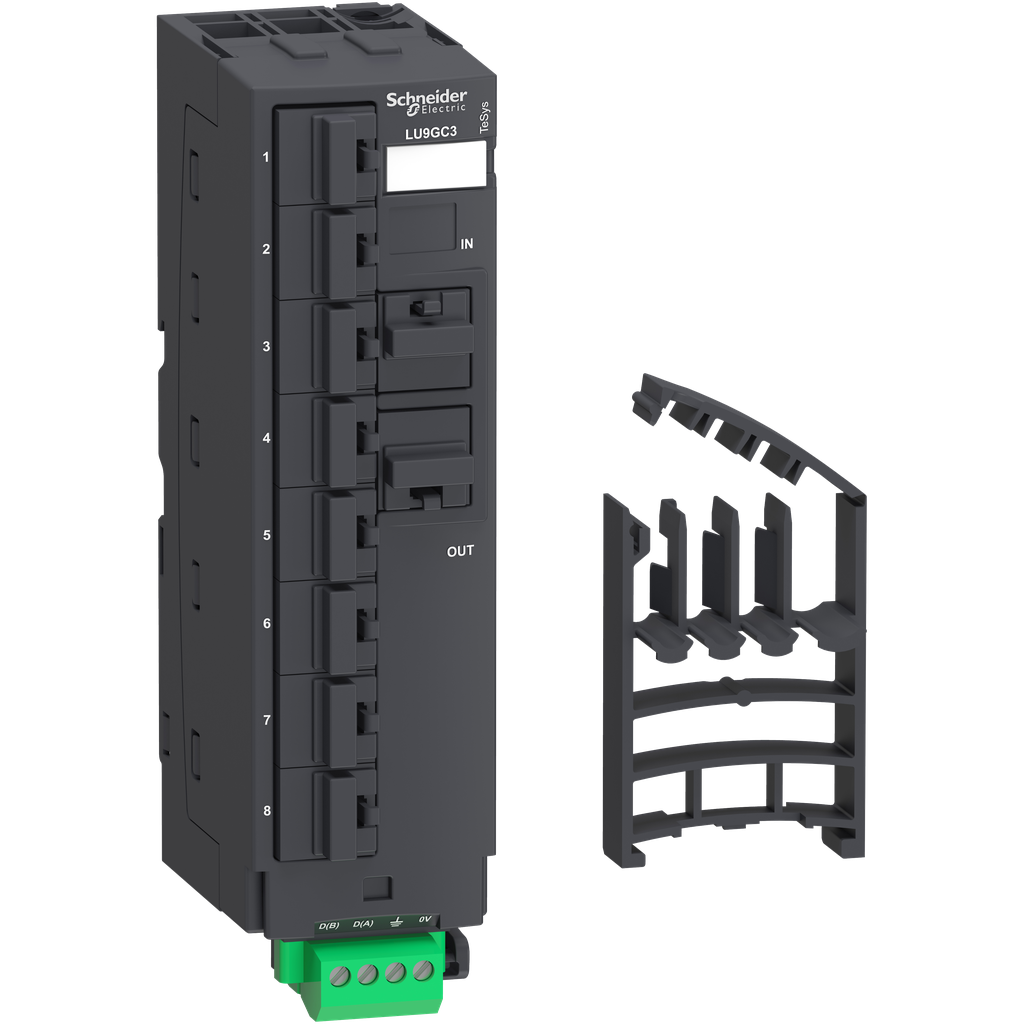

LU9GC3
Modbus hub, TeSys Ultra, 10 RJ45 and 1 screw terminal block
TeSys U Modbus communication splitter box with 10 x RJ45 connectors and 1 screw terminal block. On front side, it provides 8 x RJ45 connectors for tap-off and 2 x RJ45 connectors for daisy chain. On the underside, it provides a 4-point screw terminal block for Modbus trunk cable connection. To be clipped on a 35mm DIN rail or fixed by 2 screws on panel. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | United States |
| Weight | 0.26 kg |
| Product Or Component Type | Modbus hub |
| Range | TeSys |
| Device Short Name | LU9G |
| Maximum Number Of Connections | 8 |
| Net Weight | 0.26 kg |
| Warranty | 18 months |
