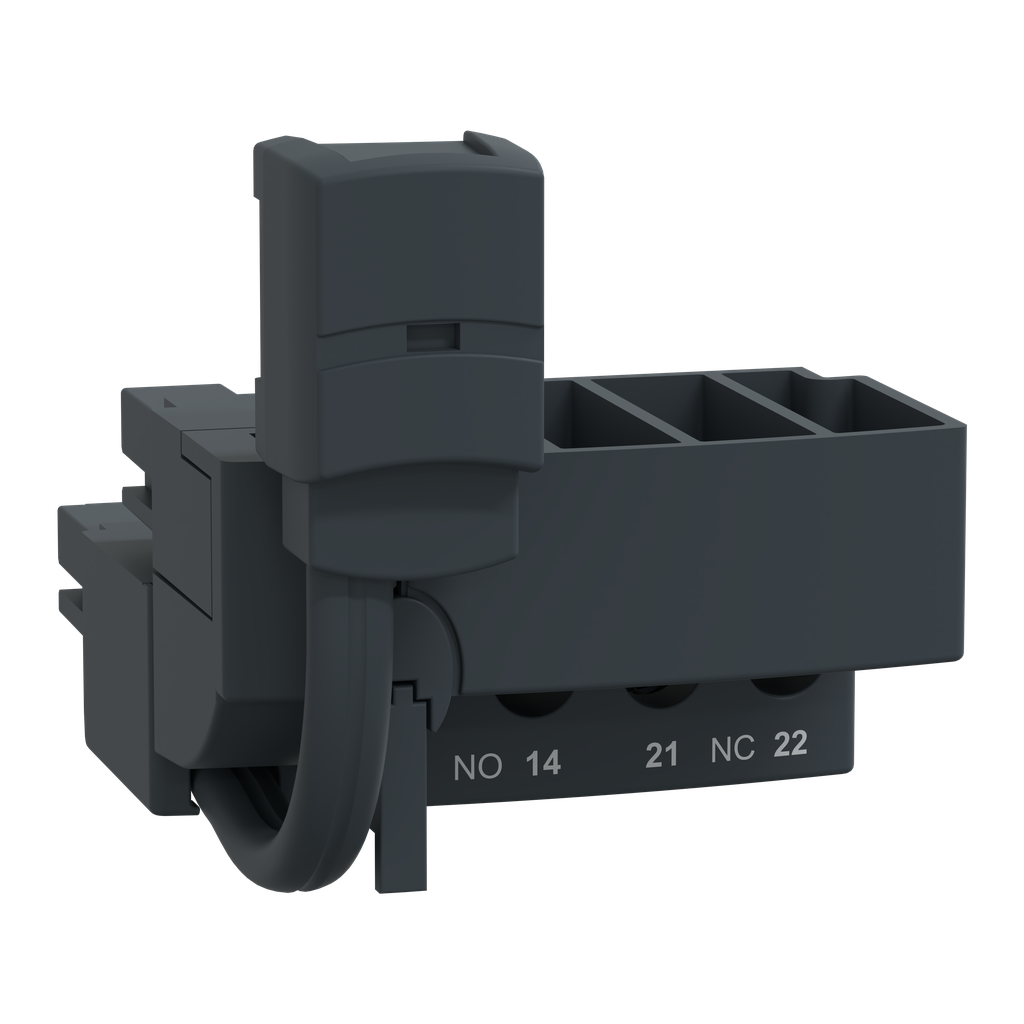

LU9BN11L
Prewired connection, Tesys Ultra, for LUB - coil to communication module - Profibus
TeSys U control terminal block to be inserted in power bases LUB120, LUB320, LUB380 for the centralized control of a starter controller. To be used for ON/OFF control of one direction motor applications with Profibus DP, CANopen, DeviceNet, Advantys STB remote control. It provides screw clamp terminals to connect the internal auxiliary contacts 1NO+1NC, and a pre-wired control cable to be connected to a communication module LULC07, LULC08, LULC09, LULC15 (to be ordered separately). It is powered by the associated communication module. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Sweden |
|---|---|
| Weight | 0.05 kg |
| Product Or Component Type | pre-wired coil connection |
| Range | TeSys |
| Product Compatibility | LUB.. |
| Device Short Name | LU9B |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Net Weight | 0.05 kg |
| Bus Type |
|
| Warranty | 18 months |
Documents
- TeSys U - LULC09, DeviceNet Communication Module - Instruction sheet - 163954701A50-09 (pdf)
- TeSys U - LULC15, Advantys STB Communication Module - Instruction sheet - 163954601A05-08 (pdf)
- TeSys U - LULC08, CANopen Communication Module - Instruction sheet - 163954501A05-09 (pdf)
- TeSys U - LULC07, Profibus DP communication module - Instruction sheet - 163954401A05-07 (pdf)
- TeSys U - LUFC00, ASILUFC51, LULC033 - Wiring of communication module - Instruction Sheet - 174323901A05-09 (pdf)
- TeSys U Motor Control and Protection Brochure - 8505BR1602 (pdf)
- Spec Sheet
- IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf)
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
