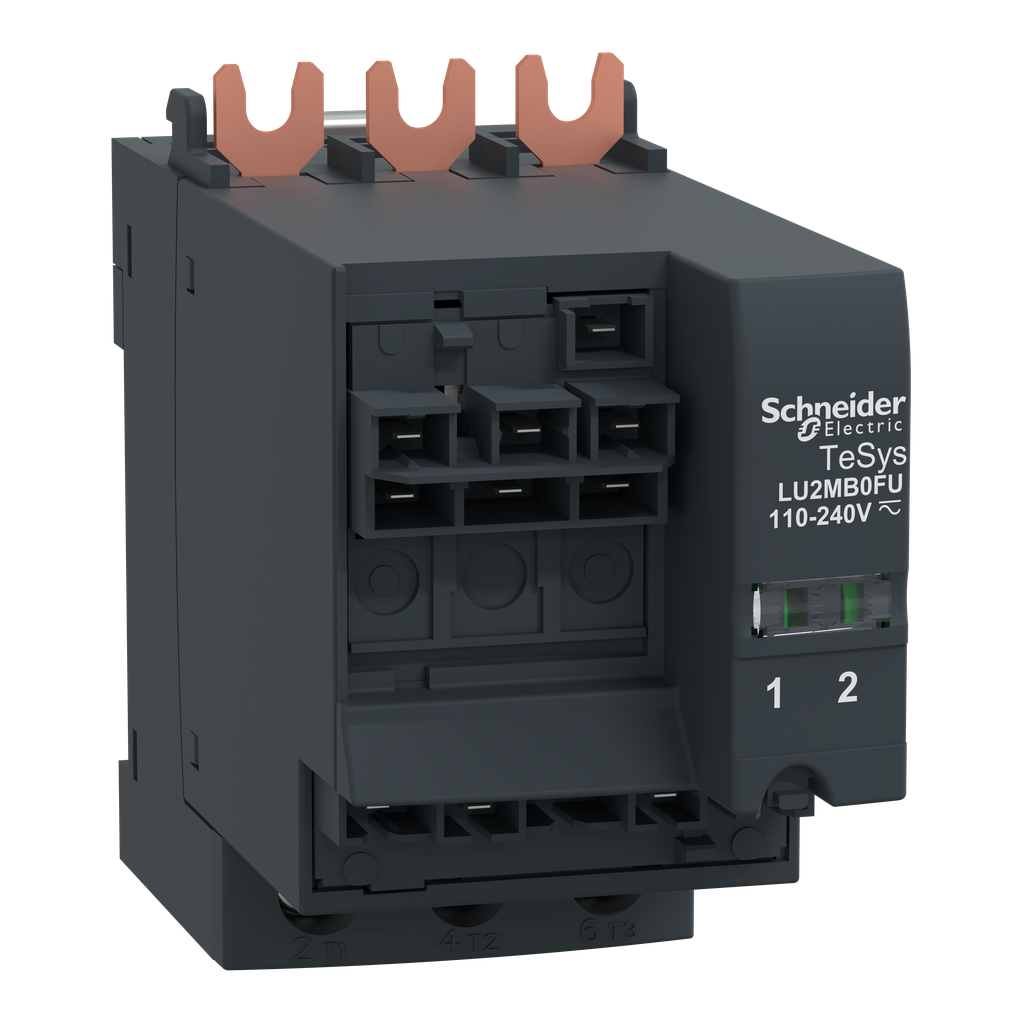

LU2MB0FU – Reverser block for vertical mounting, TeSys Ultra, 38A/690V, coil 110-240VAC/DC
LU2MB0FU
Reverser block for vertical mounting, TeSys Ultra, 38A/690V, coil 110-240VAC/DC

TeSys U reversing module for vertical mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 110-240V AC / 110-220V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*FU type. To be associated with an assembling connector LU9MR1C and a control terminal block LU9M1 to complete the vertical mounting. Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation
  • -25-60 °C with LUCM
  • -25-70 °C with LUCA, LUCB, LUCC, LUCD
Resistance To Radiated Fields 10 V/m level 3 IEC 61000-4-3
Non-Dissipating Shock Wave
  • 1 kV serial mode IEC 60947-6-2
  • 2 kV common mode IEC 60947-6-2
Shock Resistance
  • 10 gn power poles open IEC 60068-2-27
  • 15 gn power poles closed IEC 60068-2-27
Vibration Resistance
  • 2 gn 5-300 Hz) power poles open IEC 60068-2-27
  • 4 gn 5-300 Hz) power poles closed IEC 60068-2-27
Ambient Air Temperature For Storage -40-85 °C
Protective Treatment TH IEC 60068
Ip Degree Of Protection
  • IP20 IEC 60947-1 front panel and wired terminals)
  • IP20 IEC 60947-1 other faces)
  • IP40 IEC 60947-1 front panel outside connection zone)
Resistance To Electrostatic Discharge
  • 8 kV level 3, in open air IEC 61000-4-2
  • 8 kV level 4, on contact IEC 61000-4-2
Operating Altitude 6561.68 ft (2000 m)
Fire Resistance
  • 960 °C parts supporting live components IEC 60695-2-12
  • 650 °C IEC 60695-2-12
Immunity To Radioelectric Fields 10 V IEC 61000-4-6
Resistance To Fast Transients
  • 2 kV 3 serial link IEC 61000-4-4
  • 4 kV 4 all circuits except for serial link IEC 61000-4-4
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive Compliant with Exemptions
Product Certifications
  • CE
  • UL
  • CSA
  • CCC
  • EAC
  • ASEFA
  • ATEX
  • Marine
[Ue] Rated Operational Voltage 690 V AC power circuit
Height 80 mm
Connections - Terminals
  • control circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable end
  • control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end
  • control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid
  • control circuit screw clamp terminals 2 0.34-1.5 mm² 3 mm) flexible with cable end
  • control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) flexible without cable end
  • control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) rigid
  • power circuit screw clamp terminals 1 1-10 mm² 4 mm) rigid
  • power circuit screw clamp terminals 1 1-6 mm² 4 mm) flexible with cable end
  • power circuit screw clamp terminals 1 2.5-10 mm² 4 mm) flexible without cable end
  • power circuit screw clamp terminals 2 1-6 mm² 4 mm) flexible with cable end
  • power circuit screw clamp terminals 2 1-6 mm² 4 mm) rigid
  • power circuit screw clamp terminals 2 1.5-6 mm² 4 mm) flexible without cable end
Net Weight 0.4 kg
Fixing Mode plug-in
[Uimp] Rated Impulse Withstand Voltage 6 kVIEC 60947-6-2
Inrush Restraint Duration
  • 25 ms AC
  • 15 ms DC
Standards
  • EN 60947-6-2
  • IEC 60947-6-2
  • UL 60947-4-1, with phase barrier
  • CSA C22.2 No 60947-4-1, with phase barrier
[Ui] Rated Insulation Voltage
  • 690 V IEC 60947-6-2
  • 600 V UL 60947-4-1
  • 600 V CSA C22.2 No 60947-4-1
Compatibility Code LU2MB
Operating Time
  • 150 ms with change of direction
  • 75 ms without change of direction
Width 45 mm
Tightening Torque
  • control circuit 0.8-1.2 N.m flat 5 mm
  • control circuit 0.8-1.2 N.m Philips No 2 5 mm
  • power circuit 1.9-2.5 N.m flat 6 mm
  • power circuit 1.9-2.5 N.m Philips No 2 6 mm
Depth 105 mm
Network Frequency 40...60 Hz
Country of Origin France
Width 45 mm
Height 80 mm
Weight 0.4 kg
Device Mounting direct mounting
[Uc] Control Circuit Voltage
  • 110...240 V AC 50/60 Hz
  • 110...220 V DC
Product Or Component Type reverser block
Current Consumption
  • 1000 mA 110...220 V DC I maximum while closing
  • 1000 mA 110...240 V AC I maximum while closing
Range TeSys
[Ie] Rated Operational Current 38 A
Device Application motor control
Device Short Name LU2MB
