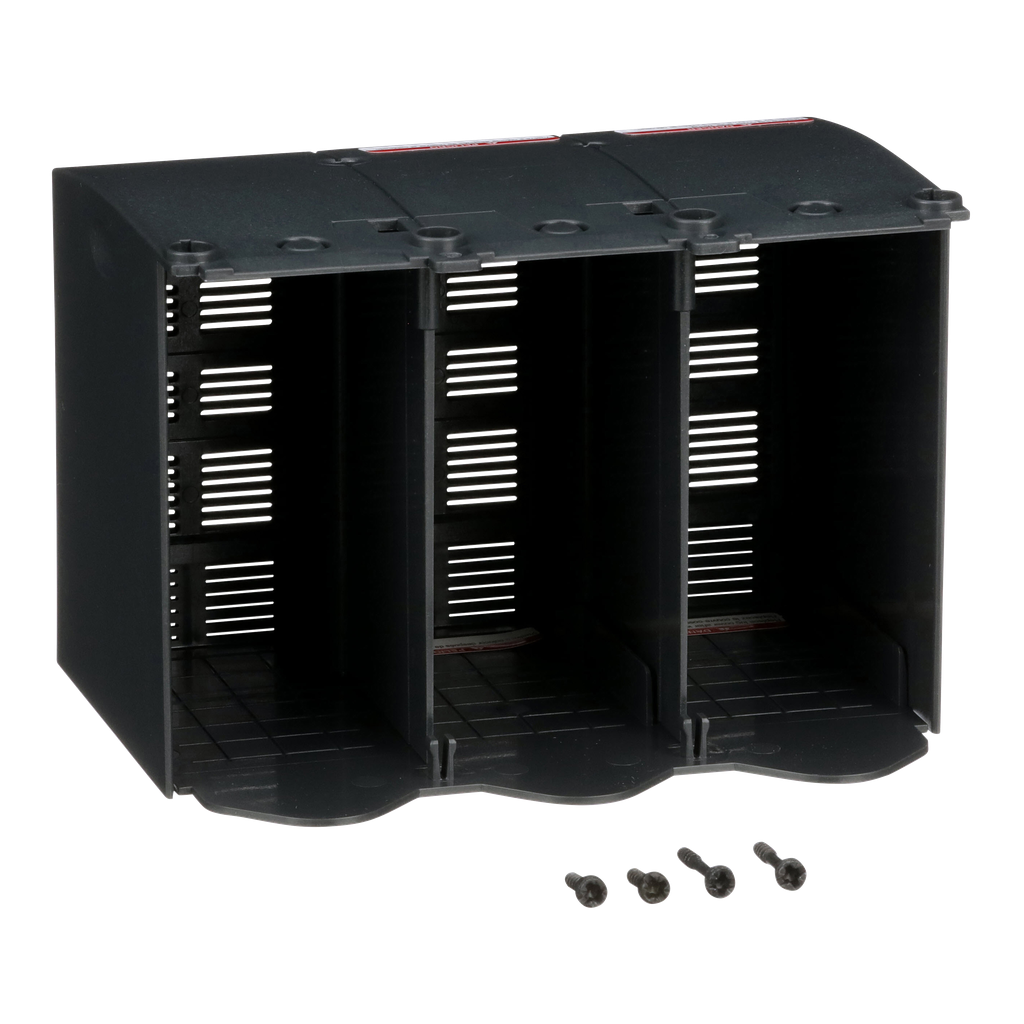

LTSL3P
Circuit breaker accessory, PowerPacT L, shield, terminal, long, 3 pole
This terminal shield is a PowerPacT L circuit breaker accessory. This long shield is for three phase devices. The shield complies with UL, CSA, and IEC standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 5.65 in |
|---|---|
| Tightening Torque | 0.9-1 N.m |
| Electrical Connection | terminal, terminals |
| Mounting Mode | clip-on |
| Poles Description | 3P |
| Width | 5.51 in |
| Depth | 3.76 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | United States |
| Width | 5.51 in |
| Height | 5.65 in |
| Range Of Product | PowerPact L |
| Product Or Component Type | terminal shield |
| Product Certifications |
|
