LTMR08DBD - Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24VDC

LTMR08DBD

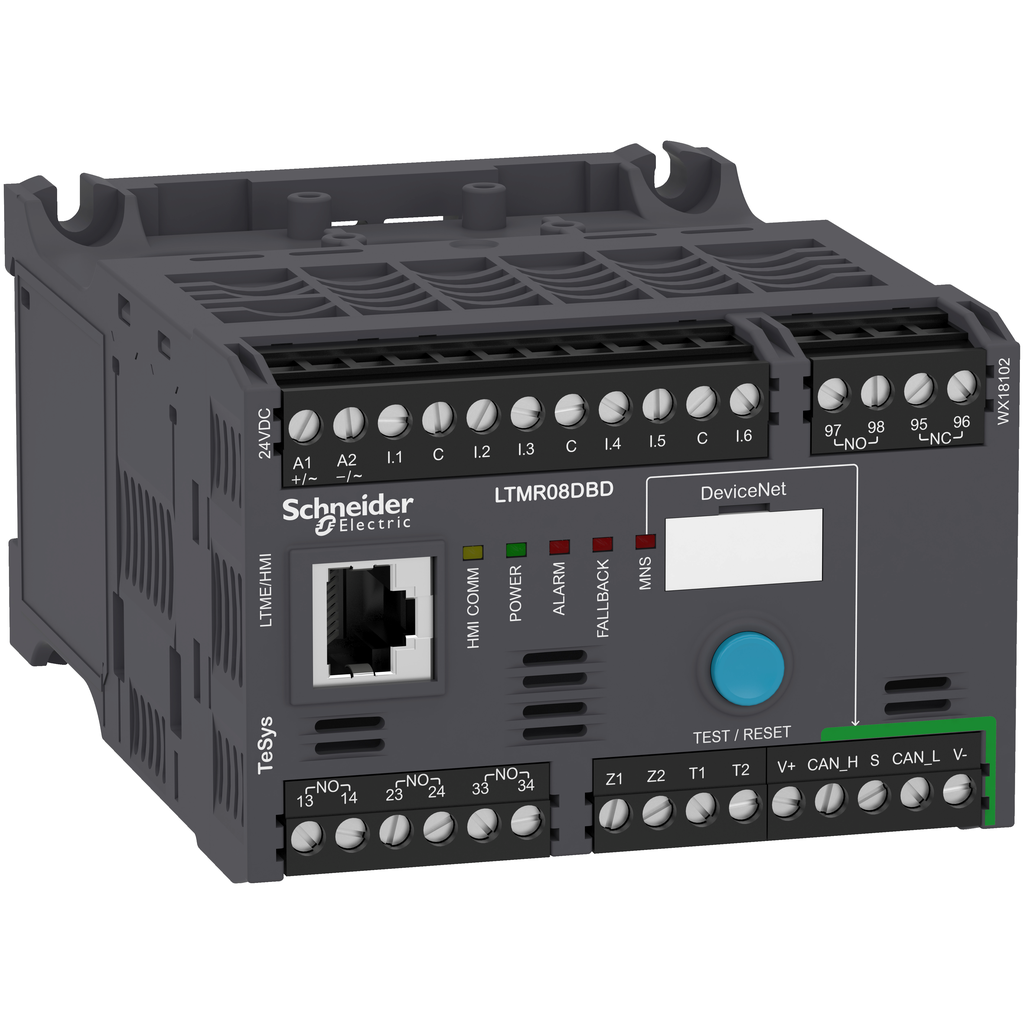

Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24VDC

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. DeviceNet protocol is used by this controller. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 0.4 to 8 amperes. 24 VDC is used to power this controller. Controller is 2.40 inches tall, 3.58 inches wide and 4.82 inches deep. Controller weighs 1.17 lbs. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Or Component Type	motor controller
Product Name	TeSys T
Measurement Current	0.4-8 A
Range	TeSys
Current Consumption	56...127 mA
[Us] Rated Supply Voltage	24 V DC
Communication Port Protocol	DeviceNet
Bus Type	DeviceNet ISO 1198 1...64 125...500 kbit/s, terminal block 4 twisted shielded pairs cable
Supply Voltage Limits	20.4-26.24 V DC
Device Application	equipment monitoring and control
Device Short Name	LTMR
Warranty	18 months
Contacts Type And Composition	1 NO + 1 NC fault signal 3 NO
Height	61 mm
Connection Pitch	5.08 mm
Permissible Power	480 VA AC-15), Ie = 2 A, 500000 cycles output) 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Network And Machine Diagnosis Type	fault recording waiting time after overload tripping remaining operating time before overload tripping phase fault and earth fault trip counters starting current and time trip history information trip context information motor control command recording running hours counter/operating time event recording
Pollution Degree	3
Logic Input Number	6
Maximum Operating Rate	1800 cyc/h
Connections - Terminals	control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable end
Input Current	7 mA
Current State 1 Guaranteed	logic input < 15 V 2...15 mA 15 ms
Net Weight	0.53 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV current or voltage measurement circuit EN/IEC 60947-4-1 0.8 kV communication circuit EN/IEC 60947-4-1 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
Associated Fuse Rating	4 A gG output 0.5 A gG control circuit
Electromagnetic Compatibility	electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5
Measurement Accuracy	5...15 % earth fault current internal measurement 1 % voltage 100...830 V) 3 % power factor 5 % earth fault current external measurement +/- 30 min/year internal clock 0,02 Temperature 1 % current 5 % active and reactive power
Current State 0 Guaranteed	logic input < 5 V <= 15 mA 5 ms
[Ui] Rated Insulation Voltage	690 V EN/IEC 60947-1 690 V CSA C22.2 No 14 690 V UL 508
Short-Circuit Withstand	100 kA conforming to EN/IEC 60947-4-1
Compatibility Code	LTMR
Protection Type	thermal overload protection overload power factor variation reverse polarity protection earth-leakage protection thermal protection overload (long time) phase failure load fluctuation phase unbalance locked rotor
Web Services	web server
Width	91 mm
Load Current	5 A 250 V AC logic output 5 A 30 V DC logic output
Tightening Torque	control circuit 0.5-0.6 N.m flat 3 mm
Overvoltage Category	III
Depth	122.5 mm
Maximum Operating Frequency	2 Hz
Metering Type	phase current I1, I2, I3 RMS temperature earth-fault current average current Iavg imbalance current
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP060308EN_V2
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI100411EN_V2
Eu Rohs Directive	Compliant
Halogen Content Performance	Halogen free plastic parts product
Product Certifications	LROS (Lloyds register of shipping) DNV GL UL C-tick BV CSA ATEX RINA KERI CCC ABS EAC RMRoS NOM
Mechanical Robustness	vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6 shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
Ambient Air Temperature For Operation	-20-60 °C
Standards	EN 60947-4-1 CSA C22.2 No 14 UL 508 IACS E10 IEC 60947-4-1
Ambient Air Temperature For Storage	-40-80 °C
Protective Treatment	12 x 24 hour cycles EN/IEC 60068-2-30 48 h EN/IEC 60070-2-11 TH EN/IEC 60068
Operating Altitude	<= 6561.68 ft (2000 m) without derating
Fire Resistance	650 °C EN/IEC 60695-2-12 960 °C UL 94
Ip Degree Of Protection	IP20
