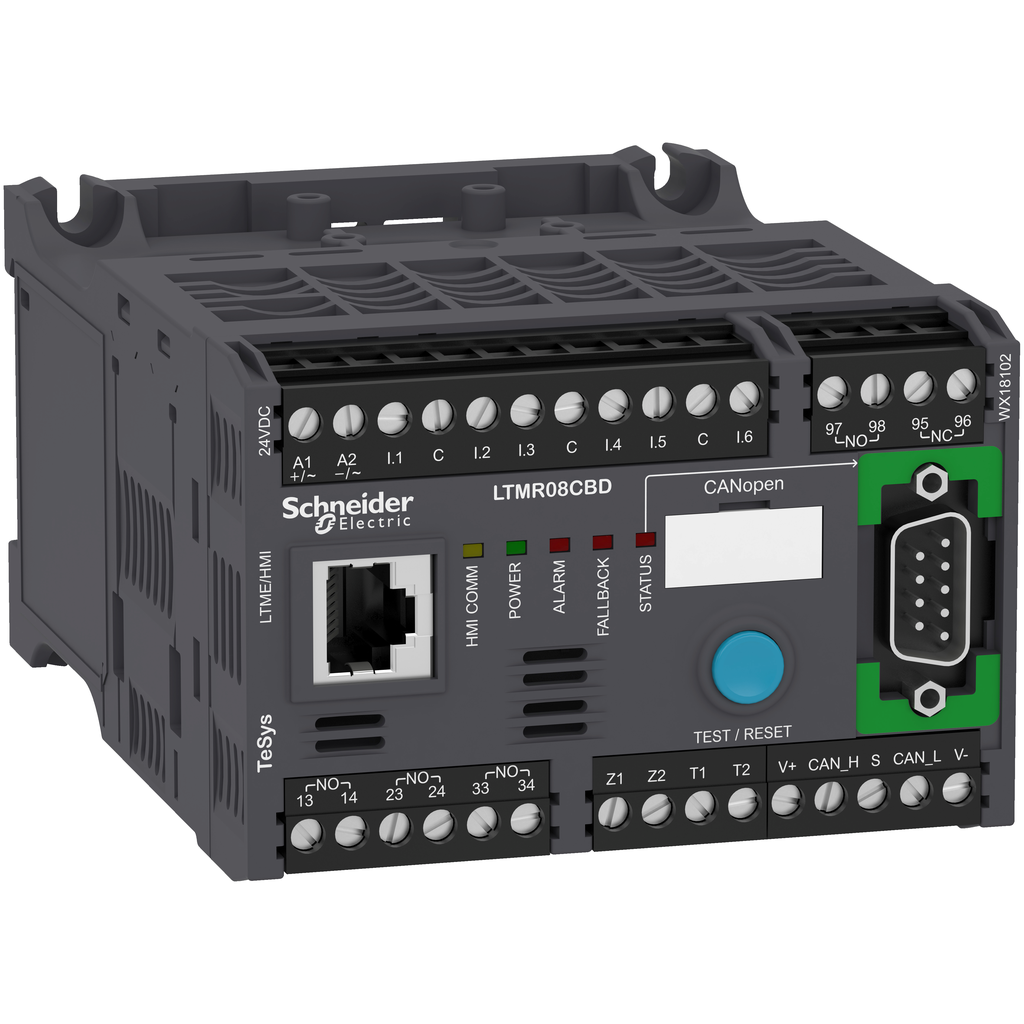

LTMR08CBD – Motor Management, TeSys T, motor controller, CANopen, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24 VDC
LTMR08CBD
Motor Management, TeSys T, motor controller, CANopen, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24 VDC

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Or Component Type motor controller
Product Name TeSys T
Measurement Current 0.4-8 A
Range TeSys
Current Consumption 56...127 mA
[Us] Rated Supply Voltage 24 V DC
Communication Port Protocol CANopen
Bus Type
  • CANopen ISO 1198 1...127 10...1000 kbit/s, SUB-D 9 4 twisted shielded pairs cable
  • CANopen ISO 1198 1...127 10...1000 kbit/s, terminal block 4 twisted shielded pairs cable
Supply Voltage Limits 20.4-26.24 V DC
Device Application equipment monitoring and control
Device Short Name LTMR
Warranty 18 months
Contacts Type And Composition
  • 1 NO + 1 NC fault signal
  • 3 NO
Height 61 mm
Connection Pitch 5.08 mm
Permissible Power
  • 480 VA AC-15), Ie = 2 A, 500000 cycles output)
  • 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Network And Machine Diagnosis Type
  • trip context information
  • remaining operating time before overload tripping
  • starting current and time
  • event recording
  • motor control command recording
  • running hours counter/operating time
  • waiting time after overload tripping
  • trip history information
  • phase fault and earth fault trip counters
  • fault recording
Pollution Degree 3
Logic Input Number 6
Maximum Operating Rate 1800 cyc/h
Connections - Terminals
  • control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end
  • control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end
  • control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end
  • control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end
  • control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end
  • control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end
  • control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end
  • control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable end
Input Current 7 mA
Current State 1 Guaranteed logic input < 15 V 2...15 mA 15 ms
Net Weight 0.53 kg
[Uimp] Rated Impulse Withstand Voltage
  • 6 kV current or voltage measurement circuit EN/IEC 60947-4-1
  • 0.8 kV communication circuit EN/IEC 60947-4-1
  • 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
Associated Fuse Rating
  • 4 A gG output
  • 0.5 A gG control circuit
Electromagnetic Compatibility
  • electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
  • control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5
  • communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
  • relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5
  • relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5
  • radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3
  • fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4
  • fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4
  • voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11
  • conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6
  • temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5
  • temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5
  • control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5
Measurement Accuracy
  • 5...15 % earth fault current internal measurement
  • 1 % voltage 100...830 V)
  • 3 % power factor
  • 5 % earth fault current external measurement
  • +/- 30 min/year internal clock
  • 0,02 Temperature
  • 1 % current
  • 5 % active and reactive power
Current State 0 Guaranteed logic input < 5 V <= 15 mA 5 ms
[Ui] Rated Insulation Voltage
  • 690 V EN/IEC 60947-1
  • 690 V CSA C22.2 No 14
  • 690 V UL 508
Short-Circuit Withstand 100 kA conforming to EN/IEC 60947-4-1
Compatibility Code LTMR
Protection Type
  • overload (long time)
  • phase failure
  • load fluctuation
  • phase imbalance
  • reverse polarity protection
  • thermal protection
  • thermal overload protection
  • earth-leakage protection
  • power factor variation
  • overload
  • locked rotor
Web Services web server
Width 91 mm
Load Current
  • 5 A 250 V AC logic output
  • 5 A 30 V DC logic output
Tightening Torque control circuit 0.5-0.6 N.m flat 3 mm
Overvoltage Category III
Depth 122.5 mm
Maximum Operating Frequency 2 Hz
Metering Type
  • average current Iavg
  • phase current I1, I2, I3 RMS
  • temperature
  • earth-fault current
  • imbalance current
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP060308EN_V2
Sustainable Offer Status Green Premium product
Pvc Free Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI100411EN_V2
Eu Rohs Directive Compliant
Halogen Content Performance Halogen free plastic parts product
Product Certifications
  • ATEX
  • C-tick
  • EAC
  • LROS (Lloyds register of shipping)
  • NOM
  • BV
  • RINA
  • KERI
  • ABS
  • UL
  • CSA
  • DNV
  • RMRoS
  • GL
  • CCC
Mechanical Robustness
  • vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6
  • vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6
  • shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
Ambient Air Temperature For Operation -20-60 °C
Standards
  • EN 60947-4-1
  • CSA C22.2 No 14
  • IEC 60947-4-1
  • UL 508
  • IACS E10
Ambient Air Temperature For Storage -40-80 °C
Protective Treatment
  • 12 x 24 hour cycles EN/IEC 60068-2-30
  • 48 h EN/IEC 60070-2-11
  • TH EN/IEC 60068
Operating Altitude <= 6561.68 ft (2000 m) without derating
Fire Resistance
  • 650 °C EN/IEC 60695-2-12
  • 960 °C UL 94
Ip Degree Of Protection IP20
