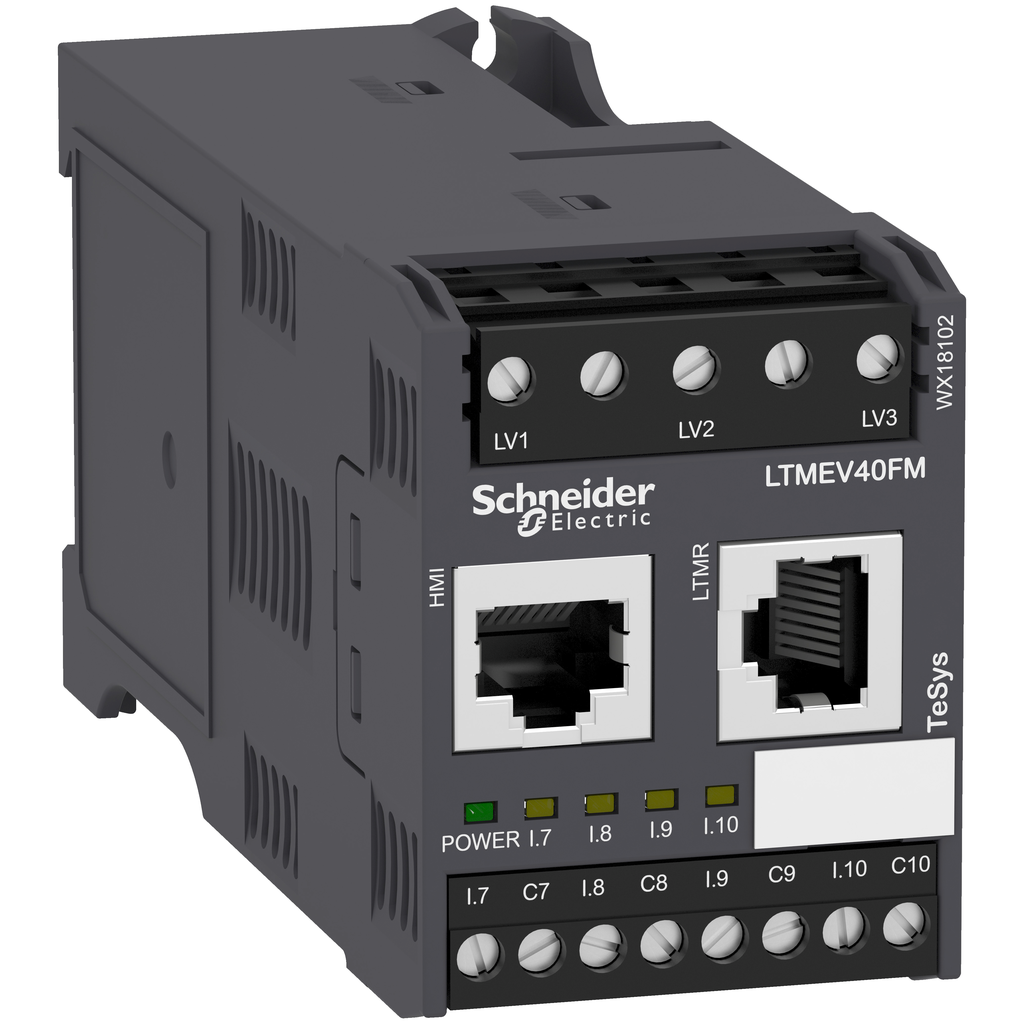

LTMEV40FM - Extension module, TeSys T, 4 inputs, 100 to 240VAC, for LTMR controller

LTMEV40FM

Extension module, TeSys T, 4 inputs, 100 to 240VAC, for LTMR controller

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 120 to 240 VAC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Compatibility	TeSys (TeSys T) LTMR motor controller
Supply	via the controller
Product Or Component Type	extension module
Product Name	TeSys T
Range	TeSys
Device Application	equipment monitoring and control
Device Short Name	LTME
Warranty	18 months
Contacts Type And Composition	without
Height	61 mm
Connection Pitch	5.08 mm
Pollution Degree	3
Logic Input Number	4
Maximum Operating Rate	1800 cyc/h
Connections - Terminals	control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable end
Input Current	3.1 mA 100 V 7.5 mA 240 V
Current State 1 Guaranteed	logic input 79...264 V <= 15 mA 25 ms
Net Weight	0.21 kg
[Uimp] Rated Impulse Withstand Voltage	4 kV supply, inputs and outputs EN/IEC 60947-4-1 6 kV current or voltage measurement circuit EN/IEC 60947-4-1
Electromagnetic Compatibility	electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
Measurement Accuracy	1 % voltage 100...830 V) 3 % power factor 5 % active and reactive power
Current State 0 Guaranteed	logic input 0...40 V 2...15 mA 25 ms
[Ui] Rated Insulation Voltage	690 V EN/IEC 60947-1 690 V CSA C22.2 No 14 690 V UL 508
Compatibility Code	LTME
Width	45 mm
Tightening Torque	control circuit 0.5-0.6 N.m flat 3 mm
Overvoltage Category	III
Depth	120.7 mm
Maximum Operating Frequency	2 Hz
Metering Type	imbalance voltage active power P, P1, P2, P3 calculated active and reactive energy (+/- W.h, +/- VAR.h) voltage U21, U32, U13, V1, V2, V3 reactive power Q, Q1, Q2, Q3 frequency power factor
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP060308EN_V2
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI100411EN_V2
Eu Rohs Directive	Compliant
Halogen Content Performance	Halogen free plastic parts product
Product Certifications	LROS (Lloyds register of shipping) ATEX NOM EAC RMRoS GL UL DNV BV RINA KERI C-tick CSA CCC ABS
Mechanical Robustness	shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6
Ambient Air Temperature For Operation	-20-60 °C
Standards	CSA C22.2 No 14 IACS E10 IEC 60947-4-1 UL 508 EN 60947-4-1
Ambient Air Temperature For Storage	-40-80 °C
Protective Treatment	12 x 24 hour cycles EN/IEC 60068-2-30 48 h EN/IEC 60070-2-11 TH EN/IEC 60068
Operating Altitude	<= 6561.68 ft (2000 m) without derating
Fire Resistance	650 °C EN/IEC 60695-2-12 960 °C UL 94
Ip Degree Of Protection	IP20
