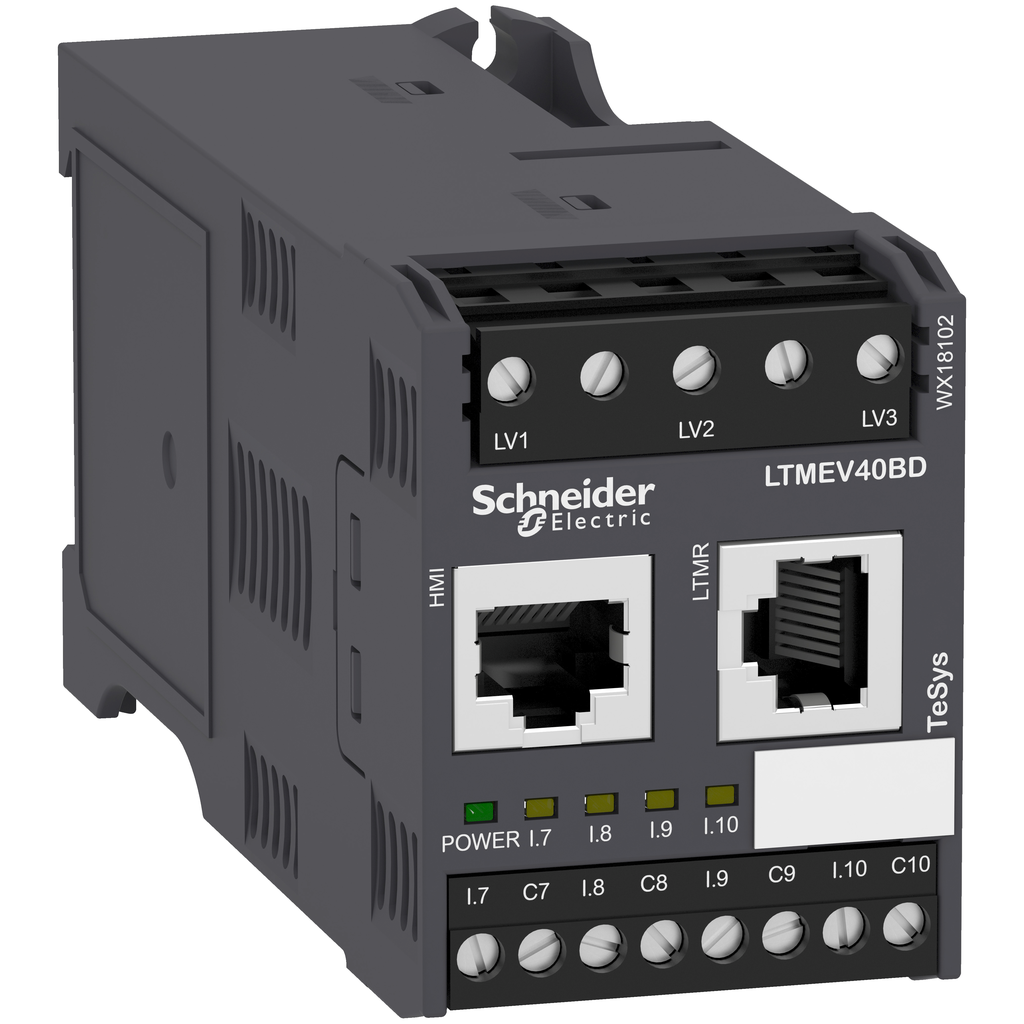

LTMEV40BD - Extension module, TeSys T, 4 inputs, 24VDC, for LTMR controller

LTMEV40BD

Extension module, TeSys T, 4 inputs, 24VDC, for LTMR controller

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 24 VDC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL NOM ATEX BV CSA EAC RINA LROS (Lloyds register of shipping) DNV ABS GL KERI RMRoS C-tick CCC
Mechanical Robustness	shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6
Ambient Air Temperature For Operation	-20-60 °C
Standards	IEC 60947-4-1 UL 508 EN 60947-4-1 IACS E10 CSA C22.2 No 14
Ambient Air Temperature For Storage	-40-80 °C
Protective Treatment	12 x 24 hour cycles EN/IEC 60068-2-30 48 h EN/IEC 60070-2-11 TH EN/IEC 60068
Operating Altitude	<= 6561.68 ft (2000 m) without derating
Fire Resistance	650 °C EN/IEC 60695-2-12 960 °C UL 94
Ip Degree Of Protection	IP20
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP060308EN_V2
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI100411EN_V2
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Contacts Type And Composition	without
Height	61 mm
Connection Pitch	5.08 mm
Pollution Degree	3
Logic Input Number	4
Maximum Operating Rate	1800 cyc/h
Connections - Terminals	control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable end
Input Current	7 mA
Current State 1 Guaranteed	logic input < 15 V 2...15 mA 15 ms
Net Weight	0.21 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV current or voltage measurement circuit EN/IEC 60947-4-1 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
Electromagnetic Compatibility	electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5
Measurement Accuracy	1 % voltage 100...830 V) 3 % power factor 5 % active and reactive power
Current State 0 Guaranteed	logic input < 5 V <= 15 mA 5 ms
[Ui] Rated Insulation Voltage	690 V EN/IEC 60947-1 690 V CSA C22.2 No 14 690 V UL 508
Compatibility Code	LTME
Width	45 mm
Tightening Torque	control circuit 0.5-0.6 N.m flat 3 mm
Overvoltage Category	III
Depth	120.7 mm
Maximum Operating Frequency	2 Hz
Metering Type	voltage U21, U32, U13, V1, V2, V3 imbalance voltage frequency calculated active and reactive energy (+/- W.h, +/- VAR.h) reactive power Q, Q1, Q2, Q3 power factor active power P, P1, P2, P3
Country of Origin	United States
Width	45 mm
Height	61 mm
Weight	0.21 kg
Range Compatibility	TeSys TeSys T LTMR motor controller
Supply	via the controller
Product Or Component Type	extension module
Product Name	TeSys T
Range	TeSys
Device Application	equipment monitoring and control
Device Short Name	LTME
