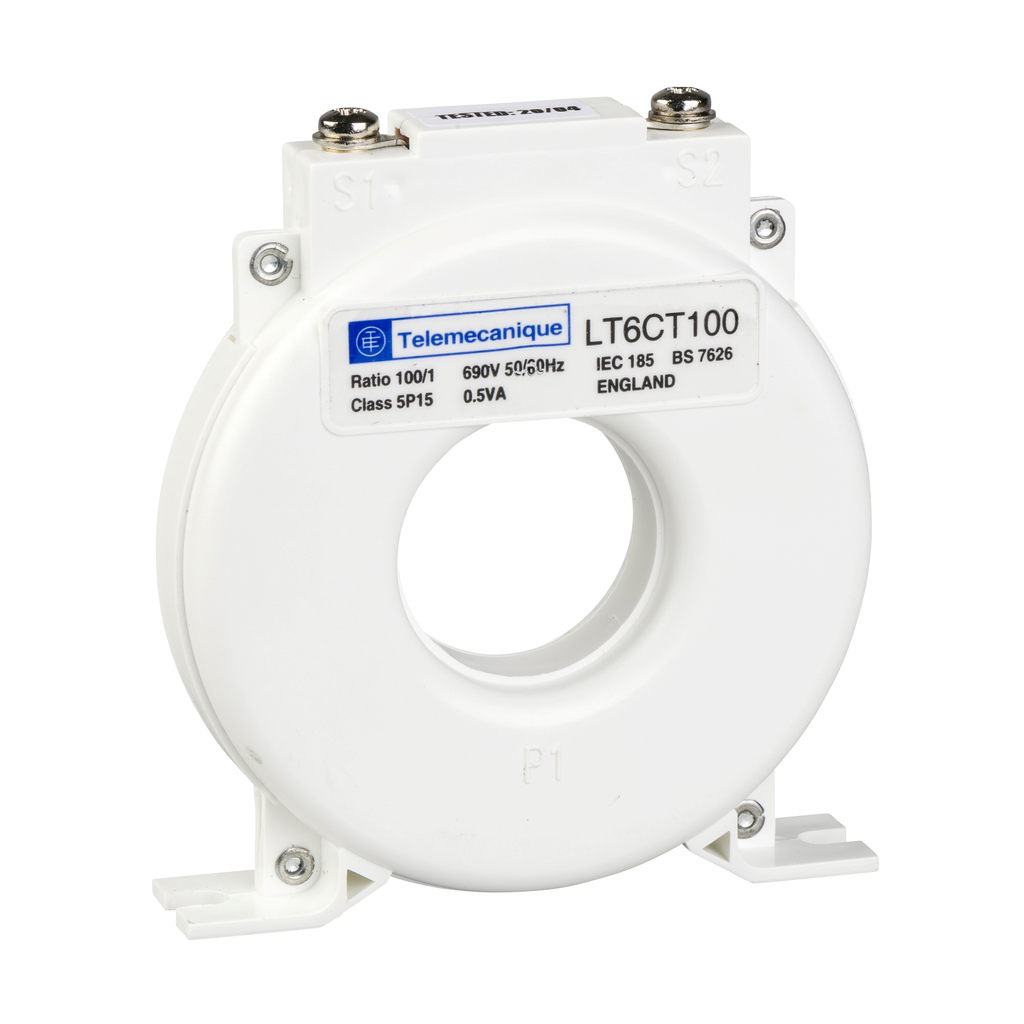

LT6CT1001 - Current transformer, TeSys T, LT6CT, 100/1 ratio, class 5P

LT6CT1001

Add to Quote Catalogue

Standards	IEC 60185 BS 7626
Maximum Ambient Air Temperature For Operation	50 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP060201EN
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI110101
Eu Rohs Directive	Compliant
Height	107 mm
Diameter	35 mm
[Ui] Rated Insulation Voltage	690 V
Net Weight	0.55 kg
Current Transformer Ratio	100/1
Cable Cross Section	30-30 mm²
Accuracy Class	class 5P
Precision Limit Factor	15
Width	95 mm
Depth	25 mm
Country of Origin	United Kingdom
Width	95 mm
Height	107 mm
Weight	0.55 kg
Range Compatibility	TeSys TeSys T motor controller
Product Or Component Type	current transformer
Range	TeSys
Device Short Name	LT6CT
