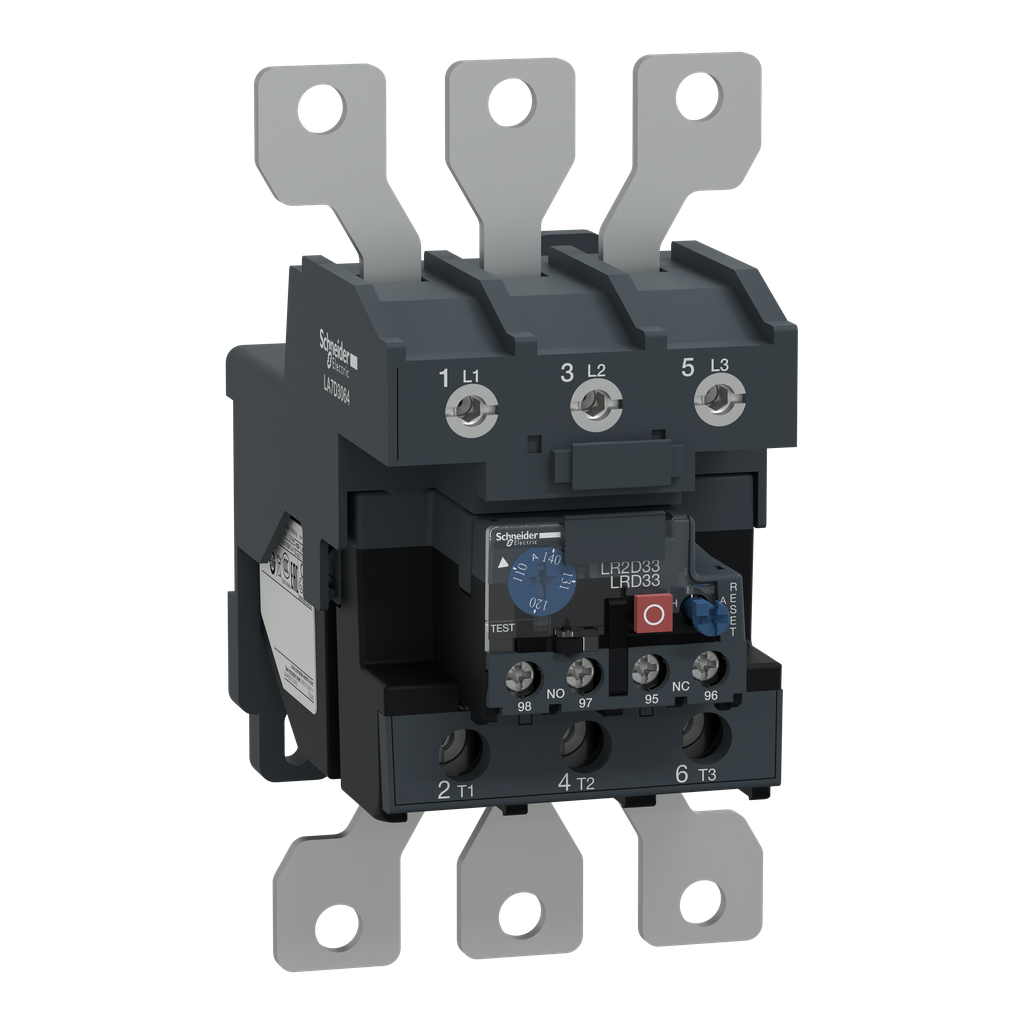

LRD33696 - TeSys Deca thermal overload relays , 110...140A , class 10A

LRD33696

TeSys Deca thermal overload relays , 110...140A , class 10A

Add to Quote Catalogue

Specifications

Product Certifications	IEC UL CSA CCC EAC ATEX INERIS UKCA
Mechanical Robustness	vibrations6 Gn IEC 60068-2-6 shocks15 Gn for 11 ms IEC 60068-2-7
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495
Climatic Withstand	IACS E10
Ambient Air Temperature For Operation	-20-60 °C without derating IEC 60947-4-1
Dielectric Strength	2.2 kV 50 Hz IEC 60947-1
Ip Degree Of Protection	IP20 conforming to IEC 60529
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-70 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110101EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1101001
Eu Rohs Directive	Compliant
Network Frequency	0...400 Hz
Height	123 mm
[Ith] Conventional Free Air Thermal Current	5 A signalling circuit
Auxiliary Contact Composition	1 NO + 1 NC
Connections - Terminals	power circuit screw clamp terminals 1 4-35 mm² flexible without cable end power circuit screw clamp terminals 1 4-35 mm² flexible with cable end power circuit screw clamp terminals 1 4-35 mm² solid without cable end control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end
Phase Failure Sensitivity	tripping current 130 % of Ir on two phase, the last one at 0
[Ue] Rated Operational Voltage	1000 V AC 0...400 Hz power circuit IEC 60947-4-1
Associated Fuse Rating	4 A gG for signalling circuit 4 A BS for signalling circuit
Net Weight	1 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV
Permissible Current	0.72 A 500 V AC-15 signalling circuit 0.06 A 440 V DC-13 signalling circuit
Tripping Threshold	1.14 +/- 0.06 Ir IEC 60947-4-1
Tightening Torque	control circuit 1.7 N.m screw clamp terminals power circuit 9 N.m screw clamp terminals
Control Type	Red push-button stop Blue push-button reset
Mounting Support	plate rail
Temperature Compensation	-20-60 °C
Country of Origin	France
Height	123 mm
Weight	1 kg
Network Type	AC DC
Thermal Protection Adjustment Range	110-140 A
Relay Application	motor protection
Product Or Component Type	differential thermal overload relay
Product Name	TeSys LRD TeSys Deca
Thermal Overload Class	class 10A IEC 60947-4-1
Range	TeSys
[Ui] Rated Insulation Voltage	power circuit 750 V IEC 60947-4-1 power circuit 600 V CSA power circuit 600 V UL
Product Compatibility	LC1D150
Device Short Name	LRD
