LRD1512 - TeSys Deca thermal overload relays , 5.5...8A , class 20

LRD1512

TeSys Deca thermal overload relays , 5.5...8A , class 20

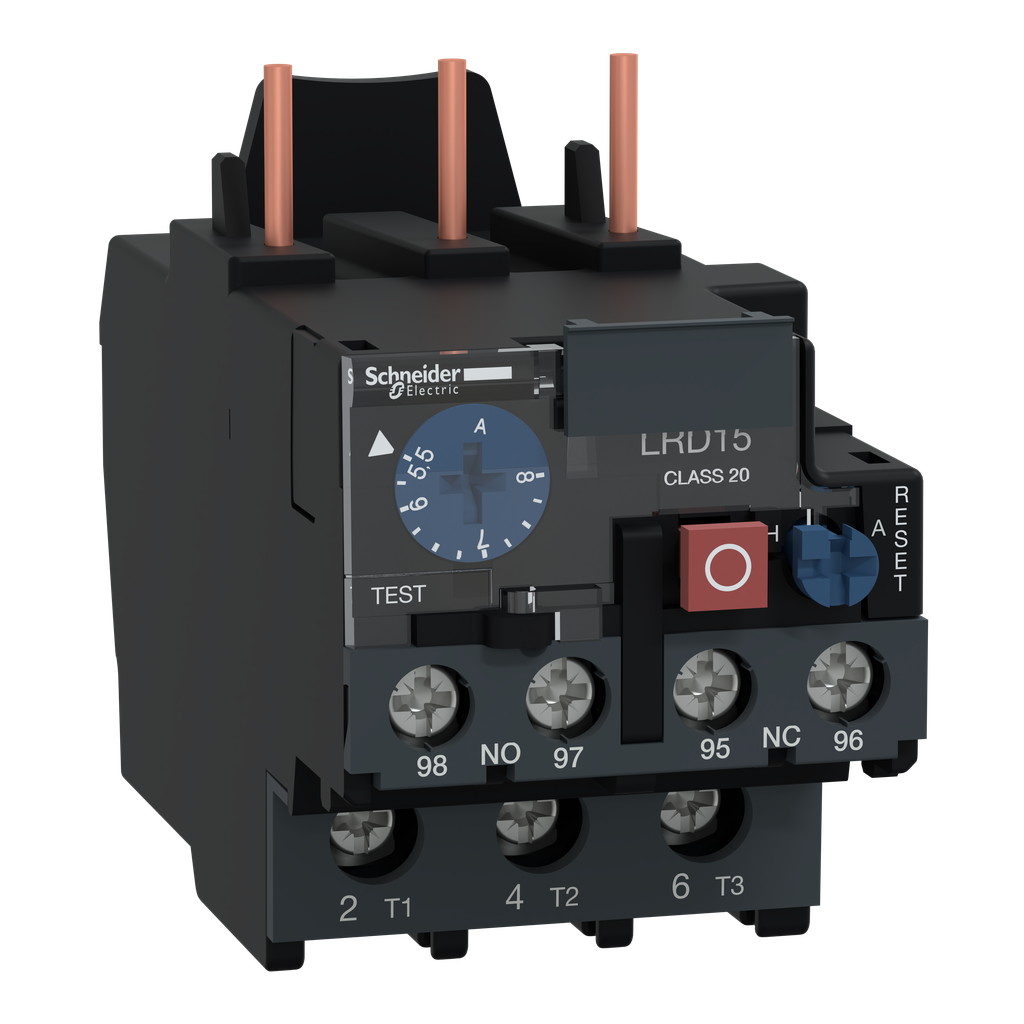

TeSys LRD thermal overload relay, 8A/690V, thermal setting range 5.5-8A, tripping class 20, for protection of 3-phase motors 3kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signaling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B105 (to be ordered separately). Multi standards certified (IEC, UL, CSA, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	IEC UL CSA EAC DNV-GL LROS (Lloyds register of shipping) UKCA
Mechanical Robustness	vibrations6 Gn IEC 60068-2-6 shocks15 Gn for 11 ms IEC 60068-2-7
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1
Climatic Withstand	IACS E10
Ambient Air Temperature For Operation	-20-60 °C without derating IEC 60947-4-1
Dielectric Strength	1.89 kV 50 Hz IEC 60947-1
Ip Degree Of Protection	IP20 conforming to IEC 60529
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-70 °C
Fire Resistance	850 °C IEC 60695-2-1
Warranty	18 months
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110101EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: Cancer - www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1101001
Eu Rohs Directive	Compliant with Exemptions
Network Frequency	0...400 Hz
[Ith] Conventional Free Air Thermal Current	5 A signalling circuit
Auxiliary Contact Composition	1 NO + 1 NC
Connections - Terminals	control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end power circuit screw clamp terminals 1 1-4 mm² flexible with cable end power circuit screw clamp terminals 1 1-6 mm² solid without cable end
Phase Failure Sensitivity	tripping current 130 % of Ir on two phase, the last one at 0
[Ue] Rated Operational Voltage	690 V AC 0...400 Hz power circuit IEC 60947-4-1
Associated Fuse Rating	4 A gG for signalling circuit 4 A BS for signalling circuit
Net Weight	0.19 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV
Permissible Current	1.5 A 240 V AC-15 signalling circuit 0.1 A 250 V DC-13 signalling circuit
Tripping Threshold	1.14 +/- 0.06 Ir IEC 60947-4-1
Tightening Torque	control circuit 1.7 N.m screw clamp terminals power circuit 1.85 N.m screw clamp terminals
Control Type	Red push-button stop Blue push-button reset
Mounting Support	plate, with specific accessories rail, with specific accessories under contactor
Width	45 mm
Depth	92 mm
Temperature Compensation	-20-60 °C
Country of Origin	France
Width	45 mm
Weight	0.19 kg
Network Type	DC AC
Thermal Protection Adjustment Range	5.5-8 A
Relay Application	motor protection
Product Or Component Type	differential thermal overload relay
Product Name	TeSys LRD TeSys Deca
Thermal Overload Class	class 20 IEC 60947-4-1
Range	TeSys
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL power circuit 690 V IEC 60947-4-1
Product Compatibility	LC1D12 LC1D25 LC1D18 LC1D32 LC1D09
Device Short Name	LRD
