LR9D08KITD09BD - Tesys motor starter kit, LC1D09BD contactor, LR9D08 thermal overload relay

LR9D08KITD09BD

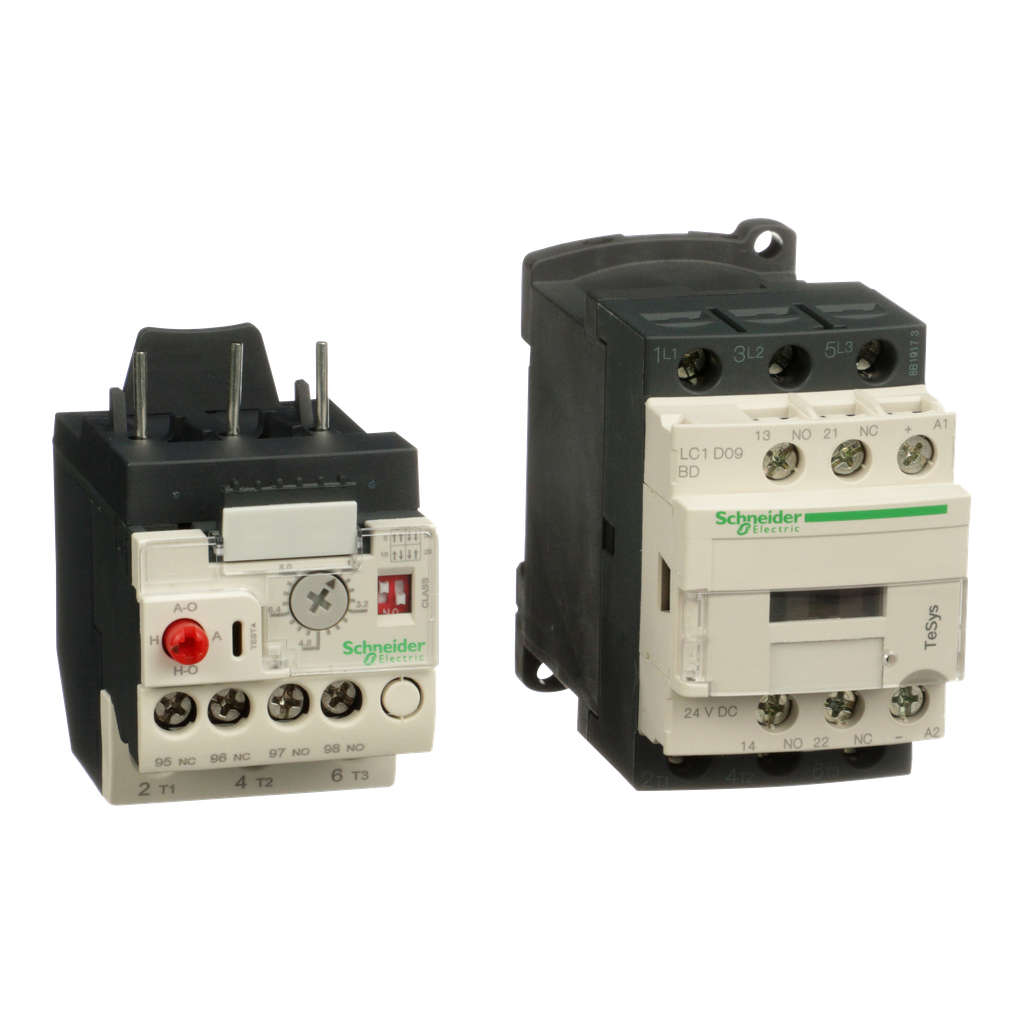

Tesys motor starter kit, LC1D09BD contactor, LR9D08 thermal overload relay

TeSys motor starter kits combine a TeSys LC1D contactor and a TeSys LR9D overload relay to make an IEC starter. This starter has a LC1D09BD contactor and a LR9D08 electronic overload relay. The LC1D09BD contactor has a 9 ampere resistive and horsepower ratings. The LR9D08 electronic overload relay has a current setting of 1.6 to 8 amperes. This starter is UL listed and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Time Range	1.5...4 min - automatic reset time
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA for signalling circuit
[Ith] Conventional Free Air Thermal Current	5 A signalling circuit
Tightening Torque	control circuit 0.8 N.m screw clamp terminals power circuit 3.1 N.m screw clamp terminals
Control Circuit Voltage Limits	drop-out 0.1...0.25 Uc DC 60 °C) operational 0.7...1.25 Uc DC 60 °C)
[Ue] Rated Operational Voltage	690 V power circuit 660 V signalling circuit
Contact Compatibility	M4
Thermal Protection Adjustment Range	0.4-2 A
Power Consumption In W	300 mW
Contactor Coil Voltage	24 V DC standard
Hold-In Power Consumption In W	5.4-5.4 W 20 °C
Insulation Resistance	> 10 MOhm for signalling circuit
Ip Degree Of Protection	front face IP20 IEC 60529 front face IP20 VDE 0106
Thermal Overload Class	class 5…30
Associated Fuse Rating	5 A gG signalling circuit 5 A BS signalling circuit
Power Range	1.1-2 kW 200-240 V 3 phase 2.2-3 kW 380-440 V 3 phase 4-6 kW 380-440 V 3 phase 4-6 kW 480-500 V 3 phase
[Uimp] Rated Impulse Withstand Voltage	6 kV
Connections - Terminals	control circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable end power circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end
Coil Technology	built-in bidirectional peak limiting diode suppressor
Time Constant	28 ms
[Ui] Rated Insulation Voltage	power circuit 1000 V signalling circuit 690 V
Motor Starter Type	direct on-line contactor
Minimum Switching Voltage	17 V for signalling circuit
Tripping Threshold	1.25 In IEC 60947-4-1
Signalling Circuit Frequency	25...400 Hz
Control Type	Red push-button stop and manual reset White 2 microswitches adjustable trip class Red knob automatic reset White dial full-load current adjustment
Mounting Support	under contactor plate, with specific accessories rail, with specific accessories
Inrush Power In W	5.4-5.4 W 20 °C)
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Mechanical Robustness	vibrations 10...150 Hz 6 Gn) IEC 60068-2-6 shocks 11 ms 15 gn) IEC 60068-2-7
Country of Origin	China
Weight	0.48 kg
Product Certifications	LROS (Lloyds register of shipping) CSA UL GOST DNV CCC GL BV RINA
[Uc] Control Circuit Voltage	24 V DC
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz power circuit <= 300 V DC
Power Dissipation Per Pole	1.56 W AC-1 0.2 W AC-3
Average Impedance	2.5 mOhm - Ith 25 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	25 A (at 60 °C) for power circuit 10 A (at 60 °C) for signalling circuit
Phase Failure Sensitivity	phase difference > 40% 3-3 s IEC 60947-4-1
Mounting Support	plate rail
Control Circuit Type	DC standard
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	motor control resistive load
Relay Application	motor protection
Rated Breaking Capacity	250 A at 440 V for power circuit conforming to IEC 60947
Product Or Component Type	motor starter
Irms Rated Making Capacity	250 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 25 A gG at <= 690 V coordination type 1 for power circuit 20 A gG at <= 690 V coordination type 2 for power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Connections - Terminals	power circuit screw clamp terminals 1 1-4 mm²flexible without cable end power circuit screw clamp terminals 2 1-4 mm²flexible without cable end power circuit screw clamp terminals 1 1-4 mm²flexible with cable end power circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end power circuit screw clamp terminals 1 1-4 mm²solid without cable end power circuit screw clamp terminals 2 1-4 mm²solid without cable end control circuit screw clamp terminals 1 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-4 mm²flexible without cable end control circuit screw clamp terminals 1 1-4 mm²flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end control circuit screw clamp terminals 1 1-4 mm²solid without cable end control circuit screw clamp terminals 2 1-4 mm²solid without cable end
Range	TeSys
Pole Contact Composition	3 NO
Utilisation Category	AC-4 AC-1 AC-3
Maximum Operating Rate	3600 cyc/h 60 °C
Tightening Torque	power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm power circuit 1.7 N.m screw clamp terminals Philips No 2 control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm control circuit 1.7 N.m screw clamp terminals Philips No 2
Mechanical Durability	30 Mcycles
Poles Description	3P
Operating Time	53.55...72.45 ms closing 16...24 ms opening
Overvoltage Category	III
Motor Power Kw	2.2 kW at 220...230 V AC 50/60 Hz (AC-3) 4 kW at 380...400 V AC 50/60 Hz (AC-3) 4 kW at 415...440 V AC 50/60 Hz (AC-3) 5.5 kW at 500 V AC 50/60 Hz (AC-3) 5.5 kW at 660...690 V AC 50/60 Hz (AC-3) 2.2 kW at 400 V AC 50/60 Hz (AC-4)
Maximum Horse Power Rating	1 hp at 230/240 V AC 50/60 Hz for 1 phase motors 2 hp at 200/208 V AC 50/60 Hz for 3 phase motors 2 hp at 230/240 V AC 50/60 Hz for 3 phase motors 5 hp at 460/480 V AC 50/60 Hz for 3 phase motors 7.5 hp at 575/600 V AC 50/60 Hz for 3 phase motors 0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 power circuit 600 V CSA power circuit 600 V UL signalling circuit 690 V IEC 60947-1 signalling circuit 600 V CSA signalling circuit 600 V UL
Protective Cover	with
Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hz vibrations contactor closed4 Gn, 5...300 Hz shocks contactor open10 Gn for 11 ms shocks contactor closed15 Gn for 11 ms
Standards	UL 60947-4-1 IEC 60947-4-1 GB 14048.4 CSA C22.2
Ambient Air Temperature For Operation	-25-70 °C IEC 60255-8
Pollution Degree	3
Product Certifications	TÜV CSA cULus CCC
Electromagnetic Compatibility	surge withstand 2 kV common mode IEC 61000-4-5 resistance to electrostatic discharge 8 kV IEC 61000-4-2 immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3 immunity to fast transients 2 kV IEC 61000-4-4
Dielectric Strength	6 kV 50 Hz IEC 60255-5
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-80 °C
Height	72.5 mm
Protective Treatment	TH IEC 60068-2-30
Net Weight	0.18 kg
Ip Degree Of Protection	IP20 front face IEC 60529
Operating Altitude	9842.52 ft (3000 m) without derating
Fire Resistance	850 °C IEC 60695-2-1
Width	45 mm
Depth	95 mm
Permissible Ambient Air Temperature Around The Device	-40-70 °C at Uc
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1502001EN
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1502001EN
Eu Rohs Directive	Compliant with Exemptions
