LR2D3555 - TeSys Deca thermal overload relays , 30...40A , class 20

LR2D3555

TeSys Deca thermal overload relays , 30...40A , class 20

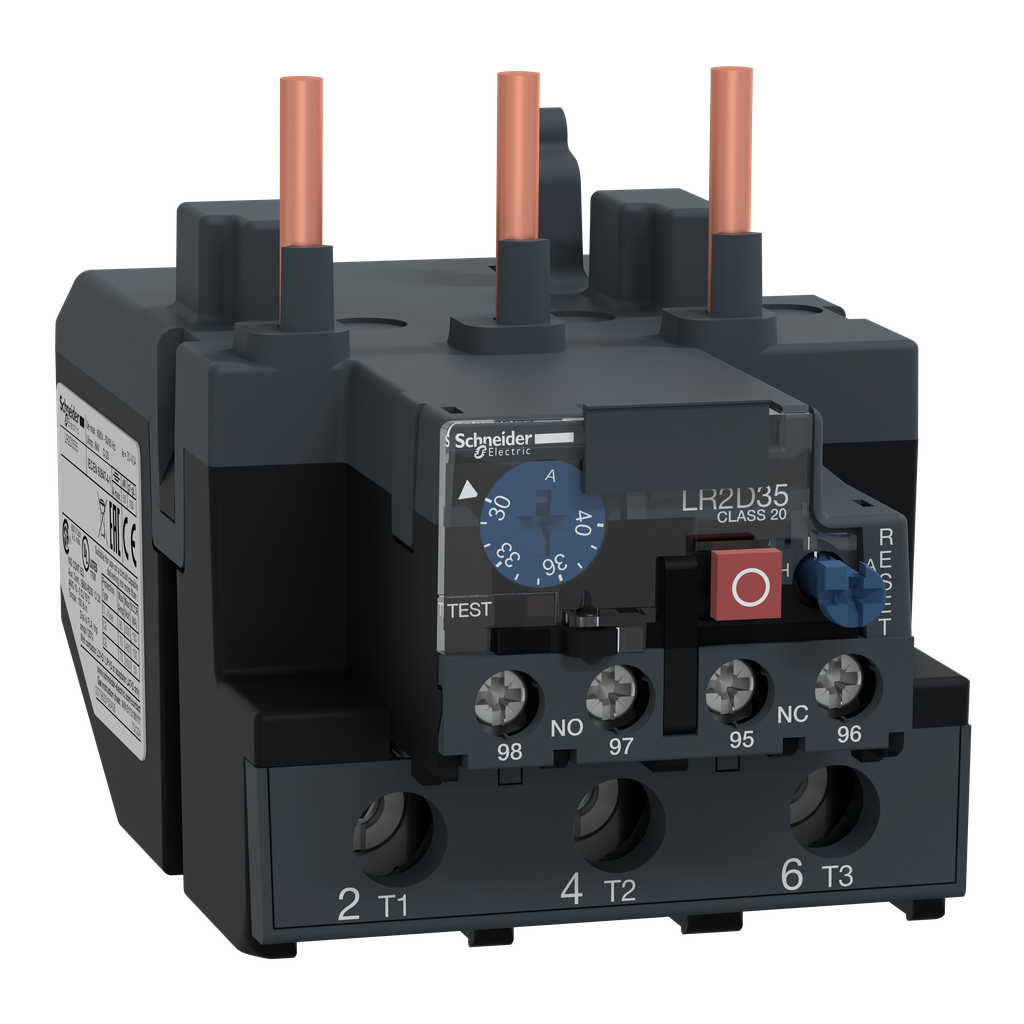

LR2D3355 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 18.5kW@400V thanks to a thermal range 30-40A, a tripping class 20 and phase unbalance protection. LR2D3355 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 30-40A, a tripping class 20 and phase unbalance detection, it protects motors 18.5kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D80 and D95 to form a compact starter. Light and compact, 70mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	IEC UL CSA EAC DNV-GL LROS (Lloyds register of shipping) UKCA
Mechanical Robustness	vibrations6 Gn IEC 60068-2-6 shocks15 Gn for 11 ms IEC 60068-2-7
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1
Climatic Withstand	IACS E10
Ambient Air Temperature For Operation	-20-60 °C without derating IEC 60947-4-1
Dielectric Strength	2.2 kV 50 Hz IEC 60947-1
Ip Degree Of Protection	IP20 conforming to IEC 60529
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-70 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110101EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1101001
Eu Rohs Directive	Compliant
Network Frequency	0...400 Hz
Height	100 mm
[Ith] Conventional Free Air Thermal Current	5 A signalling circuit
Auxiliary Contact Composition	1 NO + 1 NC
Connections - Terminals	power circuit screw clamp terminals 1 4-35 mm² flexible without cable end power circuit screw clamp terminals 1 4-35 mm² flexible with cable end power circuit screw clamp terminals 1 4-35 mm² solid without cable end control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end
Phase Failure Sensitivity	tripping current 130 % of Ir on two phase, the last one at 0
[Ue] Rated Operational Voltage	1000 V AC 0...400 Hz power circuit IEC 60947-4-1
Associated Fuse Rating	4 A gG for signalling circuit 4 A BS for signalling circuit
Net Weight	0.535 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV
Permissible Current	0.72 A 500 V AC-15 signalling circuit 0.06 A 440 V DC-13 signalling circuit
Tripping Threshold	1.14 +/- 0.06 Ir IEC 60947-4-1
Tightening Torque	control circuit 1.7 N.m screw clamp terminals power circuit 9 N.m screw clamp terminals
Control Type	Red push-button stop Blue push-button reset
Mounting Support	plate, with specific accessories rail, with specific accessories under contactor
Width	75 mm
Depth	121 mm
Temperature Compensation	-20-60 °C
Country of Origin	Mexico
Width	75 mm
Height	100 mm
Weight	0.535 kg
Network Type	DC AC
Thermal Protection Adjustment Range	30-40 A
Relay Application	motor protection
Product Or Component Type	differential thermal overload relay
Product Name	TeSys LRD TeSys Deca
Thermal Overload Class	class 20 IEC 60947-4-1
Range	TeSys
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL power circuit 690 V IEC 60947-4-1
Product Compatibility	LC1D95 LC1D80
Device Short Name	LR2D
