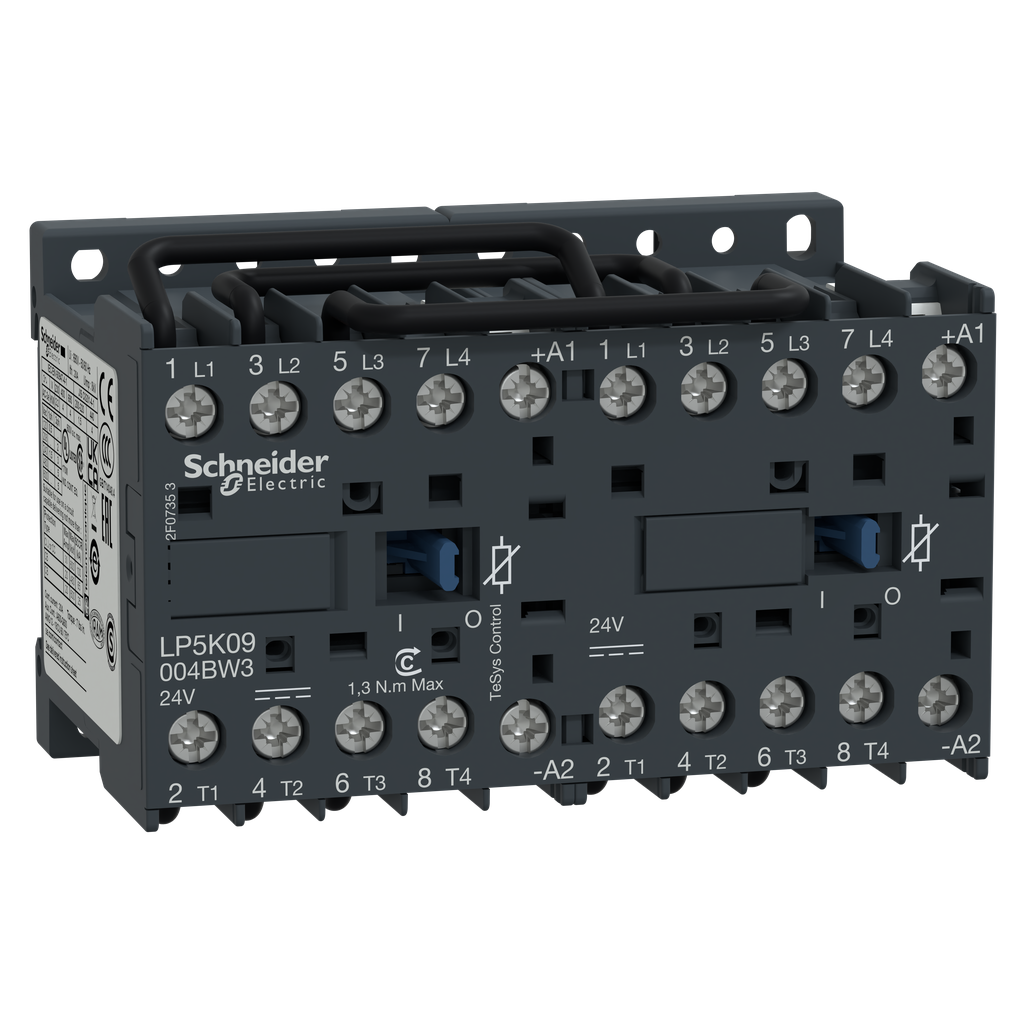

LP5K09004BW3 - Changeover contactor, TeSys K, 4P, AC-1, lt or eq to 440V 10A, 24VDC coil

LP5K09004BW3

Changeover contactor, TeSys K, 4P, AC-1, lt or eq to 440V 10A, 24VDC coil

Add to Quote Catalogue

Specifications

Mechanical Robustness	shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27 shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27 shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27
Ambient Air Temperature For Operation	-25-50 °C
Height	58 mm
Net Weight	0.49 kg
Flame Retardance	V1 conforming to UL 94 requirement 2 conforming to NF F 16-101 requirement 2 conforming to NF F 16-102
Ambient Air Temperature For Storage	-50-80 °C
Protective Treatment	TC IEC 60068 TC DIN 50016
Ip Degree Of Protection	IP20 VDE 0106
Operating Altitude	6561.68 ft (2000 m) without derating
Width	90 mm
Depth	57 mm
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503003EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1503003EN
Sustainable Packaging	Yes
Eu Rohs Directive	Compliant
Control Circuit Voltage Limits	operational: 0.7...1.30 Uc (at <50 °C) drop-out: 0.1...0.7 Uc (at <50 °C)
Hold-In Power Consumption In W	1.8-1.8 W 20 °C
Coil Technology	built-in bidirectional peak limiting diode suppressor
Inrush Power In W	1.8-1.8 W 20 °C)
Heat Dissipation	1.8-1.8 W
Country of Origin	France
Width	90 mm
Height	58 mm
Weight	0.49 kg
Product Certifications	CB Scheme CCC UL CSA EAC CE UKCA
Interlocking Type	mechanical
[Uc] Control Circuit Voltage	24 V DC
[Ue] Rated Operational Voltage	power circuit 690 V AC 50/60 Hz
Average Impedance	3 mOhm - Ith 20 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current	20 A (at 50 °C) for power circuit
Standards	EN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1
Mounting Support	rail plate
Control Circuit Type	DC low consumption
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	resistive load
Rated Breaking Capacity	110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947
Product Or Component Type	changeover contactor
Irms Rated Making Capacity	110 A AC for power circuit conforming to NF C 63-110 110 A AC for power circuit conforming to IEC 60947
Product Name	TeSys K
Associated Fuse Rating	25 A gG at <= 440 V for power circuit 25 A aM for power circuit
[Uimp] Rated Impulse Withstand Voltage	8 kV
Connections - Terminals	screw clamp terminals 1 1.5-4 mm²solid screw clamp terminals 1 0.75-4 mm²flexible without cable end screw clamp terminals 1 0.34-2.5 mm²flexible with cable end screw clamp terminals 2 1.5-4 mm²solid screw clamp terminals 2 0.75-4 mm²flexible without cable end screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
Range	TeSys
Pole Contact Composition	4 NO
Device Presentation	preassembled with reversing power busbar
Utilisation Category	AC-1
[Ie] Rated Operational Current	20 A (at <50 °C) at <= 440 V AC AC-1 for power circuit 16 A (at <70 °C) at 690 V AC AC-1 for power circuit
Maximum Operating Rate	3600 cyc/h
Electrical Durability	0.16 Mcycles 20 A AC-1 <= 690 V
Mechanical Durability	5 Mcycles
Poles Description	4P
Operating Time	10...20 ms coil de-energisation and NO opening 30...40 ms coil energisation and NO closing
Tightening Torque	0.8-1.3 N.m screw clamp terminals Philips No 2 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm 0.8-1.3 N.m screw clamp terminals pozidriv No 2
Overvoltage Category	III
[Ui] Rated Insulation Voltage	power circuit 600 V UL 508 power circuit 690 V IEC 60947-4-1 power circuit 600 V CSA C22.2 No 14
Device Application	control
Device Short Name	LP5K
[Icw] Rated Short-Time Withstand Current	90 A 50 °C - 1 s for power circuit 85 A 50 °C - 5 s for power circuit 80 A 50 °C - 10 s for power circuit 60 A 50 °C - 30 s for power circuit 45 A 50 °C - 1 min for power circuit 40 A 50 °C - 3 min for power circuit 20 A 50 °C - >= 15 min for power circuit

Changeover contactor, TeSys K, 4P, AC-1, lt or eq to 440V 10A, 24VDC coil
