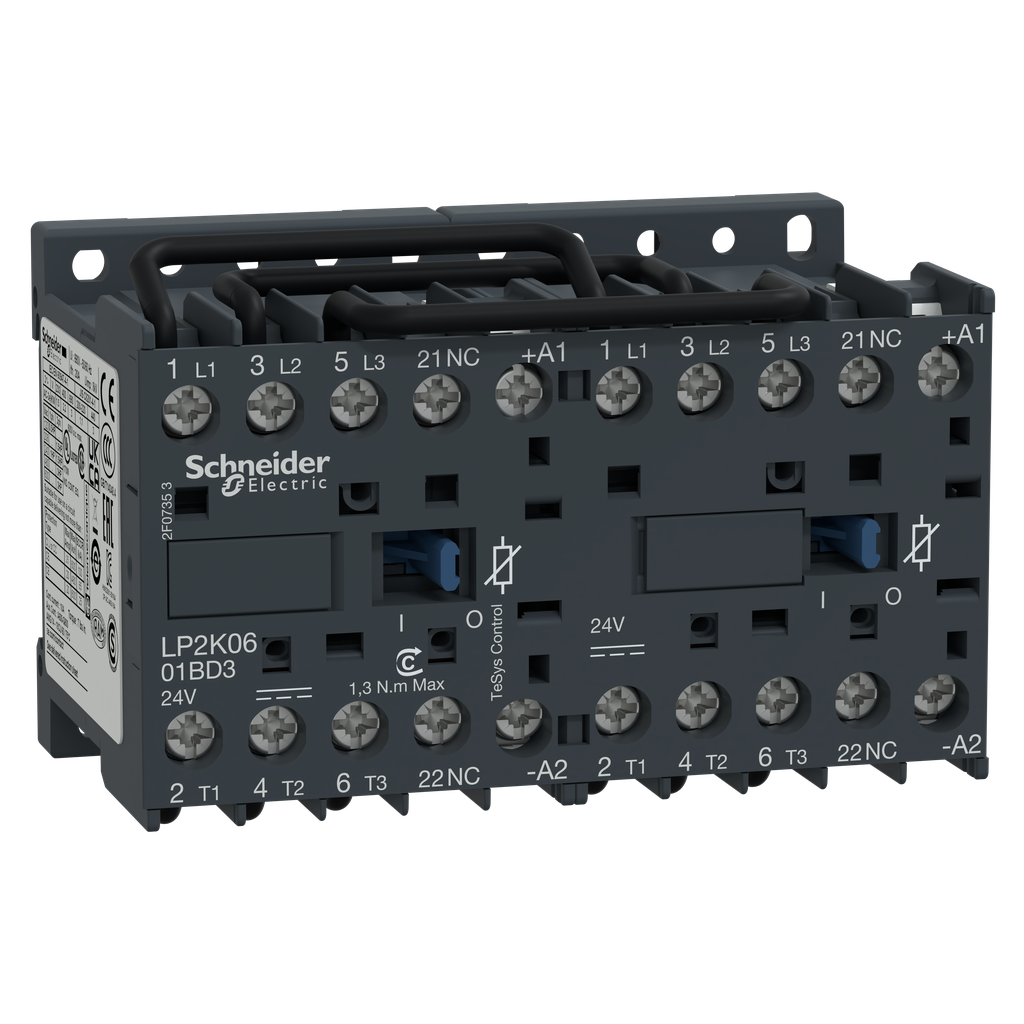

LP2K0901BD3 - Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NC, 24VDC coil

LP2K0901BD3

Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NC, 24VDC coil

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V DC coil with transient suppressor module, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Mechanical Robustness	shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27 shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27 shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27
Ambient Air Temperature For Operation	-25-50 °C
Height	58 mm
Net Weight	0.48 kg
Flame Retardance	V1 conforming to UL 94 requirement 2 conforming to NF F 16-101 requirement 2 conforming to NF F 16-102
Ambient Air Temperature For Storage	-50-80 °C
Protective Treatment	TC IEC 60068 TC DIN 50016
Ip Degree Of Protection	IP20 VDE 0106
Operating Altitude	6561.68 ft (2000 m) without derating
Width	90 mm
Depth	57 mm
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503003EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1503003EN
Eu Rohs Directive	Compliant
Minimum Switching Current	5 mA for signalling circuit
Control Circuit Voltage Limits	operational: 0.8...1.15 Uc (at <50 °C) drop-out: 0.1...0.75 Uc (at <50 °C)
Non Overlap Distance	0.5 mm
Hold-In Power Consumption In W	3-3 W 20 °C
Insulation Resistance	> 10 MOhm for signalling circuit
Coil Technology	built-in bidirectional peak limiting diode suppressor
Minimum Switching Voltage	17 V for signalling circuit
Inrush Power In W	3-3 W 20 °C)
Auxiliary Contacts Type	instantaneous 1 NC
Heat Dissipation	3-3 W
Country of Origin	United States
Width	90 mm
Height	58 mm
Weight	0.48 kg
Product Certifications	CB Scheme CCC UL CSA EAC CE UKCA
Interlocking Type	mechanical
[Uc] Control Circuit Voltage	24 V DC
[Ue] Rated Operational Voltage	power circuit 690 V AC 50/60 Hz signalling circuit <= 690 V AC 50/60 Hz
Average Impedance	3 mOhm - Ith 20 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NC
[Ith] Conventional Free Air Thermal Current	20 A (at 60 °C) for power circuit 10 A (at 50 °C) for signalling circuit
Standards	EN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1
Mounting Support	plate rail
Control Circuit Type	DC standard
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	motor control resistive load
Rated Breaking Capacity	110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947
Product Or Component Type	reversing contactor
Irms Rated Making Capacity	110 A AC for power circuit conforming to IEC 60947 110 A AC for signalling circuit conforming to IEC 60947
Product Name	TeSys K
Associated Fuse Rating	25 A gG at <= 440 V for power circuit 25 A aM for power circuit 10 A gG for signalling circuit conforming to IEC 60947 10 A gG for signalling circuit conforming to VDE 0660
[Uimp] Rated Impulse Withstand Voltage	8 kV
Connections - Terminals	screw clamp terminals 1 1.5-4 mm²solid screw clamp terminals 1 0.75-4 mm²flexible without cable end screw clamp terminals 1 0.34-2.5 mm²flexible with cable end screw clamp terminals 2 1.5-4 mm²solid screw clamp terminals 2 0.75-4 mm²flexible without cable end screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
Range	TeSys
Pole Contact Composition	3 NO
Device Presentation	preassembled with reversing power busbar
Utilisation Category	AC-3 AC-3e AC-4 AC-1
[Ie] Rated Operational Current	9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
Maximum Operating Rate	3600 cyc/h
Electrical Durability	1.3 Mcycles 9 A AC-3 <= 440 V 1.3 Mcycles 9 A AC-3e <= 440 V 0.16 Mcycles 20 A AC-1 <= 690 V 0.02 Mcycles 54 A AC-4 <= 440 V
Mechanical Durability	5 Mcycles
Poles Description	3P
Operating Time	30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening
Tightening Torque	0.8-1.3 N.m screw clamp terminals Philips No 2 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm 0.8-1.3 N.m screw clamp terminals pozidriv No 2
Overvoltage Category	III
Motor Power Kw	2.2 kW 220...230 V AC 50/60 Hz 4 kW 380...415 V AC 50/60 Hz 4 kW 440/690 V AC 50/60 Hz
[Ui] Rated Insulation Voltage	power circuit 600 V UL 508 power circuit 690 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-5-1 signalling circuit 600 V UL 508 power circuit 600 V CSA C22.2 No 14 signalling circuit 600 V CSA C22.2 No 14
Device Application	control
Device Short Name	LP2K
[Icw] Rated Short-Time Withstand Current	90 A 50 °C - 1 s for power circuit 85 A 50 °C - 5 s for power circuit 80 A 50 °C - 10 s for power circuit 60 A 50 °C - 30 s for power circuit 45 A 50 °C - 1 min for power circuit 40 A 50 °C - 3 min for power circuit 20 A 50 °C - >= 15 min for power circuit 80 A - 1 s for signalling circuit 90 A - 500 ms for signalling circuit 110 A - 100 ms for signalling circuit
