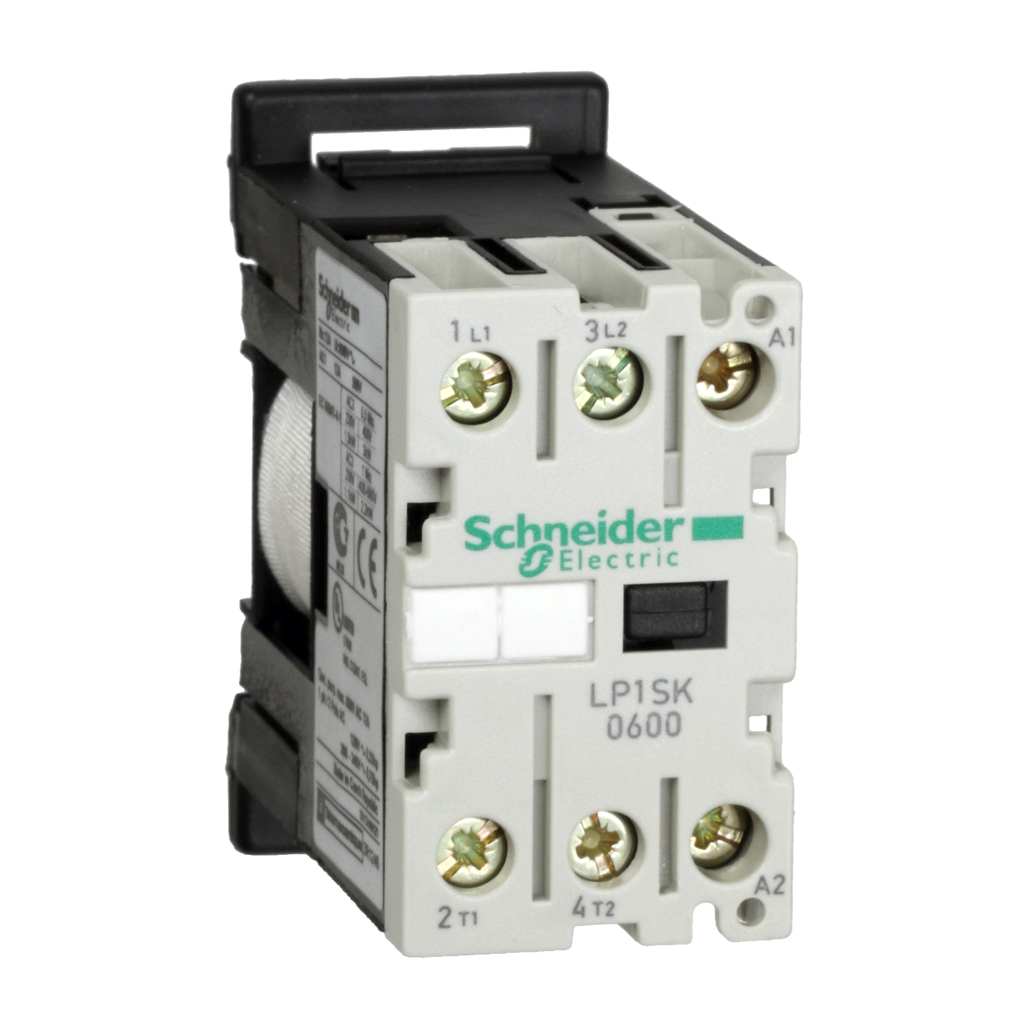

LP1SK0600BD – mini contactor, TeSys SK, 2P(2NO), AC-1, 690V 12A, 24V DC coil
LP1SK0600BD
mini contactor, TeSys SK, 2P(2NO), AC-1, 690V 12A, 24V DC coil

TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 24V DC control circuit with no inrush consumption, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation -20-50 °C
Height 56 mm
Net Weight 0.132 kg
Ambient Air Temperature For Storage -50-70 °C
Protective Treatment
  • TC IEC 60068
  • TC DIN 50015
Ip Degree Of Protection IP2X VDE 0106
Operating Altitude 6561.68 ft (2000 m) without derating
Width 27 mm
Depth 55.5 mm
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1503003EN
Sustainable Offer Status Green Premium product
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI1503003EN
Sustainable Packaging Yes
Eu Rohs Directive Compliant with Exemptions
Control Circuit Voltage Limits
  • operational: 0.85...1.1 Uc (at <50 °C)
  • drop-out: 0.1...0.75 Uc (at <50 °C)
Hold-In Power Consumption In W 2.2-2.2 W 20 °C
Inrush Power In W 2.2-2.2 W 20 °C)
Heat Dissipation 2.2-2.2 W
Country of Origin United States
Width 27 mm
Height 56 mm
Weight 0.132 kg
Product Certifications
  • CB Scheme
  • CE
  • UKCA
  • EAC
  • cULus
[Uc] Control Circuit Voltage 24 V DC
[Ue] Rated Operational Voltage power circuit 690 V AC 50/60 Hz
Average Impedance 4 mOhm - Ith 12 A 50 Hz
[Ith] Conventional Free Air Thermal Current 12 A (at 55 °C) for power circuit
Standards
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
Mounting Support rail
Control Circuit Type DC standard
Contactor Application resistive load
Rated Breaking Capacity
  • 52 A at <= 400 V for power circuit conforming to NF C 63-110
  • 52 A at <= 400 V for power circuit conforming to IEC 60947
Product Or Component Type mini contactor
Irms Rated Making Capacity
  • 66 A at 690 V AC conforming to IEC 60947
  • 66 A at 690 V AC conforming to NF C 63-110
Associated Fuse Rating 16 A gI at <= 440 V for power circuit conforming to IEC 60947
Connections - Terminals
  • power circuit connector 1 0.35-6 mm²flexible with cable end
  • power circuit connector 1 0.5-6 mm²flexible without cable end
  • power circuit connector 1 1.5-6 mm²solid
  • power circuit connector 2 0.35-1.5 mm²flexible with cable end
  • power circuit connector 2 0.35-2.5 mm²flexible without cable end
  • power circuit connector 2 1.5-4 mm²solid
Pole Contact Composition 2 NO
Utilisation Category AC-1
[Ie] Rated Operational Current 12 A (at <55 °C) AC AC-1
Maximum Operating Rate 1200 cyc/h
Tightening Torque 0.8 N.m connector pozidriv No 1
Mechanical Durability 10 Mcycles
Poles Description 2P
Operating Time
  • 4...6 ms coil de-energisation and NO opening
  • 8...12 ms coil energisation and NO closing
[Ui] Rated Insulation Voltage
  • 690 V IEC 60947
  • 690 V VDE 0110 group C
  • 690 V BS 5424
  • 690 V UL 508
  • 690 V CSA C22.2 No 14
Device Short Name LP1SK
[Icw] Rated Short-Time Withstand Current 50 A 55 °C for power circuit
