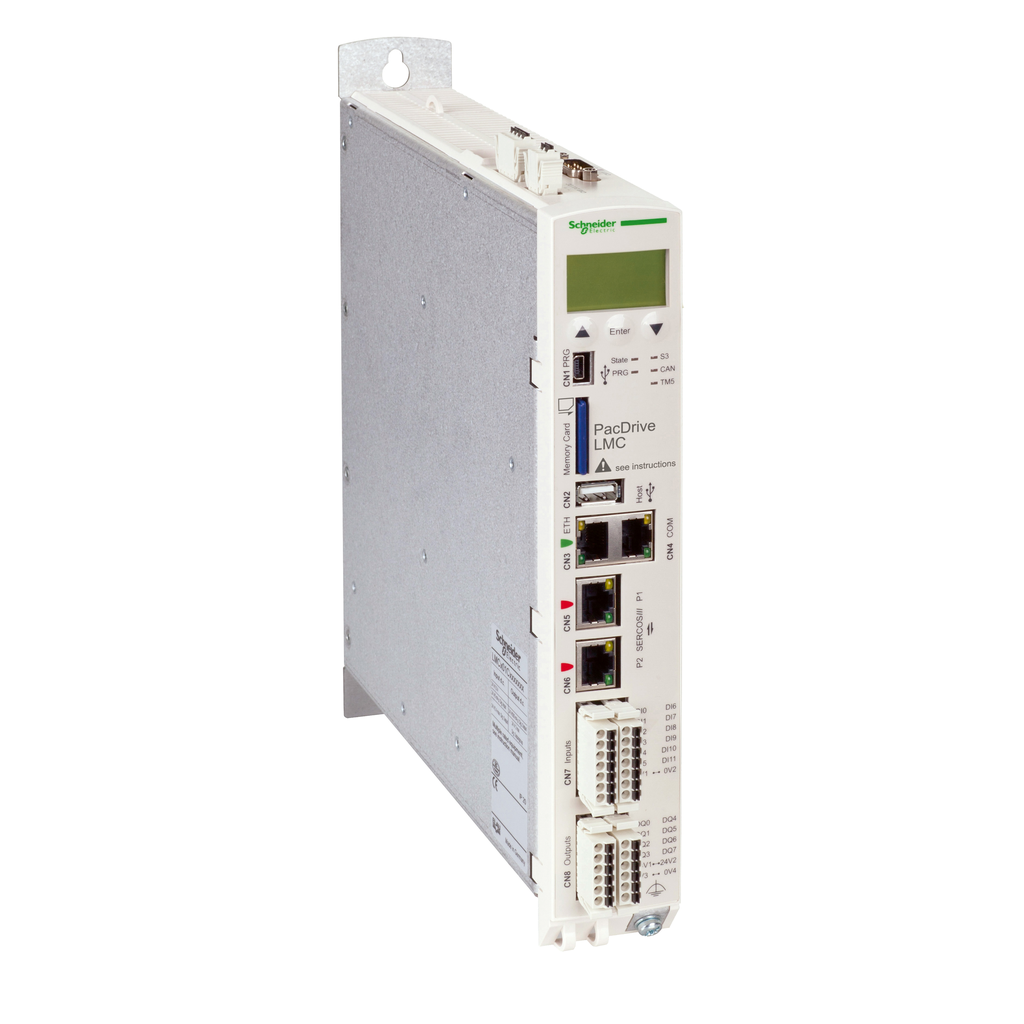

Motion controller LMC106 6 axis - Acc kit - Basic
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 6 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Anti Bounce Filtering |
|
|---|---|
| Maximum Cable Distance Between Devices | <50 m |
| Height | 270 mm |
| Discrete Input Voltage |
|
| Programming Language |
|
| Discrete Input Voltage Type | DC |
| Power Consumption In W | 30 W |
| Discrete Output Number | 8 digital output |
| Net Weight | 2.2 kg |
| Discrete Output Current | 500 mA digital output |
| [Us] Rated Supply Voltage | 24 V DC |
| Memory Type |
|
| Integrated Connection Type |
|
| Discrete Input Current | 4 mA digital input |
| Width | 44 mm |
| Depth | 222 mm |
| Product Compatibility | LMC106 |
| Supply | power supply 24 VDC |
| Number Of Axis | 6 |
| Maximum Leakage Current | 0.5 mA |
| Discrete Input Number |
|
| Maximum Number Of I/O Expansion Module | 1 |
| Country of Origin | United States |
| Width | 44 mm |
| Height | 270 mm |
| Weight | 2.2 kg |
| Range Of Product | PacDrive 3 |
| Product Or Component Type | Motion controller |
| Product Certifications |
|
| Standards |
|
| Ambient Air Temperature For Operation | 5-55 °C |
| Ip Degree Of Protection | IP20EN/IEC 60529 |
| Vibration Resistance |
|
| Shock Resistance | 150 m/s² 6 ms operation)EN/IEC 60721-3-3 |
| Pollution Degree | 2 IEC 61131-2 |
| Relative Humidity | 5-95 % without condensation |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403026EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403026EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
