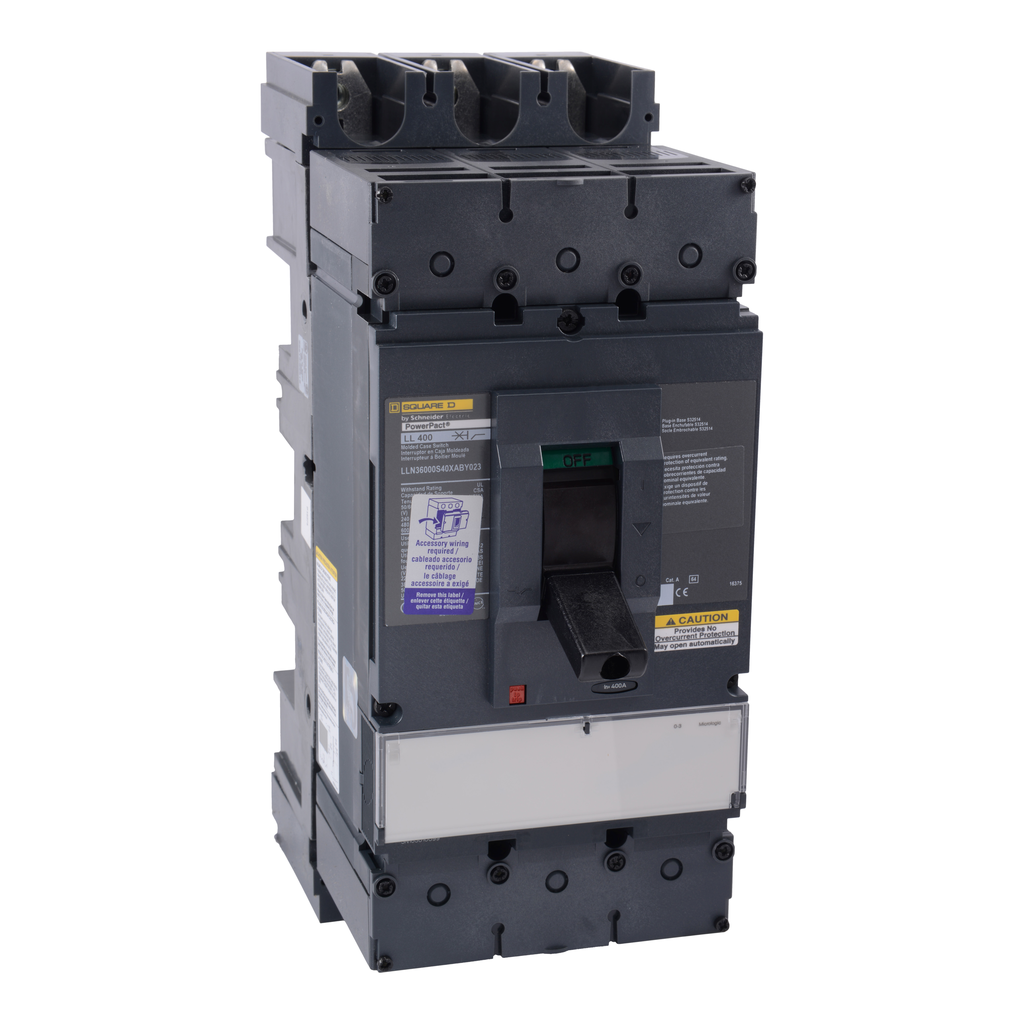

LLN36000S40XABY023 - Automatic switch, PowerPacT L, 400A, 3 pole, 600VAC, 50kA, plug in, magnetic, aux, special

LLN36000S40XABY023

Add to Quote Catalogue

Product Certifications	NMX UL Listed IEC CCC CE CSA
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2206029EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI2206029EN
Eu Rohs Directive	Compliant with Exemptions
Terminal Identifier	AL600LF52K3
Height	13.38 in
Tightening Torque	50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
Breaking Capacity Code	L
Magnetic Tripping Current	4800-4800 A
Electrical Connection	plug-in, line plug-in, load
Mounting Mode	plug-in
Short-Circuit Withstand	125 kA 240 V UL 489 100 kA 480 V UL 489 50 kA 600 V UL 489
Poles Description	3P
Line Rated Current	400 A
Width	5.51 in
Depth	6.61 in
[Ue] Rated Operational Voltage	600 V AC
Country of Origin	United States
Width	5.51 in
Height	13.38 in
Range Of Product	PowerPact L
Accessory / Separate Part Type	auxiliary switch 2 NO + 2 NC
Product Or Component Type	automatic switch
Trip Unit Technology	magnetic
