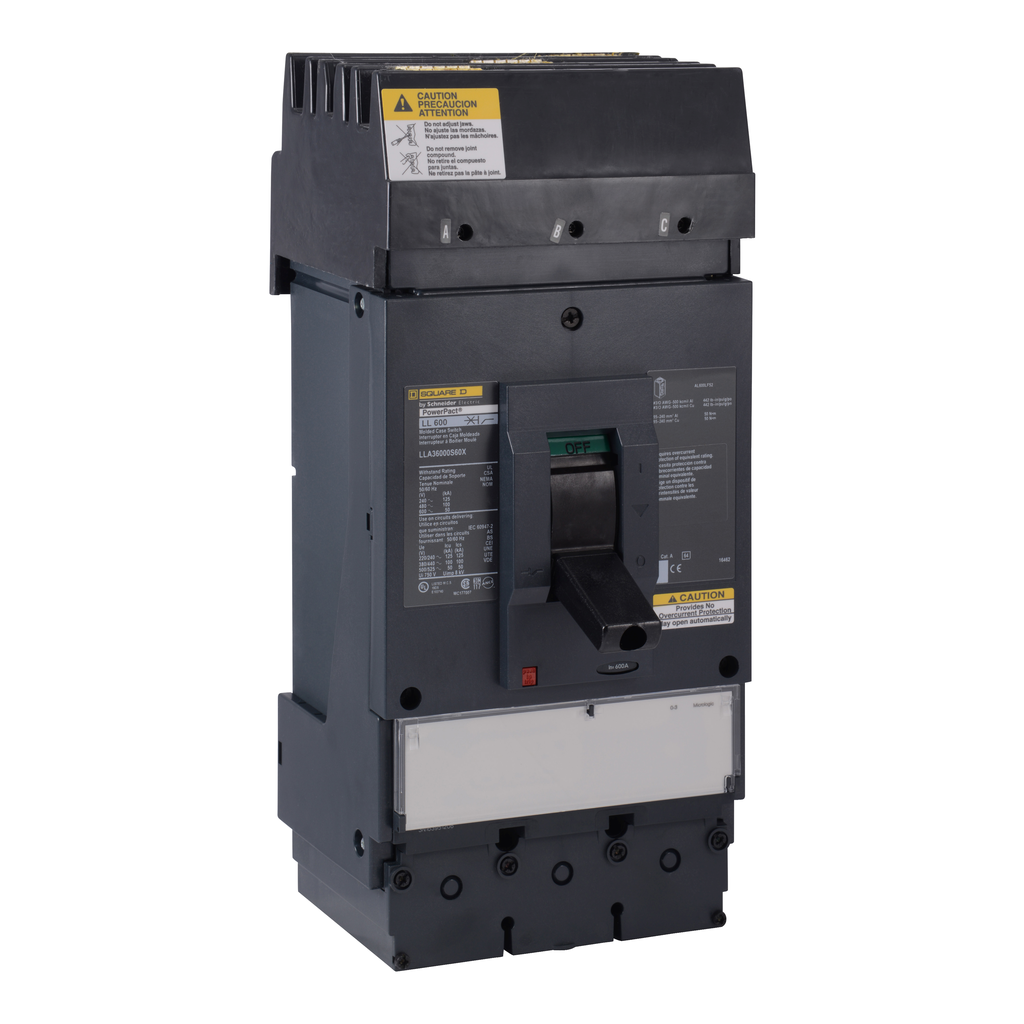

Automatic switch, PowerPacT L, 600A, 3 pole, 600VAC, 50kA, I-Line, magnetic
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT L-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT L, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. It has an ABC phase connection. PowerPacT L automatic switches comply to UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406010EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406010EN |
| Eu Rohs Directive | Compliant |
| Terminal Identifier | AL600LF52K3 |
| Height | 13 in |
| Tightening Torque | 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil) |
| Breaking Capacity Code | L |
| Magnetic Tripping Current | 6600-6600 A |
| Electrical Connection |
|
| Mounting Mode | I-Line |
| Short-Circuit Withstand |
|
| Poles Description | 3P |
| Line Rated Current | 600 A |
| Width | 6 in |
| Depth | 4.75 in |
| [Ue] Rated Operational Voltage | 600 V AC |
| Awg Gauge | 2 x AWG 3/0...500 kcmil ( aluminium/copper ) |
| Country of Origin | United States |
| Width | 6 in |
| Height | 13 in |
| Range Of Product | PowerPact L |
| Product Or Component Type | automatic switch |
| Trip Unit Technology | magnetic |
