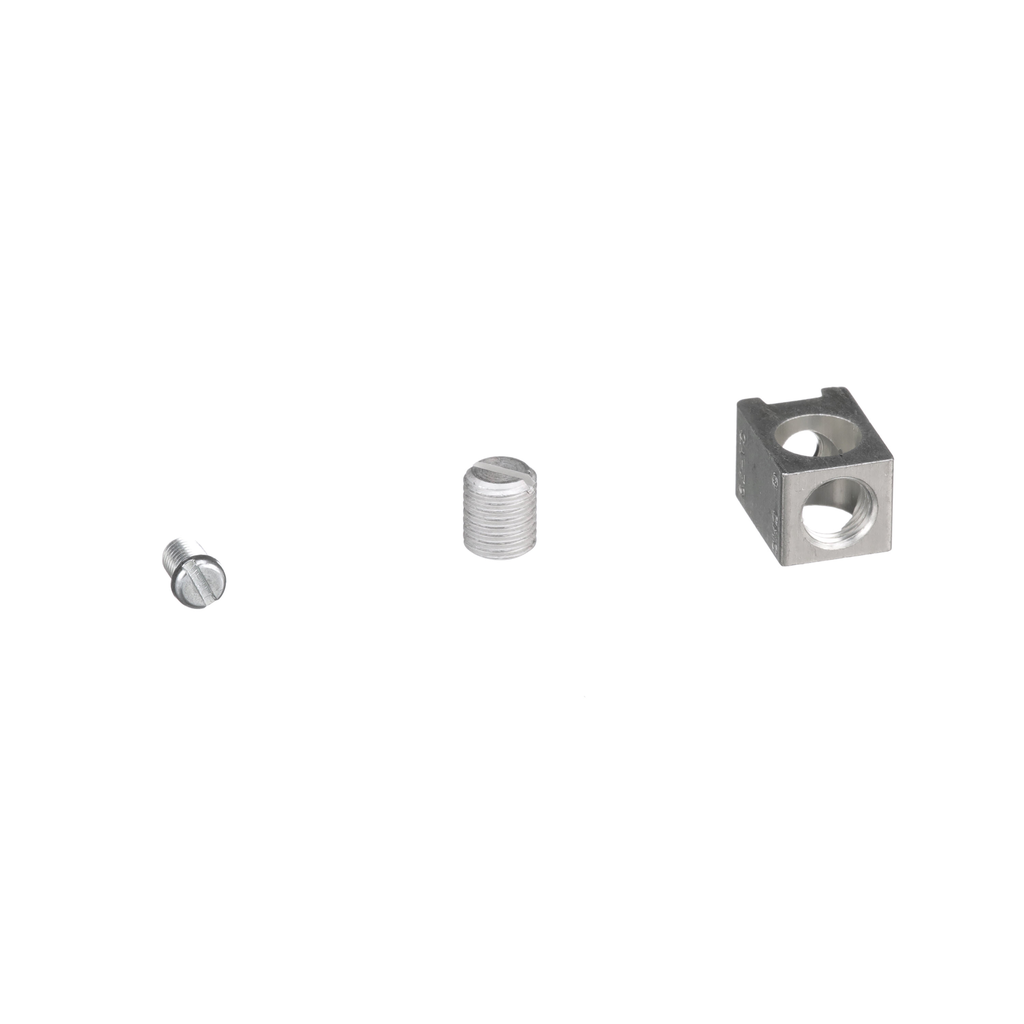

LK100AN
Load center accessory, QO/Homeline, lug kit, neutral, 100A, AWG 6-2/0, aluminum or copper
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. This part has been verified to adhere the data sheet specifications by the Underwriters Laboratories (UL) Listed and CSA.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Range Of Product | QO |
| Product Or Component Type | lug kit |
| Tightening Torque | 40 lb.in, AWG 6...AWG 2/0, aluminium/copper |
| Line Rated Current | 100 A |
| Warranty | 18 months |
Documents
- LK100AN Series S1 Neutral Terminal Kit Installation Instructions - 40271-764-05 (pdf)
- SRKUGMM Terminal Kit for Solar Ready Combination Service Entrance Device (CSED) - MTR14963+SRKUGMM+Terminal+Kit+for+Solar+Ready+Combination+Service+Entrance+Device (pdf)
- PK15GTA Ground Bar Kit with LK100AN Lug Installation Instructions - EAV64665 (pdf)
- PKGTALP1 Equipment Grounding Bar Kit Installation Instructions - NHA32597 (pdf)
- PK23GTA Ground Bar Kit with LK100AN Lug Installation Instructions - 40271-660-05 (pdf)
- PKGTALP2 Equipment Grounding Bar Kit Installation Instructions - NHA33417 (pdf)
- PK15GTA Ground Bar Kit with LK100AN Lug Installation Instructions - 40273-980-02 (pdf)
- LK100AN Neutral Terminal Kit Installation Instructions - 40281-600-01 (pdf)
- QO 150–200 A Circuit Breaker and QO 225 A Sub-Feed Lug (Single-Phase Applications Only) Installation Instructions - 48840-225-01 (pdf)
- QO Circuit Breakers and Loadcentres (Illustrated) Brochure - QO+brochure+EN (pdf)
- Square D QO Load Centers and Circuit Breakers Brochure - 998-1170221_US_B (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- Changes to the 2020 National Electrical Code eGuide Brochure - 998-21037672_GMA-US_NEC+2020+eGuide (pdf)
- Square D Homeline Solar-Ready Combination Service Entrance Devices Brochure - 998-19598128_US_WEB (pdf)
- Square D An Overview of Significant Changes to the 2020 National Electrical Code for Dwellings Brochure - 998-20857871_GMA-US_CTA_RESI (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Square D QO and Homeline Combination Service Entrance Devices (CSEDs) - 4120CT2201 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
