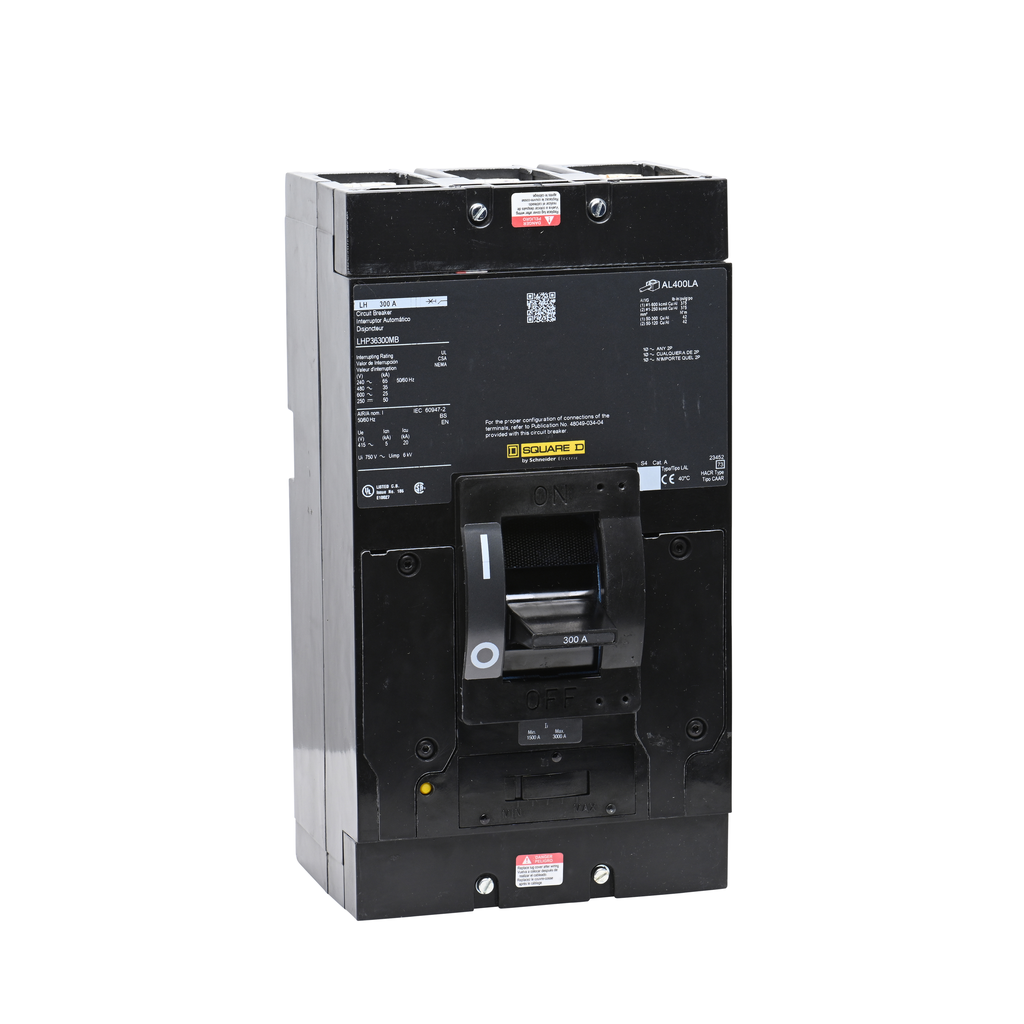

LHP36300MB
Circuit breaker, LH, 300A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic, short handle
Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads and short circuits. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Terminal Identifier | AL400LA |
| Height | 12.5 in |
| Tightening Torque |
|
| Breaking Capacity Code | H |
| Magnetic Tripping Current | 3000-3000 A |
| Operator Profile | short lever |
| Electrical Connection |
|
| Magnetic Hold Current | 1500 A |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | unit mount |
| Poles Description | 3P |
| Line Rated Current | 300 A |
| Width | 6 in |
| Wiring Configuration | 3-wire |
| Depth | 4 in |
| Country of Origin | Mexico |
| Width | 6 in |
| Height | 12.5 in |
| Trip Unit Technology | thermal-magnetic |
| Product Or Component Type | circuit breaker |
