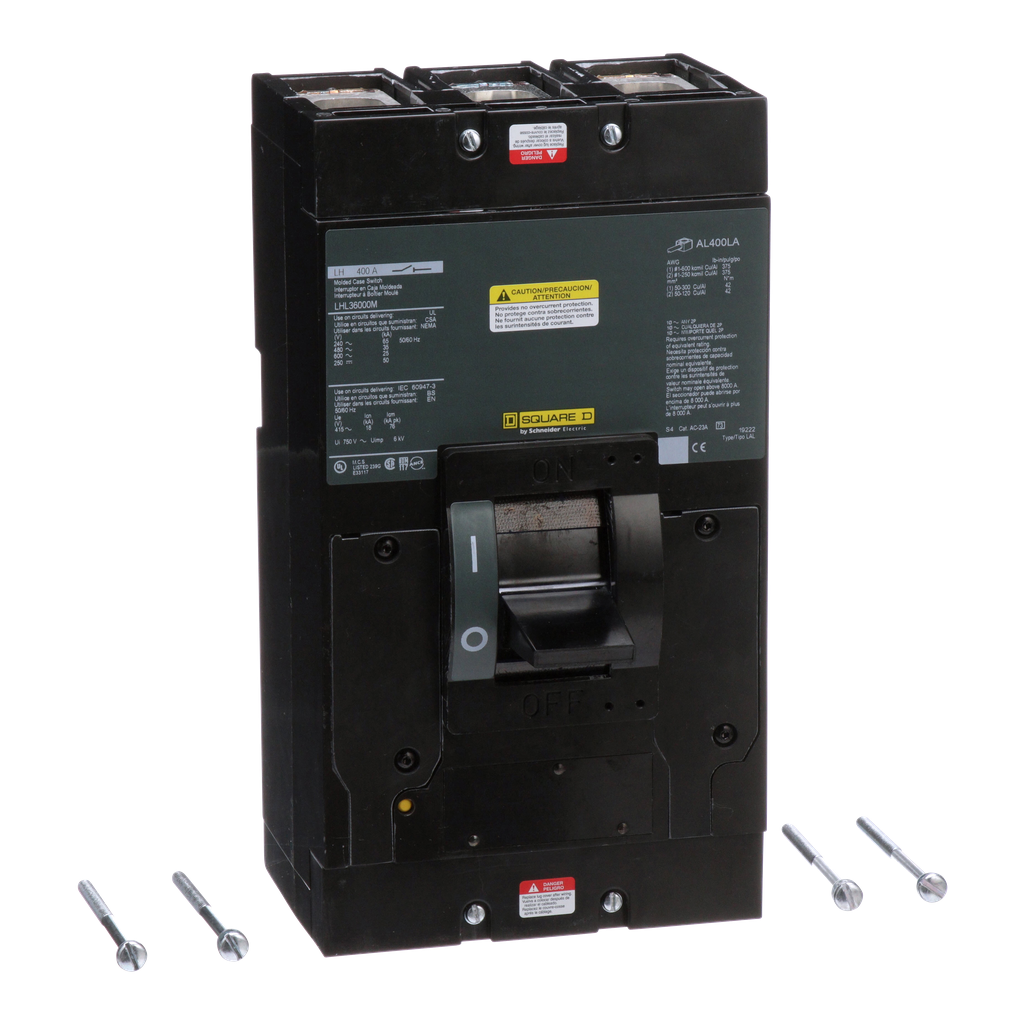

LHL36000M
Automatic switch, LH, 400A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic
Square D LH automatic molded case switches provide a disconnect point, allowing opening and closing under normal operating conditions. They open instantaneously at a factory preset magnetic trip point to protect the switch from high fault currents. This Square D LH automatic switch is a 3 pole unit mount, 400A and 600VAC, with lugs. It has a magnetic tripping current of 9600A. LH molded case switches are UL 489, CSA, IEC certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Terminal Identifier | AL400LA |
| Height | 11 in |
| Tightening Torque |
|
| Breaking Capacity Code | H |
| Magnetic Tripping Current | 9600-9600 A |
| Electrical Connection | lugs, load |
| Magnetic Hold Current | 8000 A |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | unit mount |
| Poles Description | 3P |
| Line Rated Current | 400 A |
| Width | 6 in |
| Depth | 5.84 in |
| Country of Origin | Mexico |
| Width | 6 in |
| Height | 11 in |
| Trip Unit Technology | thermal-magnetic |
| Product Or Component Type | circuit breaker |
