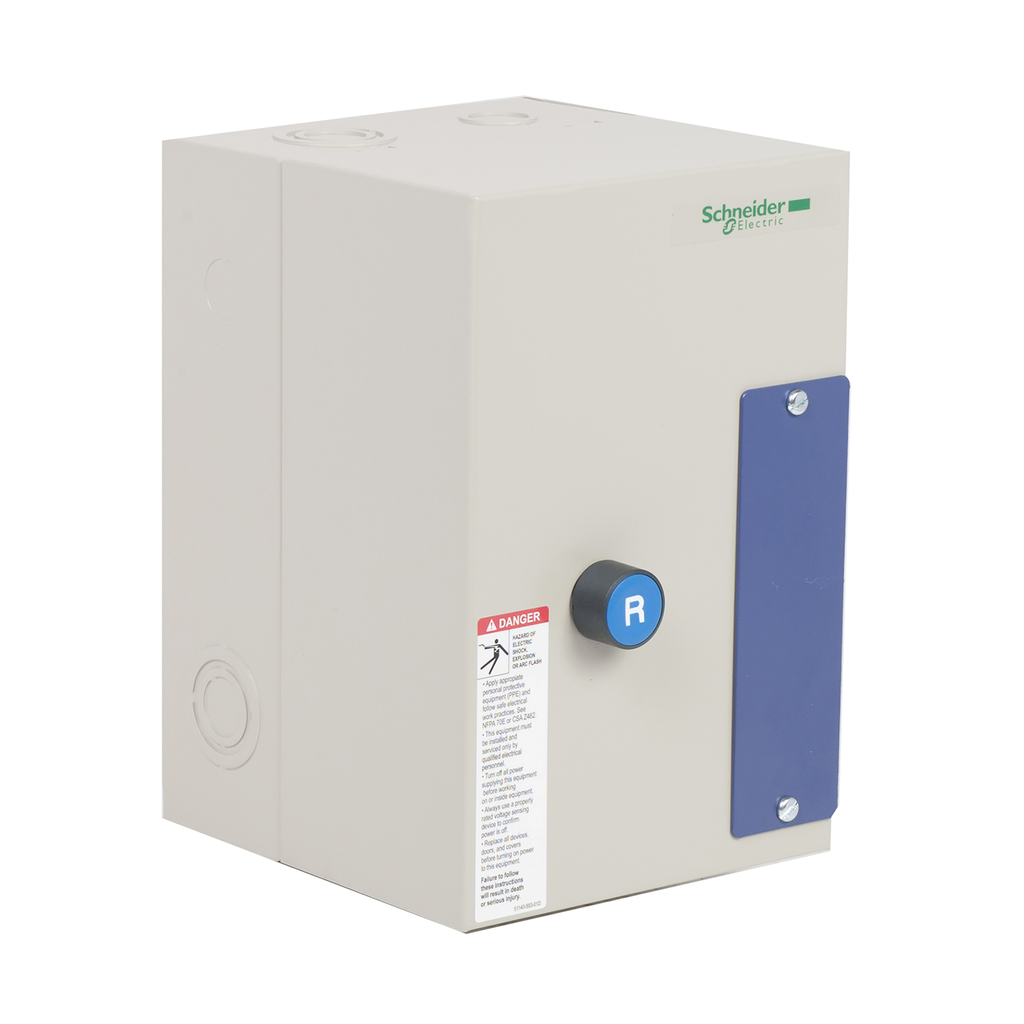

LE1D503A62OU70 - Full Voltage Non-Reversing Starter TeSys D, 3P, Type 1, 50A, 240VAC Coil

LE1D503A62OU70

Add to Quote Catalogue

Product Certifications	UL CSA IEC
Nema Degree Of Protection	NEMA 1 painted sheet steel
Warranty	18 months
China Rohs Regulation	X
Circularity Profile	N/A
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP111273EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
[Uc] Control Circuit Voltage	600 V AC
[Ue] Rated Operational Voltage	240 V AC 50/60 Hz
Height	355 mm
Auxiliary Contact Composition	1 NO + 1 NC
Maximum Horse Power Rating	3-3 hp 120 V AC, 1 phase 7.5-7.5 hp 240 V AC, 1 phase 15-15 hp 208 V AC, 3 phase 15-15 hp 230 V AC, 3 phase 40-40 hp 460 V AC, 3 phase 40-40 hp 575 V AC, 3 phase
Location Of Connection	line
Width	270 mm
Depth	188 mm
[Ie] Rated Operational Current Ac	80 A AC-1 50 A AC-3
Country of Origin	Mexico
Width	270 mm
Height	355 mm
Motor Starter Type	non reversing
Range Of Product	Instakits
Product Or Component Type	full voltage starter
