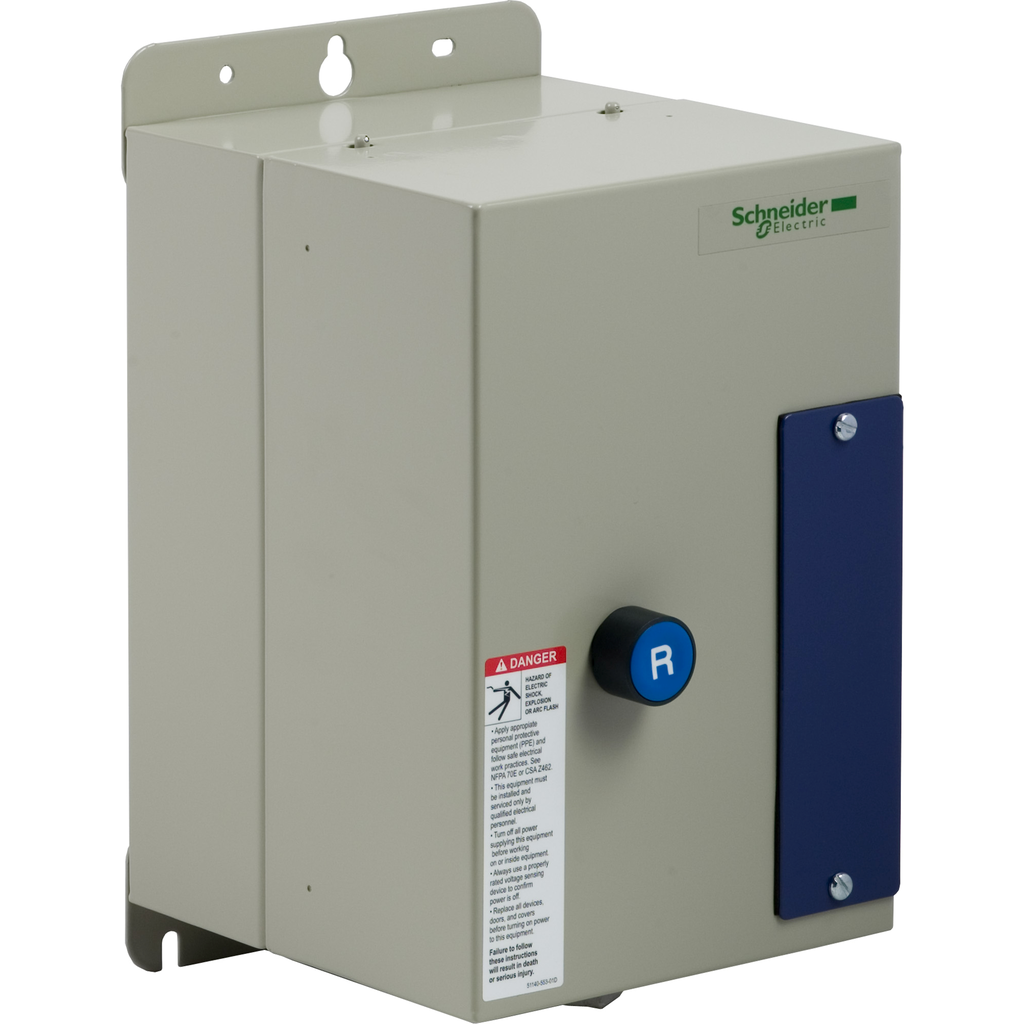

LE1D093A72OG70 – Full voltage nonversing starter, TeSys Deca, 3P, Type 12/3R, 9A, 120VAC coil, unfused
LE1D093A72OG70
Full voltage nonversing starter, TeSys Deca, 3P, Type 12/3R, 9A, 120VAC coil, unfused
Specifications
Product Certifications
  • IEC
  • UL
  • CSA
Nema Degree Of Protection NEMA 12 steel
Warranty 18 months
China Rohs Regulation X
Circularity Profile N/A
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP111273EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
Eu Rohs Directive Compliant
California Proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
[Uc] Control Circuit Voltage 600 V AC
[Ue] Rated Operational Voltage 120 V AC 50/60 Hz
Auxiliary Contact Composition 1 NO + 1 NC
Maximum Horse Power Rating
  • 0.3-0.3 hp 120 V AC, 1 phase
  • 1-1 hp 240 V AC, 1 phase
  • 2-2 hp 208 V AC, 3 phase
  • 2-2 hp 230 V AC, 3 phase
  • 5-5 hp 460 V AC, 3 phase
  • 7.5-7.5 hp 575 V AC, 3 phase
Location Of Connection line
[Ie] Rated Operational Current Ac 9 A
Country of Origin Mexico
Motor Starter Type non reversing
Range Of Product Instakits
Product Or Component Type full voltage starter
