LC3D18AU7 – TeSys Deca , star delta starter , 3 x 3P (3 NO) , 18 A , 240 V AC coil
LC3D18AU7
TeSys Deca , star delta starter , 3 x 3P (3 NO) , 18 A , 240 V AC coil

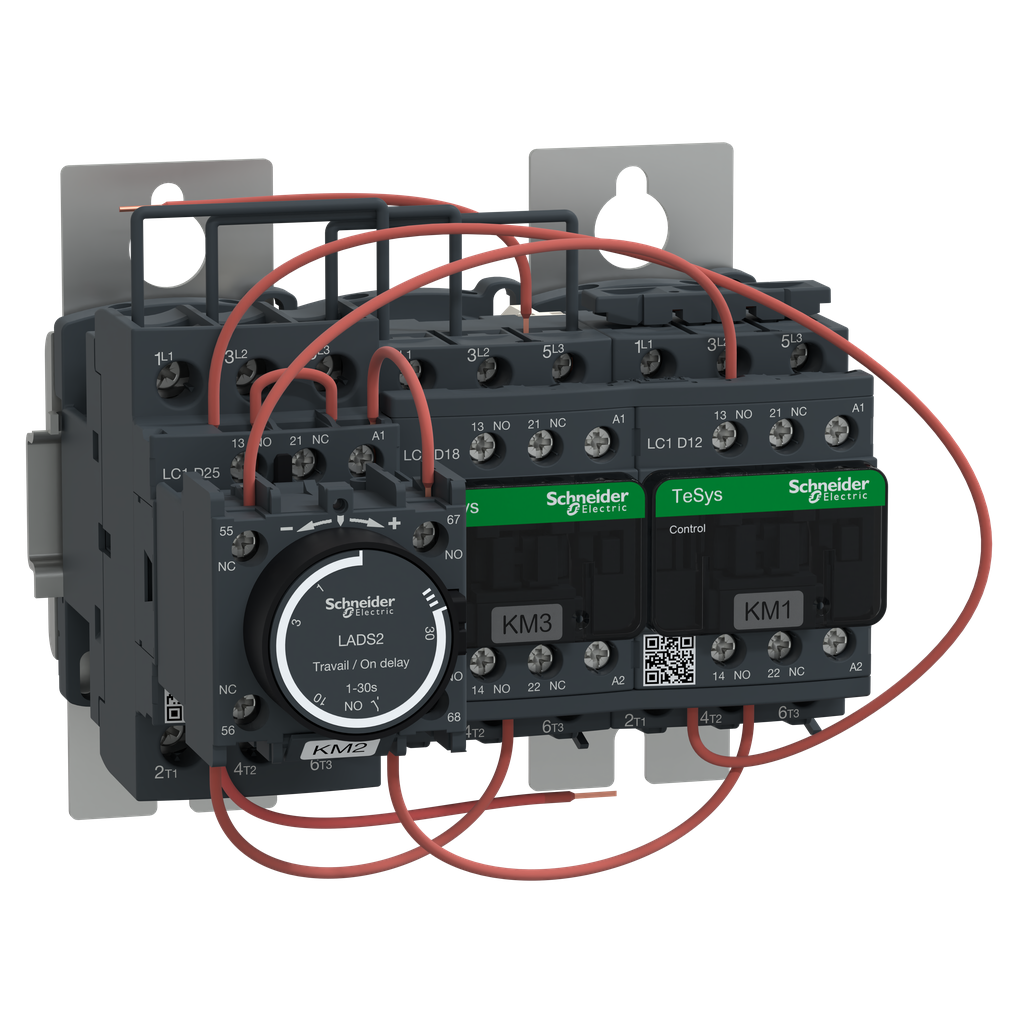

TeSys D pre-assembled star-delta starter, for motor control applications up to 18.5kW@400V in delta connection. Plate mounted starter, open version, composed of 3 contactors LC1D with 240V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec. For operating rates until 30 starts/hour, maximum starting time 30 sec. Compact assembly (144mm width), screw fixing. Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended. Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Mechanical Robustness
  • vibrations contactor open2 Gn, 5...300 Hz
  • vibrations contactor closed4 Gn, 5...300 Hz
  • shocks contactor open10 Gn for 11 ms
  • shocks contactor closed15 Gn for 11 ms
Ambient Air Temperature For Operation -40-70 °C at Uc
Climatic Withstand
  • IACS E10
  • IEC 60947-1 Annex Q category D
Pollution Degree 3
Insulation Resistance > 10 MOhm for signalling circuit
Flame Retardance V1 conforming to UL 94
Ambient Air Temperature For Storage -60-80 °C
Protective Treatment TH IEC 60068-2-30
Ip Degree Of Protection IP20 front face IEC 60529
Operating Altitude 9842.52 ft (3000 m) without derating
Fire Resistance 850 °C IEC 60695-2-1
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1501004
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile ENVEOLI1501004
Eu Rohs Directive Compliant
Non-Overlap Time
  • 1.5 ms on de-energisation between NC and NO contact
  • 1.5 ms on energisation between NC and NO contact
Minimum Switching Current 5 mA for signalling circuit
Height 124 mm
Control Circuit Voltage Limits
  • drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
  • operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
  • operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Starting Time 30 s
Net Weight 1.73 kg
Inrush Power In Va
  • 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
  • 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Connections - Terminals
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
  • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
  • power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible without cable end
  • power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end
  • power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: flexible with cable end
  • power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end
  • power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid without cable end
  • power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: solid without cable end
Coil Technology without built-in suppressor module
Maximum Operating Rate 30 cyc/h 60 °C
Signalling Circuit Frequency 25...400 Hz
Tightening Torque
  • power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm
  • power circuit 1.7 N.m screw clamp terminals Philips No 2
  • control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm
  • control circuit 1.7 N.m screw clamp terminals Philips No 2
  • power circuit 1.7 N.m screw clamp terminals pozidriv No 2
  • control circuit 1.7 N.m screw clamp terminals pozidriv No 2
Auxiliary Contacts Type
  • mechanically linked IEC 60947-5-1 3 x 1 NO + 1 NC
  • mirror contact IEC 60947-4-1 3 x 1 NC
Hold-In Power Consumption In Va
  • 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
  • 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Switching Voltage 17 V signalling circuit
Width 144 mm
Depth 143 mm
Heat Dissipation 2-3 W 50/60 Hz
Country of Origin France
Width 144 mm
Height 124 mm
Weight 1.73 kg
Product Certifications
  • CSA
  • RINA
  • GOST
  • DNV
  • GL
  • LROS (Lloyds register of shipping)
  • CCC
  • BV
  • UL
Interlocking Type mechanical
[Uc] Control Circuit Voltage 240 V AC 50/60 Hz
[Ue] Rated Operational Voltage power circuit <= 690 V AC 25...400 Hz
Standards
  • EN 60947-4-1
  • CSA C22.2 No 14
  • IEC 60947-4-1
  • UL 508
  • EN 60947-5-1
  • IEC 60947-5-1
  • IEC 60335-1
Pole Contact Composition 3 x 3 NO
Mounting Support plate
Control Circuit Type AC 50/60 Hz
Contactor Application motor control
Product Or Component Type star delta starter
Product Name TeSys Deca
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
Range
  • TeSys
  • TeSys Deca
Device Presentation pre-wired
Utilisation Category AC-3
[Ie] Rated Operational Current 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Auxiliary Contact Composition 1 NC KM1 star contactor
Electrical Durability 1.65 Mcycles 18 A AC-3 <= 440 V
Provided Equipment protective cover
Overvoltage Category III
Motor Power Kw
  • 11 kW 220/230 V AC 50/60 Hz
  • 22 kW 415 V AC 50/60 Hz
  • 22 kW 440 V AC 50/60 Hz
  • 18.5 kW 380/400 V AC 50/60 Hz
[Ui] Rated Insulation Voltage
  • power circuit 690 V IEC 60947-4-1
  • power circuit 600 V CSA
  • power circuit 600 V UL
  • signalling circuit 690 V IEC 60947-1
  • signalling circuit 600 V CSA
  • signalling circuit 600 V UL
Device Short Name LC3D
Poles Description 3 x 3P
