LC2K09105E7 - Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NO, 48VAC coil

LC2K09105E7

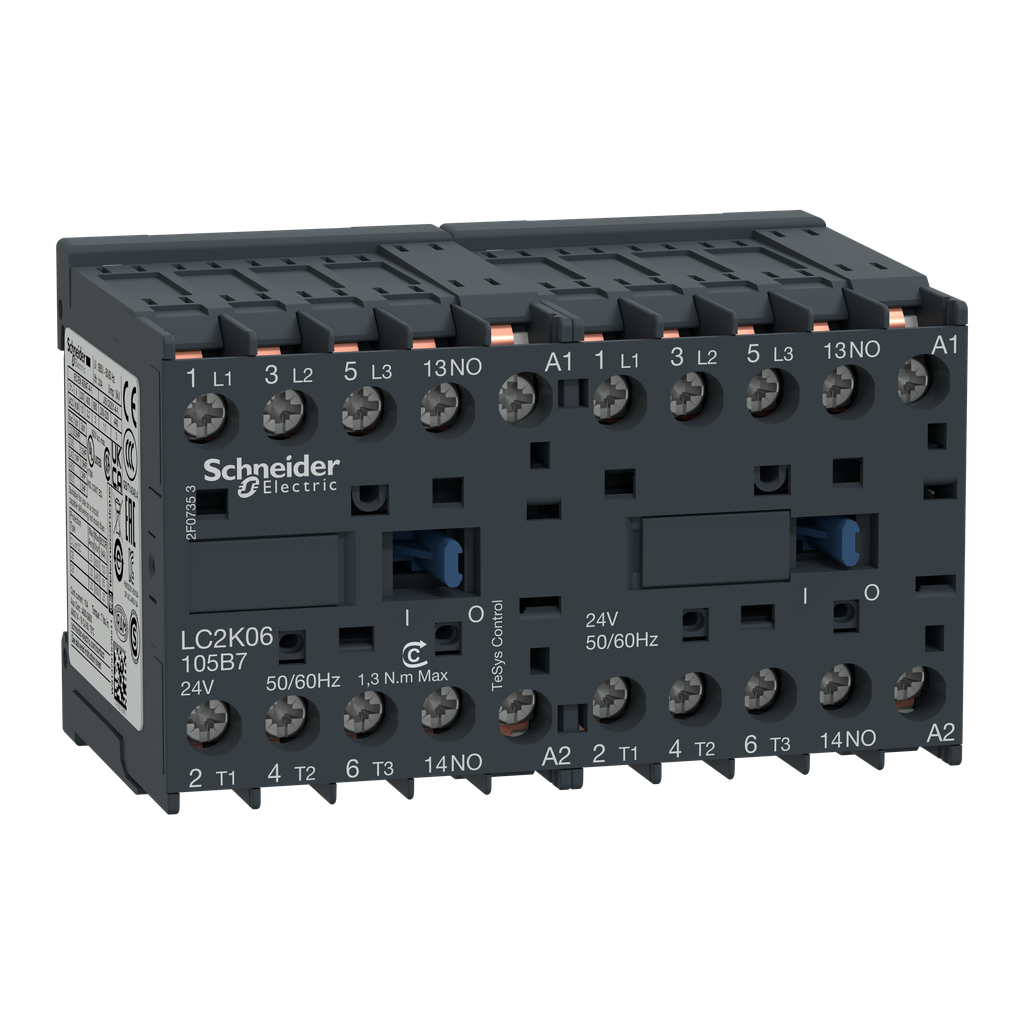

Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NO, 48VAC coil

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 48V 50/60Hz AC coils, 2NO built-in auxiliary contacts, connection by solder pins for printed circuit board. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With mechanical interlock (without electrical interlocking), this model has no pre-wired reversing power connections. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CB Scheme CCC UL CSA EAC CE UKCA
Interlocking Type	mechanical
[Uc] Control Circuit Voltage	48 V AC 50/60 Hz
[Ue] Rated Operational Voltage	power circuit 690 V AC 50/60 Hz signalling circuit <= 690 V AC 50/60 Hz
Average Impedance	3 mOhm - Ith 20 A 50 Hz power circuit
Auxiliary Contact Composition	1 NO
[Ith] Conventional Free Air Thermal Current	20 A 50 °C power circuit 10 A 50 °C signalling circuit
Standards	EN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1
Mounting Support	rail plate
Control Circuit Type	AC 50/60 Hz
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	motor control resistive load
Rated Breaking Capacity	110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
Product Or Component Type	reversing contactor
Irms Rated Making Capacity	110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
Product Name	TeSys K
Associated Fuse Rating	25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
[Uimp] Rated Impulse Withstand Voltage	8 kV
Connections - Terminals	solder pins 0.035 mm)
Range	TeSys
Pole Contact Composition	3 NO
Device Presentation	preassembled with reversing power busbar
Utilisation Category	AC-3 AC-4 AC-1 AC-3e
[Ie] Rated Operational Current	20 A 50 °C) <= 440 V AC AC-1 power circuit 16 A 70 °C) 690 V AC AC-1 power circuit 9 A<= 440 V AC AC-3 power circuit 9 A<= 440 V AC AC-3e power circuit
Maximum Operating Rate	3600 cyc/h
Electrical Durability	1.3 Mcycles 9 A AC-3 <= 440 V 1.3 Mcycles 9 A AC-3e <= 440 V 0.16 Mcycles 20 A AC-1 <= 690 V 0.02 Mcycles 54 A AC-4 <= 440 V
Mechanical Durability	5 Mcycles
Poles Description	3P
Operating Time	10...20 ms coil energisation and NO closing 10...20 ms coil de-energisation and NO opening
Overvoltage Category	III
Motor Power Kw	2.2 kW 220...230 V AC 50/60 Hz 4 kW 380...415 V AC 50/60 Hz 4 kW 440 V AC 50/60 Hz 4 kW 480 V AC 50/60 Hz 4 kW 500...600 V AC 50/60 Hz 4 kW 660...690 V AC 50/60 Hz
[Ui] Rated Insulation Voltage	power circuit 600 V UL 508 power circuit 690 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-5-1 signalling circuit 600 V UL 508 power circuit 600 V CSA C22.2 No 14 signalling circuit 600 V CSA C22.2 No 14
Device Application	control
Device Short Name	LC2K
[Icw] Rated Short-Time Withstand Current	90 A 50 °C - 1 s power circuit 85 A 50 °C - 5 s power circuit 80 A 50 °C - 10 s power circuit 60 A 50 °C - 30 s power circuit 45 A 50 °C - 1 min power circuit 40 A 50 °C - 3 min power circuit 80 A - 1 s signalling circuit 90 A - 500 ms signalling circuit 110 A - 100 ms signalling circuit 20 A 50 °C - >= 15 min power circuit
Warranty	18 months
Minimum Switching Current	5 mA signalling circuit
Control Circuit Voltage Limits	operational 0.8...1.15 Uc 50 °C) drop-out 0.2...0.75 Uc 50 °C)
Non Overlap Distance	0.5 mm
Insulation Resistance	> 10 MOhm signalling circuit
Inrush Power In Va	30-30 VA 20 °C)
Minimum Switching Voltage	17 V signalling circuit
Signalling Circuit Frequency	<= 400 Hz
Auxiliary Contacts Type	instantaneous 1 NO
Hold-In Power Consumption In Va	4.5-4.5 VA 20 °C)
Heat Dissipation	1.3-1.3 W
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503003EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1503003EN
Eu Rohs Directive	Compliant
Mechanical Robustness	shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Ambient Air Temperature For Operation	-25-50 °C
Height	58 mm
Net Weight	0.39 kg
Flame Retardance	V1 conforming to UL 94 requirement 2 conforming to NF F 16-101 requirement 2 conforming to NF F 16-102
Ambient Air Temperature For Storage	-50-80 °C
Protective Treatment	TC IEC 60068 TC DIN 50016
Ip Degree Of Protection	IP20 VDE 0106
Operating Altitude	6561.68 ft (2000 m) without derating
Width	90 mm
Depth	57 mm
